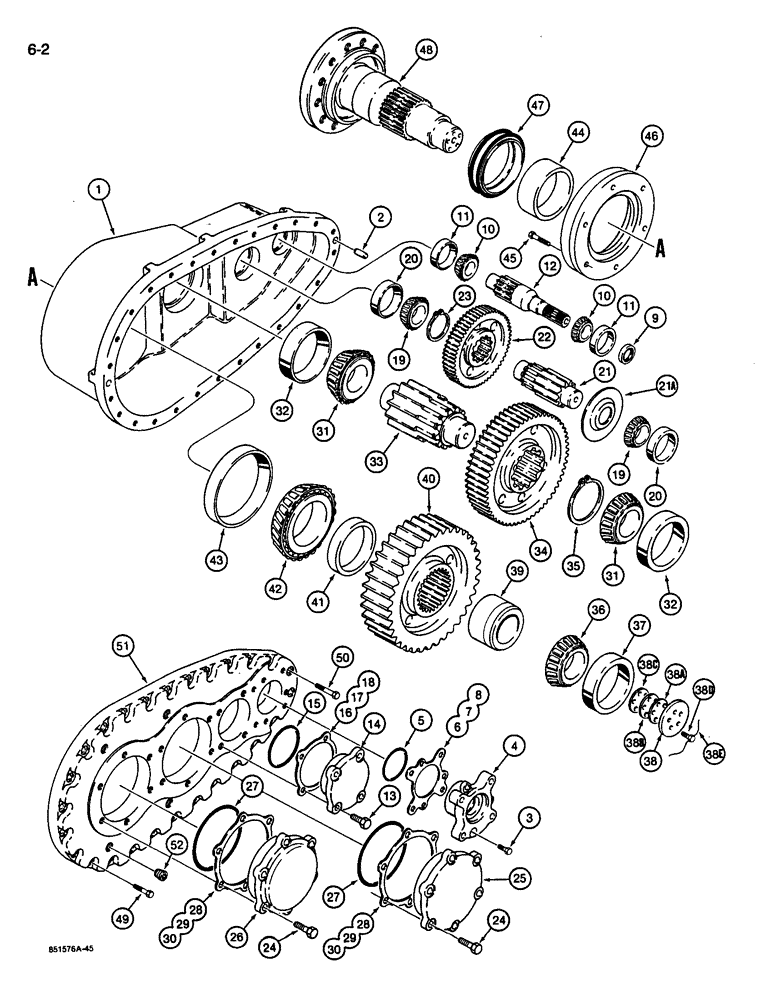

Запчасти Case 1187C (6-02) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

S619224

ASSEMBLY

TRANSMISSION ASSEMBLY - final drive, parts list Figure 6-2 and 6-4, for mounting hardware see Figure 5-2, Includes: Ref. 1 - 52

2шт.

1

S956526

HOUSING

- gear, final drive

1шт.

Must use Loctite P/N B17423

1шт.

2

S65037

DOWEL

PIN - dowel, 5/8 x 1-1/4 inch

2шт.

3

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

3шт.

4

S515461

COVER

- bearing, input shaft

1шт.

5

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

Cover -237, 70 Duro, 3.359" ID x .139" Thk

1шт.

6

S240543

SHIM,.127mm Thk

Input shaft bearing cover (.005") .127mm Thk

1шт.

7

S240544

SHIM,.177mm Thk

Input shaft bearing cover (.007") .177mm Thk

1шт.

8

S240545

SHIM,.508mm Thk

Input shaft bearing cover (.020") .508mm Thk

1шт.

9

F53634

SEAL

- oil, input shaft

1шт.

10

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING - tapered roller, input shaft

2шт.

11

165964R1

BEARING CUP

CUP -tapered roller bearing, input shaft

2шт.

12

S616978

SHAFT

- input, final drive

1шт.

13

813-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

4шт.

14

S240356

COVER

- bearing, first intermediate shaft

1шт.

15

S6108

O-RING,4.359" ID x 4.637" OD x 0.139"

- cover

1шт.

16

S240546

SHIM,.127mm Thk

Intermediate shaft bearing (.005) .127mm Thk

1шт.

17

S240547

SHIM,.177mm Thk

Intermediate shaft bearing, (.007") .177mm Thk

1шт.

18

S240548

SHIM,.508mm Thk

Intermediate shaft bearing (.020") .508mm Thk

1шт.

19

ST783A

TAPERED BEARING,2" ID x 3.6718" OD x 1.1875"

BEARING - tapered roller, first intermediate shaft

2шт.

20

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - bearing, first intermediate shaft

2шт.

21

S619222

SHAFT

- gear, first intermediate

1шт.

21a

S120544

PLATE

- oil slinger

1шт.

22

S616857

GEAR

- first intermediate

1шт.

23

100-11275

SNAP RING,#275, Ext

Ring, Snap, , gear #275, Ext

1шт.

24

613-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

12шт.

25

S515460

COVER

- bearing, second intermediate shaft

1шт.

26

S516871

COVER

- bearing, output shaft

1шт.

27

A40052

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

- bearing covers

2шт.

28

S240540

SHIM,.127mm Thk

Bearing covers (.005") .127mm Thk

1шт.

29

S240541

SHIM,.177mm Thk

Bearing covers (.007") .177mm Thk

1шт.

30

S240542

SHIM,.508mm Thk

Bearing covers, (.020") .508mm Thk

1шт.

B17423

LOCTITE

- red, 10 cc bottle. Parts shown must use Loctite seal compound

1шт.

S619224

ASSEMBLY

TRANSMISSION ASSEMBLY - final drive

2шт.

31

S118455

ROLLER BEARING,69.85 mm ID x 41.275 mm

BEARING - tapered roller, second intermediate shaft

2шт.

32

55446R1

CUP ASSY.

CUP - bearing, second intermediate shaft

2шт.

33

S619221

SHAFT

- gear, second intermediate

1шт.

34

S616858

GEAR

- second intermediate

1шт.

35

S118688

SNAP RING,#437, Ext

Ring, Snap, , gear #437, Ext

1шт.

36

S118459

ROLLER BEARING,69.85 mm ID x 46.672 mm

BEARING - tapered roller, output shaft, cover end

1шт.

37

18241H

BEARING, CUP,150.09mm OD x 36.51mm W

CUP - bearing, output shaft, cover end

1шт.

38

S242877

COVER

PLATE - retainer

1шт.

38a

S242878

SHIM,.127mm Thk

(.005"), Retainer to bearing .127mm Thk

1шт.

38b

S242879

SHIM

- retainer to bearing, .007 inch (0.177 mm) thick

1шт.

38c

S242880

SHIM

- retainer to bearing, .020 inch (0.508 mm) thick

1шт.

38d

S120018

BOLT

- hex, special

5шт.

38e

S120626

ELECTRICAL WIRE

WIRE - lock, retainer plate bolt, 1/32 (1 mm) diameter x 15 inch (381 mm) long, stainless steel, cut S120625, see below

1шт.

Part of bulk lock wire, P/N S120625

1шт.

39

S242881

SPACER

-, Serial Range: locknut-gear

1шт.

40

S619223

GEAR

- output

1шт.

41

S240589

SPACER

-, Serial Range: gear-bearing

1шт.

42

S118457

ROLLER BEARING,120.65 mm ID x 47.625 mm

BEARING - tapered roller, output shaft, seal end

1шт.

43

S118458

BEARING, CUP,206.375 mm OD x 34.925 mm

CUP - bearing, output shaft, seal end

1шт.

44

S240602

SPACER

- output shaft

1шт.

45

814-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 8.8

- hex, 12 - 1.75 x 55 mm

6шт.

46

S617019

COVER

RETAINER - seal

1шт.

Must use Loctite P/N B17423

1шт.

47

S240591

OIL SEAL

SEAL - oil, output shaft

1шт.

48

S618763

SHAFT

- output, with flange, drive sprocket

1шт.

49

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 40 mm

24шт.

50

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

- hex head, 12 mm - 1.75 x 60 mm (8.8)

2шт.

51

S956521

COVER

- gear, final drive housing

1шт.

Must use Loctite P/N B17423

1шт.

52

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket, 3/4 inch PT

4шт.

B17423

LOCTITE

- red, 10cc bottle, Includes Refs. 1, 46 and 51

1шт.

S120625

ELECTRICAL WIRE

WIRE - lock, bulk package, 1 lb. roll, 1/32 inch (1 mm) diameter, stainless steel, Includes: Ref. 38E

1шт.
