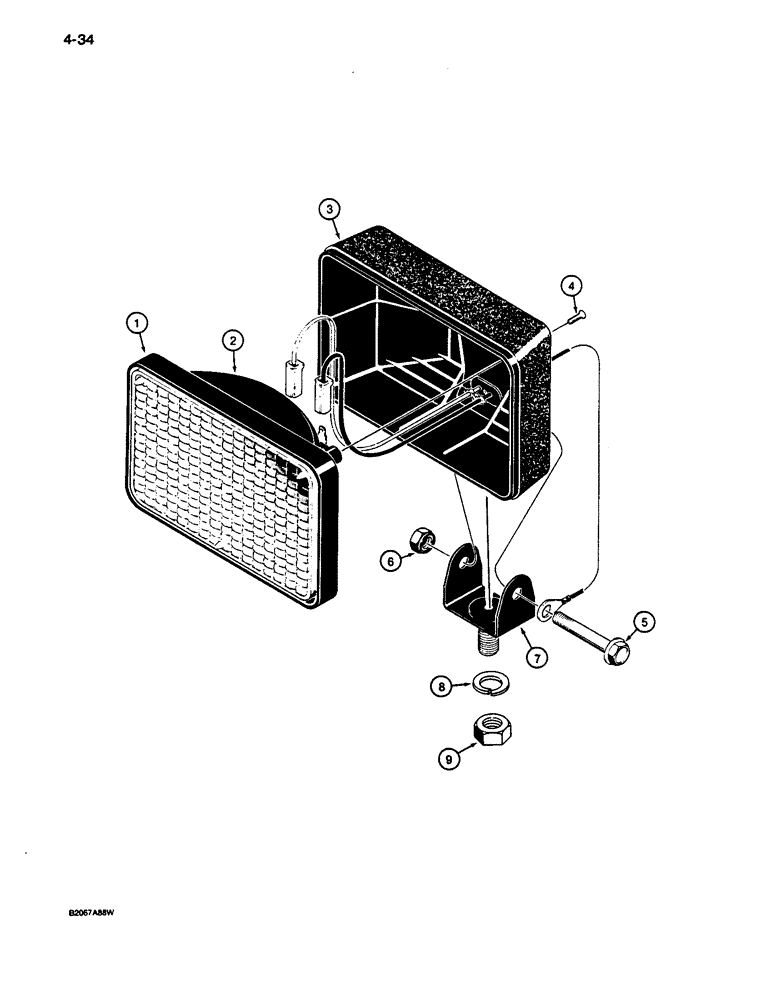

Запчасти Case 1187C (4-34) - WORK LAMP (04) - ELECTRICAL SYSTEMS

S516889

LAMP

ASSEMBLY - work, for mounting hardware see Figure 4-32, Includes: Ref. 1 - 9

3шт.

1

NSS

NOT SOLD SEPARAT

RETAINER - bulb

1шт.

2

F45305

HEADLIGHT

BULB - sealed beam

1шт.

3

NSS

NOT SOLD SEPARAT

SHELL - lamp

1шт.

4

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, flat slotted, No. 8-18 x 1/2 inch

2шт.

5

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - lamp pivot

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
