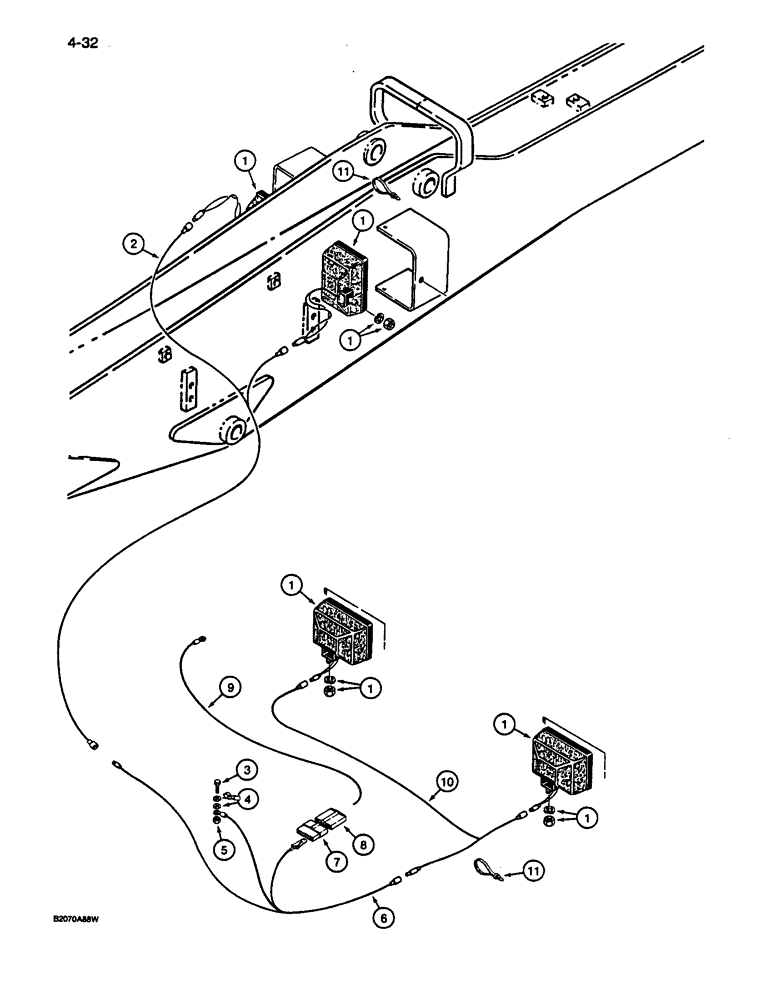

Запчасти Case 1187C (4-32) - ELECTRICAL CIRCUIT, WORK LAMPS AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

S516889

LAMP

ASSEMBLY - work, parts list Figure 4-34

4шт.

2

S242816

HARNESS

- upper, at boom lamps

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

5

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

1шт.

6

S242622

HARNESS

- lower, at switch and to turntable lamp harness

1шт.

7

223-166

CONNECTOR, ELEC

CONNECTOR - female, 1 contact, to work lamp switch

1шт.

8

223-155

ELEC CONNECTOR,Female, 1 Pin

CONNECTOR - male, 1 contact, to work lamp switch

1шт.

9

S210213

ELECTRICAL WIRE

WIRE - jump

1шт.

10

S243206

HARNESS

- lower, to turntable lamps

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
