Запчасти Case 1187C (4-28) - DEFROSTER FAN (04) - ELECTRICAL SYSTEMS

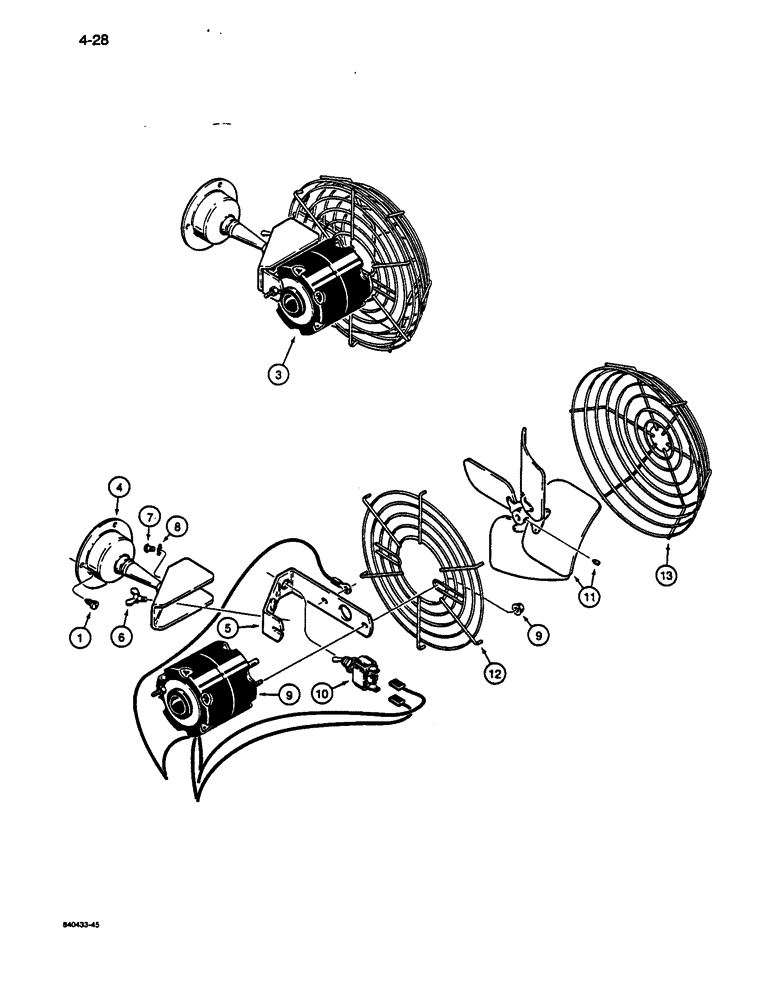

Схема запчастей Case 1187C - (4-28) - DEFROSTER FAN (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

264-2056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan head slotted, No. 10 NC x 3/8 inch

3шт.

3

S222133

FAN

ASSEMBLY - defroster, 24 volt, Includes: Ref. 4 - 13

1шт.

4

S63447

BRACKET

BASE - defroster fan

1шт.

5

S111275

BRACKET

-, Serial Range: motor-base

1шт.

6

N9045

SCREW,#12 - 24 x 3/8"

- wing, No. 12 - 24 NC

1шт.

7

70-1128

SCREW,Slotted Pan Hd, #12-24 x 1/2"

- machine, pan head slotted, No. 12 NC x 1/2 inch

1шт.

8

93-41023

LOCK WASHER,Ext Tooth, #12

WASHER - external tooth lock, No. 12

1шт.

9

S111274

MOTOR

- defroster fan, 24 volt

1шт.

10

S111270

SWITCH

- fan motor

1шт.

11

L30902

FAN

BLADE - fan

1шт.

12

L30904

GRILLE

GUARD - fan blade, rear

1шт.

13

L30907

GUARD

- fan blade, front

1шт.

Выбрано товаров: 12
