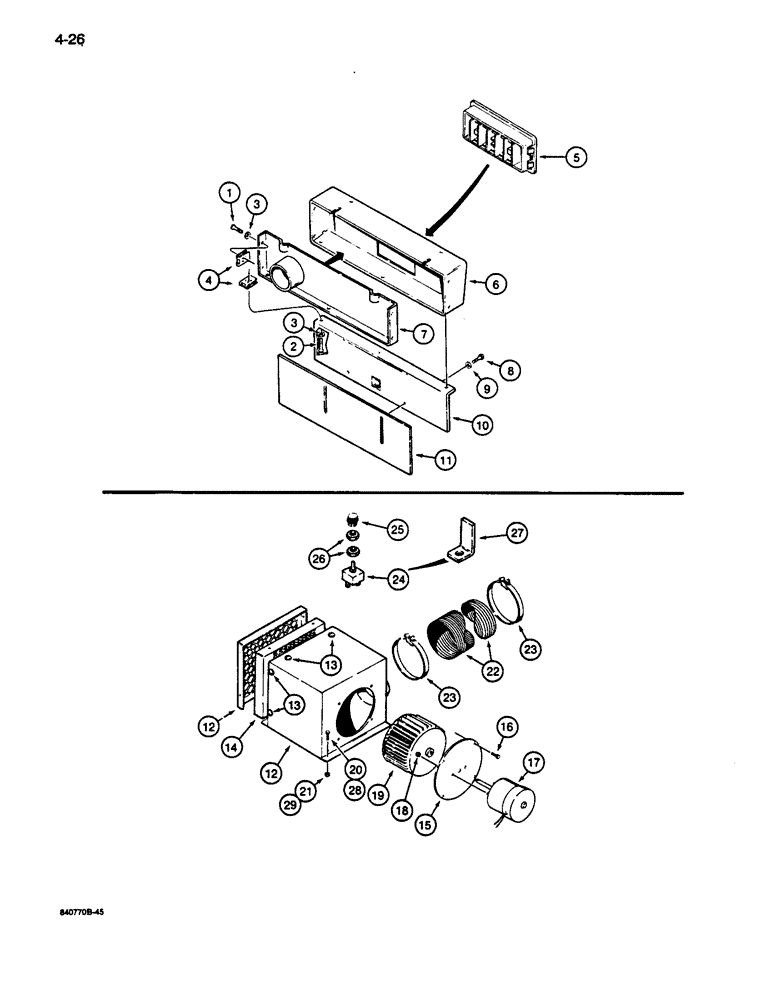

Запчасти Case 1187C (4-26) - HEATER SHROUDING AND HEATER (04) - ELECTRICAL SYSTEMS

1

142-102

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval head Phillips, No. 10 NC x 3/4 inch, heater shrouding

4шт.

2

142-105

SCREW,Cross Oval Hd, #10 - 24 x 1"

- machine, oval head Phillips, No. 10 NC x 1 inch, heater shrouding

3шт.

3

F64315

WASHER

- No. 10, special trim, heater shrouding

7шт.

4

S117167

CLIP

NUT - U-type, No. 10 NC, heater shrouding

7шт.

5

F89948

GUARD

LOUVER - heater shroud

1шт.

6

S618291

PANEL

SHROUD - heater, outer

1шт.

7

S618292

PANEL

SHROUD - heater, inner, shrouding

1шт.

8

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch, heater shrouding

2шт.

9

495-81108

WASHER,.281" x 1" x .109"

- flat, 9/32 x 1 x 1/8 inch, Heater shrouding

2шт.

10

S516015

PANEL

- seat, upper, heater shrouding

1шт.

11

S516013

PANEL

- seat, lower, heater shrouding

1шт.

S242826

HEATER

ASSEMBLY - logger cab, Includes: Ref. 12 - 26

1шт.

12

S118417

HOUSING

- heater

1шт.

13

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch, heater

10шт.

14

N13154

CORE

- heater

1шт.

15

S118422

PLATE

- motor mounting, heater

1шт.

16

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

- button head, 1/4 NC x 1/2 inch, heater

4шт.

17

S118418

MOTOR, ELECTRIC

MOTOR - blower wheel, 24 volt, heater

1шт.

18

225-14110

NUT,#10-24

Heater #10-24

2шт.

19

S118423

BLOWER

FAN - blower, heater

1шт.

20

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, Not required, See Refs. 28 and 29 for correct hardware, Heater

4шт.

21

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC, not required, see Refs. 28 and 29 for correct hardware, heater

4шт.

22

S118428

DUCT

-, Serial Range: heater-shroud

1шт.

23

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adj, 3-9/16 - 4-1/2 inch dia, heater duct to heater and shroud

2шт.

24

S118430

SWITCH

- heater, rotary

1шт.

25

S118431

KNOB

- heater switch

1шт.

26

425-157

JAM NUT,Jam, 7/16"-20, G5

Heater Jam, 7/16"-20, G5

2шт.

27

S120599

BRACKET

- heater switch

1шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, heater

4шт.

29

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC, heater

4шт.
