Запчасти Case 1187C (4-24) - HEATER AND HOSES (04) - ELECTRICAL SYSTEMS

1

S242826

HEATER

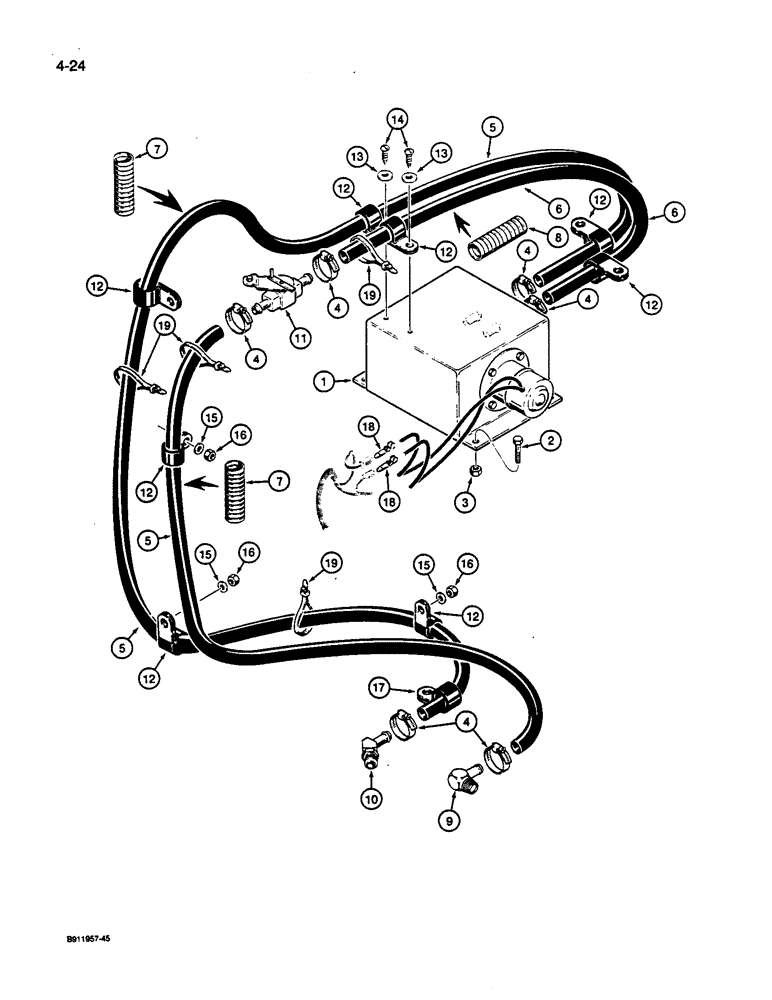

ASSEMBLY - cab, parts list Figure 4-26

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

3

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

4

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - adj, 9/16 - 1-1/16 inch dia

6шт.

5

S119266

HEATER HOSE,15.88mm ID x 3810mm L, SAE 20R3

15.88 mm ID x 3810.0 mm, SAE 20R3

2шт.

6

S119264

HEATER HOSE,15.88mm ID x 610mm L, SAE 20R3

Shutoff Valve to Heater 15.88 mm ID x 610.0 mm, SAE 20R3

1шт.

7

S119737

CONDUIT

- 147 inch (3734 mm) long, heater hoses, cut from S119717X bulk guard, see below

2шт.

8

S119267

CONDUIT

- 1 (25 mm) ID x 22 inch (560 mm) long, cut from S119717X bulk sleeve, see below

1шт.

9

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 45 degree, 5/8 stem end x 1/2 inch PT, heater supply hose

1шт.

10

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 90 degree, 5/8 stem end x 1/2 inch PT, heater returrn hose

1шт.

11

S223937

VALVE

- heater shutoff

1шт.

12

S15544

CLAMP,1 5/16", Insul, 3/8" Bolt

- P-type, hoses

8шт.

13

495-31022

WASHER,#10

2шт.

14

263-10512

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan head slotted, No. 10-16 x 3/4 inch

2шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

16

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

3шт.

17

49855

CLAMP

- P-type, hose, at throttle cable bracket

1шт.

18

223-191

TERMINAL CONNECTOR,14 - 16

TERMINAL - bullet, plug, 14-16 wire size

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

97252CX

HOSE

- bulk roll, 5/8 inch (16 mm) ID x 50 ft (15.24 cm) long

1шт.

S119717X

CONDUIT

- bulk roll, 1 (25 mm) ID x 192 inch (4878 mm) long

1шт.
