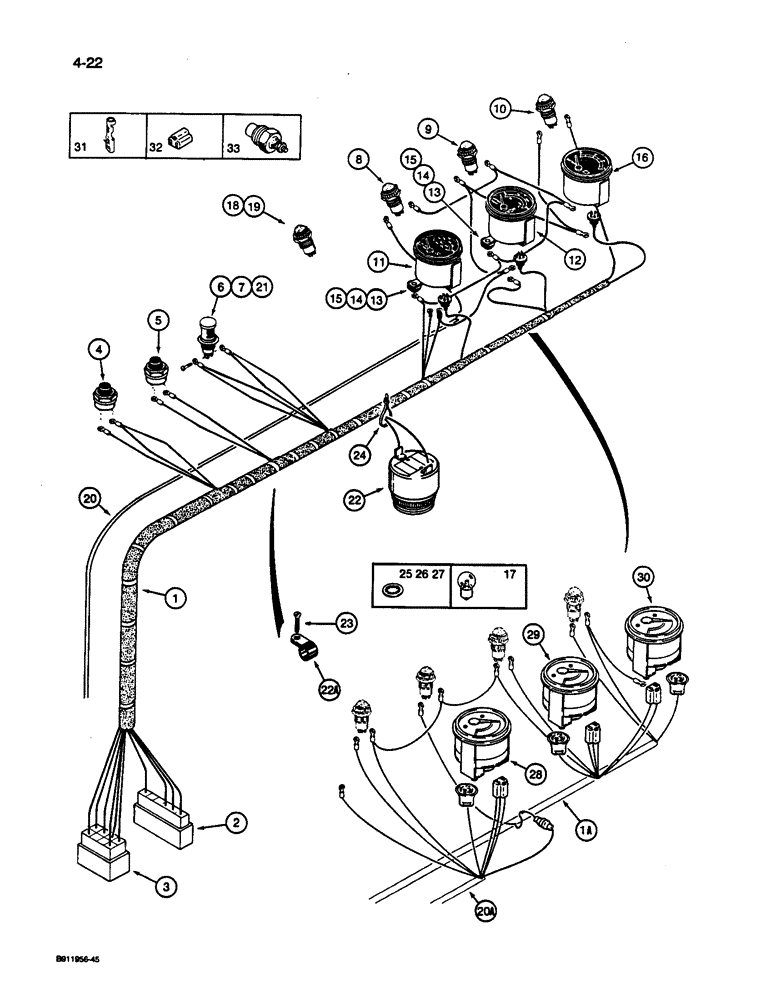

Запчасти Case 1187C (4-22) - ELECTRICAL HARNESS - RIGHT-HAND CONSOLE (04) - ELECTRICAL SYSTEMS

1

S618934

HARNESS

- right-hand console, Serial Range: -JAK0033197

1шт.

1a

S619677

HARNESS

- right-hand console, Includes: Ref. 2 and 3, Start Serial: JAK0033197

1шт.

2

223-170

CONNECTOR, ELEC

CONNECTOR - female, 6 contact

1шт.

3

223-172

CONNECTOR, ELEC

CONNECTOR - female, 8 contact

1шт.

4

S241920

SWITCH

- cold start button, if used

1шт.

5

S241920

SWITCH

- horn

1шт.

6

S239151

LIGHT

LAMP - panel

1шт.

7

A25258

BULB

- panel lamp and warning lamps, No. 1829

4шт.

8

S239150

LIGHT

LAMP - warning, hydraulic filter

1шт.

9

S242610

LIGHT

LAMP - warning, engine oil pressure

1шт.

10

S239148

LAMP

- warning, drive brake on

1шт.

11

S241733

GAUGE

- warning, hydraulic oil temperature, no longer available, for service order (1) L125856 gauge, Ref. 28, (3) L127569 terminals, Ref. 31, (1) L127566 connector, Ref. 32, and (1) L127531 sender, Ref. 33

1шт.

12

S239138

GAUGE

- engine temperature, no longer available, for service order (1) L125852 gauge, Ref. 29, (3) L127569 terminals, Ref. 31, (1) L127566 connector, Ref. 32, and (1) L127531 sender, Ref. 33

1шт.

13

S108406

RESISTOR

- engine temperature gauge, used with S239138 gauge, Serial Range: -JAK0033197

2шт.

14

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16"), Used with S108406 resistor, Ref. 13 Int Tooth, #10

2шт.

15

225-14210

NUT,#10-32

Used with S108406 resistor, Ref. 13 #10-32

2шт.

16

S239336

VOLTMETER

- battery, no longer available, for service order (1) L125857 voltmeter, Ref. 30, (1) L127569 terminal, Ref. 31, and (1) L127566 connector, Ref. 32

1шт.

17

S116543

BULB

- gauges and voltmeter

3шт.

18

S240123

LIGHT

LAMP - warning, low hydraulic oil level

1шт.

19

S119827

BULB

- warning lamp, No. 313

1шт.

20

S516962

HARNESS

- from hydraulic oil tank, Serial Range: -JAK0033197

1шт.

20a

S517979

HARNESS

- from hydraulic oil tank, Start Serial: JAK0033197

1шт.

21

70-2043

SCREW,Slotted Pan Hd, #4-40 x 3/16"

- machine, pan head slotted, No. 4 NC x 3/16 inch

1шт.

22

S242611

ALARM

BUZZER - low oil pressure

1шт.

22a

49833

CLAMP

- harness

1шт.

23

142-105

SCREW,Cross Oval Hd, #10 - 24 x 1"

- machine, oval head Phillips, No. 10 NC x 1 inch

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16"), Switch and Gauge Terminals Int Tooth, #10

1шт.

26

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - internal tooth lock, 5/32 inch, switch and gauge terminals

1шт.

27

93-21014

LOCK WASHER,Ext Tooth, #6

WASHER - internal tooth lock, 1/8 inch, switch and gauge terminals

1шт.

28

L125856

GAUGE

- warning, hydraulic oil temperature

1шт.

29

L125852

GAUGE

- engine temperature

1шт.

30

L125857

VOLTMETER

- battery

1шт.

31

L127569

SPADE TERMINAL,Female, 0.75 - 2 mm2

TERMINAL - harness

3-8шт.

32

L127566

CONNECTION

CONNECTOR - harness

1-3шт.

33

L127531

SENDER UNIT

SENDER - temperature, hydraulic and engine

1-2шт.
