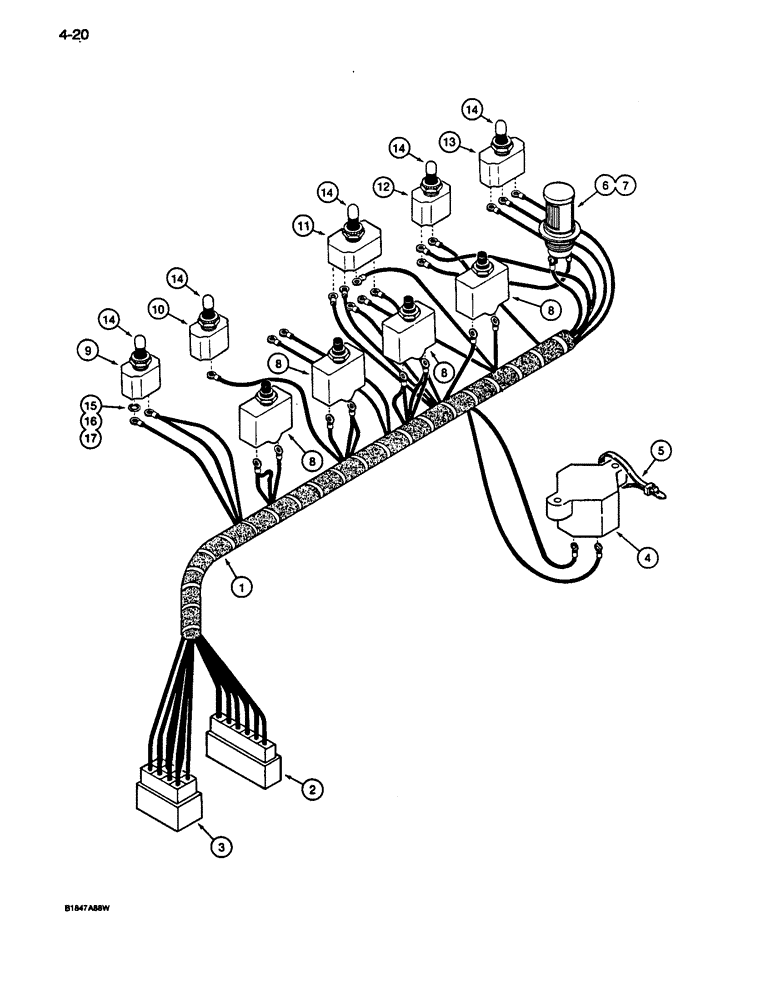

Запчасти Case 1187C (4-20) - ELECTRICAL HARNESS - LEFT-HAND CONSOLE (04) - ELECTRICAL SYSTEMS

1

S618938

HARNESS

- left-hand console, Includes: Ref. 2 and 3

1шт.

2

223-170

CONNECTOR, ELEC

CONNECTOR - female, 6 contact

1шт.

3

223-172

CONNECTOR, ELEC

CONNECTOR - female, 8 contact

1шт.

4

S117267

BREAKER

- circuit, windshield wiper

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

6

S239151

LIGHT

LAMP - panel

1шт.

7

A25258

BULB

- panel lamp

1шт.

8

S115714

BREAKER

- circuit, electrical circuits

4шт.

9

S88636

IGNITION SWITCH

SWITCH - drive range

1шт.

10

S88636

IGNITION SWITCH

SWITCH - work lamp

1шт.

11

S117009

SWITCH

- windshield wiper

1шт.

12

S88636

IGNITION SWITCH

SWITCH - panel lamp

1шт.

13

S108079

SWITCH

- drive brake

1шт.

14

S116909

BOOT

- switches

5шт.

15

93-81000

LOCK WASHER,Int Tooth, #10

WASHER - internal tooth lock, No. 10, switch terminals

1шт.

16

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - internal tooth lock, No. 8, switch terminals

1шт.

17

93-21014

LOCK WASHER,Ext Tooth, #6

WASHER - internal tooth lock, No. 6, switch terminals

1шт.
