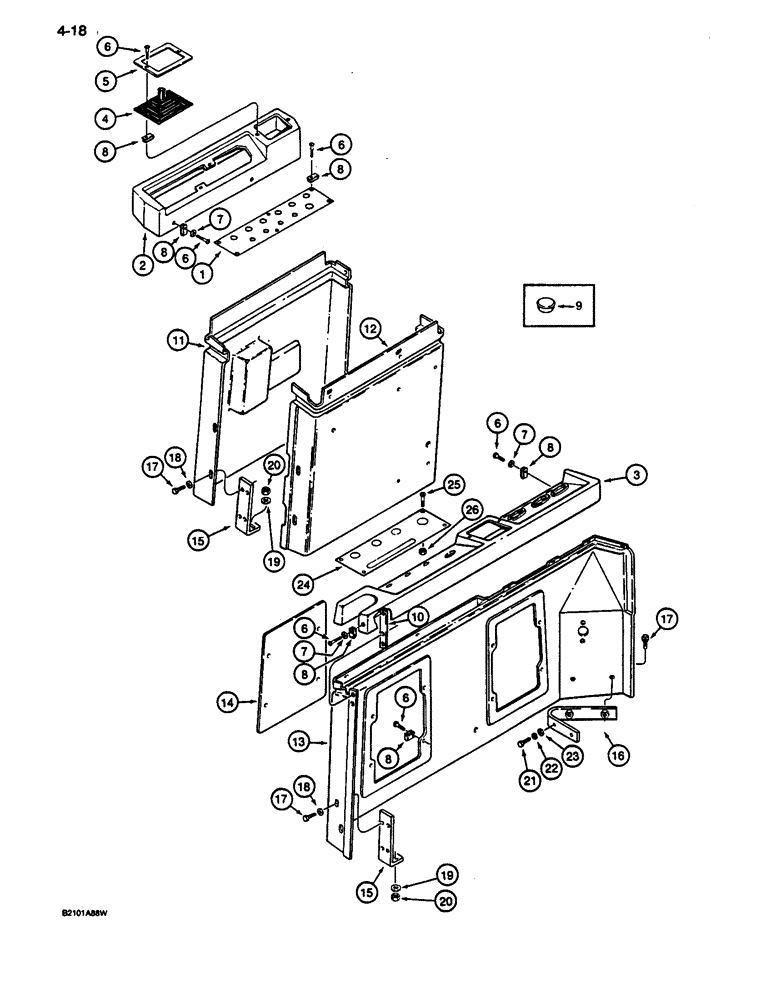

Запчасти Case 1187C (4-18) - INSTRUMENT PANELS (04) - ELECTRICAL SYSTEMS

1

321-6098

PANEL

DECAL - instrument panel, left-hand console, see Figure 9-64, Ref. 14

1шт.

2

S956663

COVER

- left-hand console

1шт.

3

S956924

COVER

- right-hand console

1шт.

4

S615715

BOOT

- control lever

2шт.

5

S239340

FLANGE

- boot retaining

2шт.

6

142-102

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval head Phillips, No. 10 NC x 3/4 inch

33шт.

7

F64315

WASHER

- No. 10, special

15шт.

8

S117167

CLIP

NUT - U-type, No. 10 NC

31шт.

9

353-404

PLUG,Dome, .500" hole, Nylon

Instrument panel Dome, .500" hole, Nylon

1шт.

10

S118869

BAR

- right-hand, Serial Range: cover-console

1шт.

11

S956664

PANEL

CONSOLE - left-hand, outside

1шт.

12

S956665

PANEL

CONSOLE - left-hand, inside

1шт.

13

S956925

PANEL

CONSOLE - right-hand

1шт.

14

S516014

COVER

- access, right-hand console

2шт.

15

S239381

BRACKET

- console support, rear

2шт.

16

S516665

BRACKET

- console support, right-hand front

1шт.

17

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

16шт.

18

495-81103

WASHER,.266" x 13/16" x .083"

- flat, 17/64 x 13/16 x 3/32 inch

6шт.

19

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch

2шт.

20

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

21

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

495-81103

WASHER,.266" x 13/16" x .083"

- flat, 17/64 x 13/16 x 3/32 inch

2шт.

24

321-6097

PANEL

DECAL - instrument panel, right-hand console, see Figure 9-64, Ref. 15

1шт.

25

142-102

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval head Phillips, No. 10 NC x 3/4 inch

4шт.

26

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.
