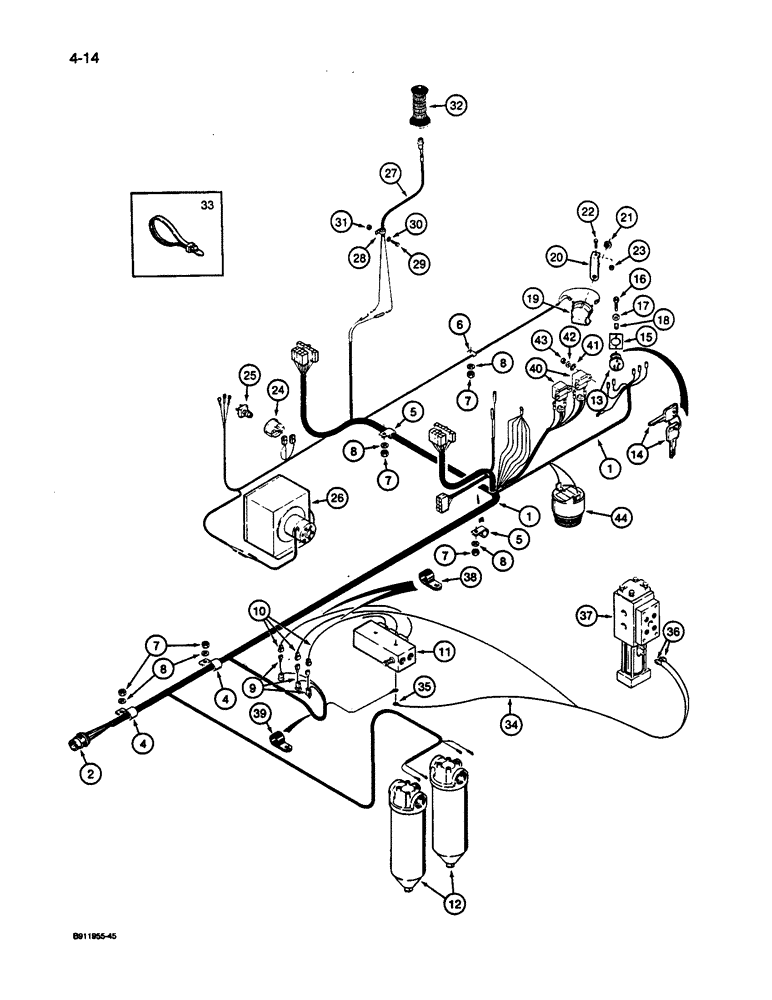

Запчасти Case 1187C (4-14) - ELECTRICAL HARNESS - CAB AND TURNTABLE (04) - ELECTRICAL SYSTEMS

1

S618923

HARNESS

- turntable, Includes: Ref. 2 - 4

1шт.

2

S120488

CONNECTOR,ELECTRIC

CONNECTOR - electrical, harness

1шт.

P/N S120488 is a 9 pin recepticle, 8 pins around the edges and one big one in the middle.

1шт.

3

S99523

CONNECTOR, ELEC

PLUG - connector, not shown

1шт.

3a

S107261

PLUG

- connector, not shown

1шт.

4

R14668

CLAMP

- harness, rear

2шт.

5

T50103

CLAMP

- harness, front

2шт.

6

A61275

CLIP

CLAMP - horn wire

1шт.

7

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

5шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

5шт.

9

S242833

HARNESS

WIRE - diode

3шт.

10

S117294

ROD, CONNECTING

CONNECTOR - solenoid control valve wires

3шт.

11

S516951

VALVE

ASSEMBLY - control, solenoid, parts list Figure 8-56

1шт.

12

S616066

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-70

2шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - key, electrical system, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

SWITCH - key, electrical system

1шт.

14

A77313

SET OF 2 KEYS

KEYS - switch, set of two keys; metal without padding

1шт.

15

S242795

PLATE

- switch mounting

1шт.

16

142-102

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval head Phillips, No. 10 NC x 3/4 inch

2шт.

17

F64315

WASHER

- special finishing, No. 10, not shown

2шт.

18

131-143

SPRING NUT,Tinn, U, #10-24

2шт.

19

D77650

HORN

- electrical

1шт.

20

L73799

BRACKET

- horn mounting

1шт.

21

L30866

LOCK NUT

- horn mounting

1шт.

22

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

23

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

24

S516994

GAUGE

HOURMETER - electric

1шт.

25

S118430

SWITCH

- heater, supplied with heater, see Figure 4-26, Ref. 24

1шт.

26

S242826

HEATER

ASSEMBLY - cab, parts list Figure 4-26

1шт.

27

S242036

SWITCH

ASSEMBLY - collector, includes wire, used on models with collector

1шт.

28

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- collector switch and wire, used on models with collector

1шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Used on models with collector

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Used on models with collector 3/8", SAE

1шт.

31

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC, used on models with collector

1шт.

32

S119987

GRIP

- left control lever, see Figure 9-4 for hand lever controls

1шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

34

S119525

CABLE

- 29.17 ft (8.89 m) long, collector to control valve, cut from S118482X bulk cable, see below, used on models with collector

1шт.

35

223-61

TERMINAL CONNECTOR,14 - 16

TERMINAL - eyelet, 14-16 wire x 3/8 inch screw size, cable at solenoid control valve, used on modes with collector

1шт.

36

223-92

TERMINAL

TERMINAL - female, 14-16 wire size, cable at solenoid valve, used on models with collector

2шт.

37

S516409

VALVE

ASSEMBLY - control, solenoid, parts list Figure 8-58, used on models with collector

1шт.

38

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- diode to monoblock valve

2шт.

39

S77322

CLAMP

- harness

1шт.

40

L115883

RELAY

- starter and cab

2шт.

41

93-81000

LOCK WASHER,Int Tooth, #10

WASHER - internal tooth lock, No. 10

4шт.

42

495-31022

WASHER,#10

4шт.

43

225-14110

NUT,#10-24

4шт.

44

S242611

ALARM

BUZZER - low engine oil pressure

1шт.

45

93-21014

LOCK WASHER,Ext Tooth, #6

WASHER - internal tooth lock, No. 6, not shown

2шт.

S118482X

CABLE

- bulk, 600 inch (15.24 m) long, 2 wire, 14 gauge

1шт.
