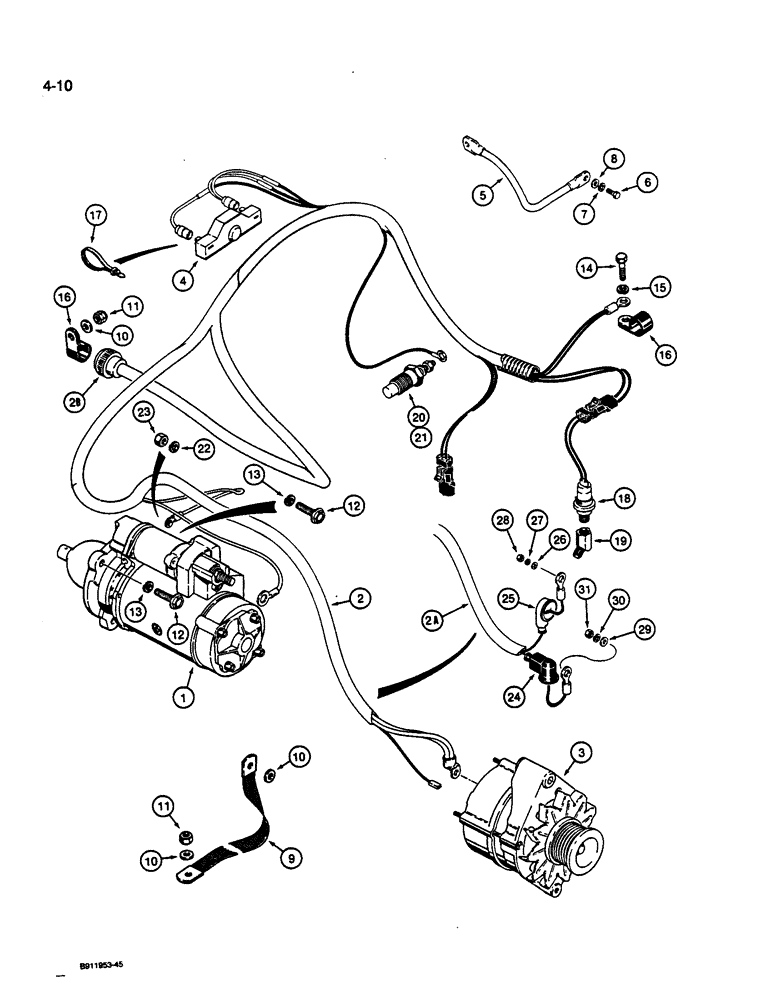

Запчасти Case 1187C (4-10) - ELECTRICAL CIRCUIT, ENGINE (04) - ELECTRICAL SYSTEMS

1

A187722

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list Figures 4-4 and 4-6

1шт.

1

AR187722

REMAN-STARTER

Remanufactured Starter

1шт.

1

AC187722

CORE-STARTER

Return Number

1шт.

2

S619393

HARNESS

HARNESS - engine, Serial Range: -JAK0033197

1шт.

2a

S619680

HARNESS

HARNESS - engine, Includes: Ref. 2B - 2D, Start Serial: JAK0033197

1шт.

2b

S120252

PLUG

CONNECTOR - harness

1шт.

2c

S107261

PLUG

PLUG - connector, not shown

1шт.

2d

453133C1

PLUG

PLUG - connector, not shown

1шт.

3

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, parts list Figures 4-2 and 4-3A

1шт.

4

F22316

RESISTOR,75 Ohms 0.2 Amps DC

RESISTOR - alternator

1шт.

5

L126351

CABLE

CABLE - ground, starter to right-hand side of engine block

1шт.

6

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

BOLT - hex, 12 - 1.75 x 30 mm

1шт.

7

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

WASHER - flat, 13.5 x 24 x 2.5 mm

1шт.

9

S229640

CABLE

CABLE - ground, flywheel, Serial Range: housing-turntable

1шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

WASHER, (Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

11

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

12

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

BOLT, Hex, M12 x 50, 8.8

3шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

14

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

BOLT, Hex, M10 x 25, 8.8, Full Thd

1шт.

15

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

1шт.

16

R14668

CLAMP

CLAMP - harness

2шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

18

A187723

SENDER UNIT

SENDER SWITCH - engine oil pressure

1шт.

19

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

ELBOW, , Street 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

20

S118976

TEMPERATURE SENDER

SENDER - engine temperature, no longer used, order L127531 sender, Ref. 21

1шт.

21

L127531

SENDER UNIT

SENDER SENDER - engine temperature

1шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

24

L126713

BOOT

BOOT - plastic, alternator

1шт.

25

S64612

BOOT

BOOT - alternator output terminal

1шт.

26

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

WASHER, M5 x 10 x 1

1шт.

27

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

28

825-1405

NUT,M5, Cl 8

NUT, M5, Cl 8

1шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

WASHER, M8 x 16 x 1.6

1шт.

30

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

31

825-1408

NUT,M8, Cl 8

Nut, M8, Cl 8

1шт.
