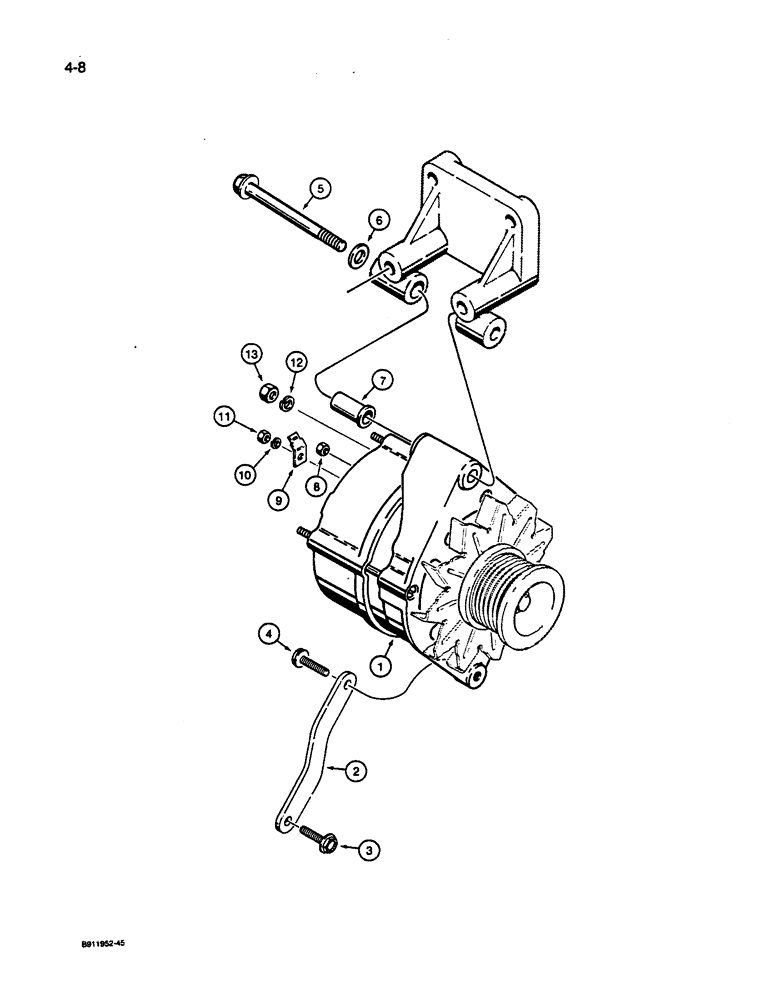

Запчасти Case 1187C (4-08) - ALTERNATOR MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - 24 volt, parts list Figures 4-2 and 4-3A

1шт.

2

J907673

SUPPORT

BRACE - lower, alternator mounting

1шт.

3

855-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

- hex flange, 8 - 1.25 x 30 mm, class 10.9

1шт.

4

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

- hex flange, 8 - 1.25 x 20 mm, class 10.9

1шт.

5

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

7

J902469

SPACER

- alternator mounting

1шт.

8

825-1406

NUT,M6, Cl 8

Used with A186124 alternator only M6, Cl 8

1шт.

9

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL - , regulator stud to harness, alternator replacement parts use to replace A186124 alternator with A187916 Male

1шт.

10

892-11005

LOCK WASHER,M5

WASHER, LOCK, , Alternator replacement parts use to replace A186124 alternator with A187916 alternator M5

1шт.

11

825-1405

NUT,M5, Cl 8

Alternator replacement parts use to replace A186124 alternator with A187916 alternator M5, Cl 8

1шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Alternator replacement parts use to replace A18612 alternator with A187916 alternator M8

1шт.

13

825-1408

NUT,M8, Cl 8

Alternator replacement parts use to replace A186124 alternatro with A187916 alternatro M8, Cl 8

1шт.
