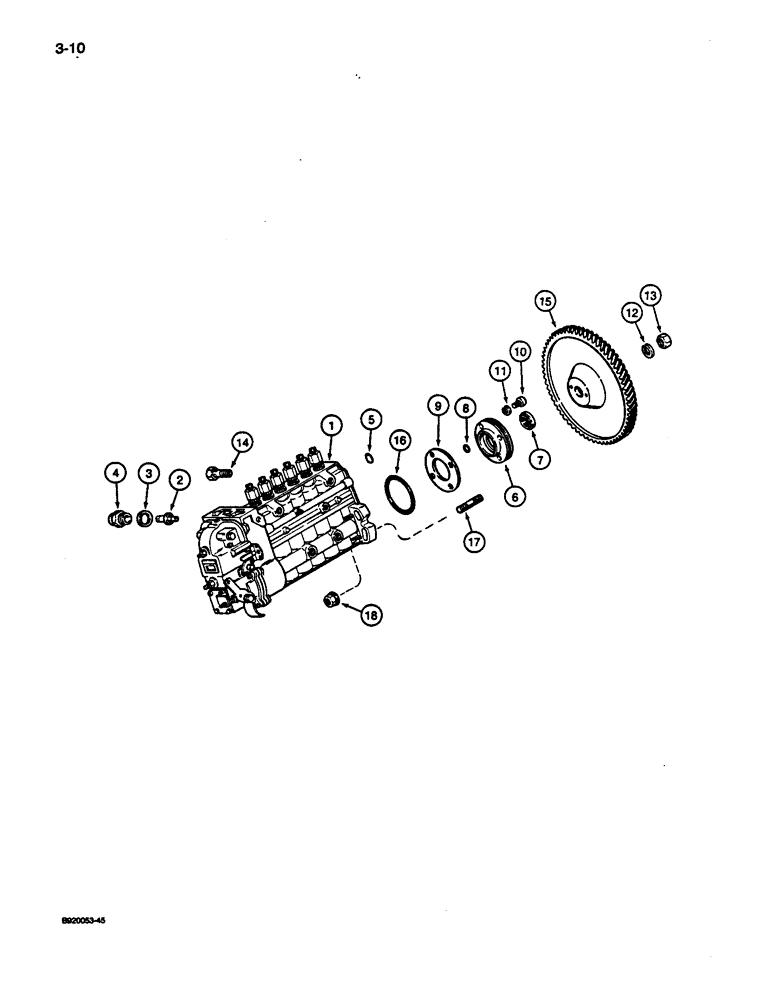

Запчасти Case 1187C (3-10) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE (03) - FUEL SYSTEM

JR915961

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured, North America only, no longer available, for service order JR918664, parts list Figure 3-12, Includes: Ref. 2 - 14

1шт.

JC915961

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump core for credit, no longer available, use JC913339 for return number, Includes: Ref. 2 - 14

1шт.

1

J915961

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, no longer available, for service order J918664, parts list Figure 3-12, Includes: Ref. 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

PIN - timing

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - plug

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - timing

1шт.

5

J910501

O-RING

- oil port

1шт.

6

NSS

NOT SOLD SEPARAT

HUB - drive

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - oil hub

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - hub

4шт.

9

NSS

NOT SOLD SEPARAT

SHIM - hub

1шт.

10

NSS

NOT SOLD SEPARAT

SCREW - slotted

4шт.

11

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

12

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

13

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

14

NSS

NOT SOLD SEPARAT

BOLT - banjo

1шт.

15

J912614

GEAR

- fuel pump

1шт.

16

A41856

O-RING,3mm Thk x 75mm ID

- sealing

1шт.

17

J907978

STUD

- pump mounting

4шт.

18

J902662

FLANGE NUT

- hex, flange, 10 mm

4шт.
