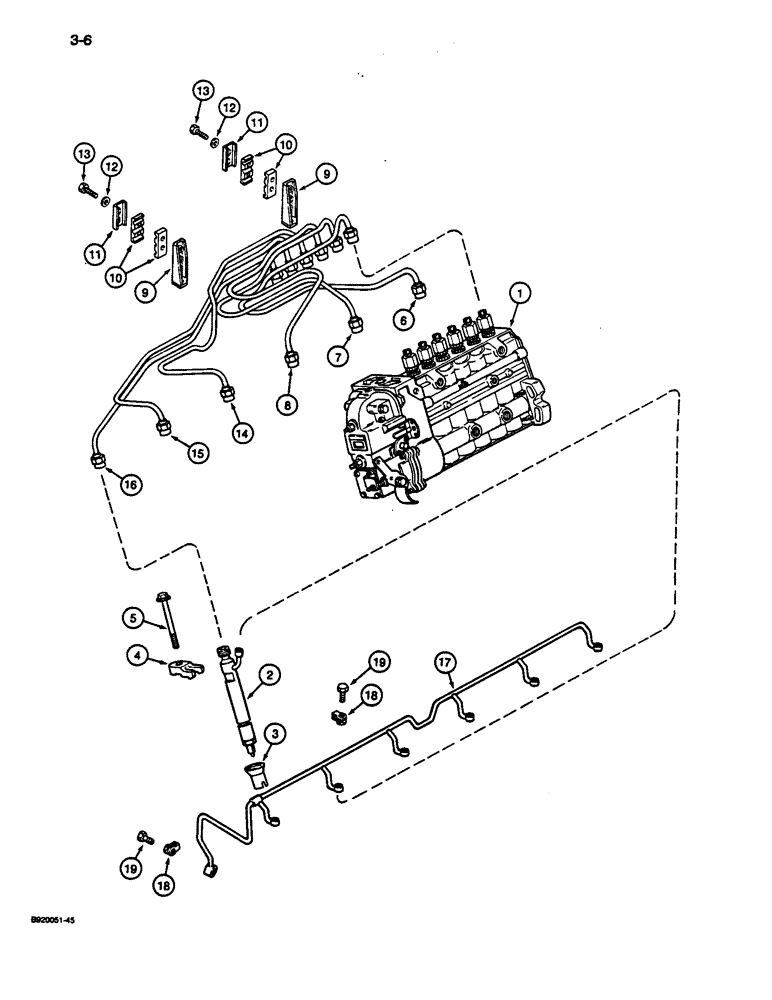

Запчасти Case 1187C (3-06) - FUEL INJECTION SYSTEM, 6T-830 ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, for correct pump see Figure 3-10 or 3-12

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, see Figure 3-14

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- injector

6шт.

4

J910279

CLAMP

- injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 80 mm, replaces J902112

6шт.

6

J906783

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 1 cylinder

1шт.

7

J906784

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 2 cylinder

1шт.

8

J906785

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 3 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, no longer available, components sold separately, Includes: Ref. 9 - 13

2шт.

9

J917776

BRACE

BRACKET - tube

1шт.

10

J917747

CLAMP

- tube

2шт.

11

J904519

SUPPORT

BRACE - tube

1шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaces J903609 Hex Hd, M5 x .8 x 20, w/LW

2шт.

13

J903723

WASHER

- flat, 6 x 10 x 1 mm

2шт.

14

J910521

FUEL TUBE

TUBE - fuel, No. 4 cylinder

1шт.

15

J906787

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 5 cylinder

1шт.

16

J906788

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 6 cylinder

1шт.

17

J915695

MANIFOLD

- fuel drain, replaces J911246

1шт.

18

J903380

SEAL

- connector

6шт.

19

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.
