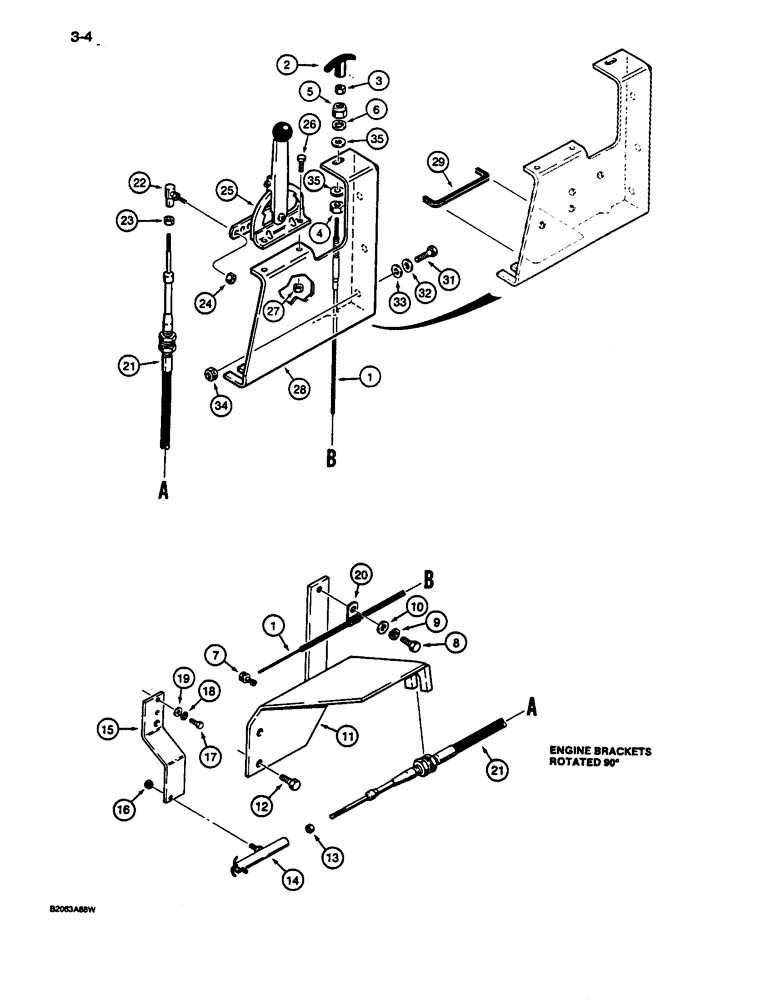

Запчасти Case 1187C (3-04) - THROTTLE AND FUEL SHUTOFF CONTROLS (03) - FUEL SYSTEM

S231430

CABLE

ASSEMBLY - fuel shutoff, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

CABLE - fuel shutoff

1шт.

2

L32679

HANDLE

- T-type, service replacement

1шт.

3

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

1шт.

4

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

5

L32866

SEAL

NUT - hex, special, includes seals

1шт.

6

493-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8 inch

1шт.

7

A59101

PIVOT

- stop, cable

1шт.

8

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

11

S517418

BRACKET

- throttle cable

1шт.

12

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

13

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

1шт.

14

S243157

BALL JOINT

JOINT - ball

1шт.

15

S517528

LEVER

BRACKET - throttle cable bracket support

1шт.

16

131-498

LOCK NUT,1/4"-28, GB

NUT - light hex, self-locking, 1/4 inch NF

1шт.

17

613-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- hex, 6 - 1 x 16 mm

2шт.

18

892-10006

LOCK WASHER,M6

WASHER - lock, 6 mm

2шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

20

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- fuel shutoff cable

1шт.

21

S238507

CABLE

- throttle

1шт.

22

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, throttle cable

1шт.

23

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

1шт.

24

131-498

LOCK NUT,1/4"-28, GB

NUT - light hex, self-locking, 1/4 inch NF

1шт.

25

S514567

LEVER

- throttle

1шт.

26

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

27

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

2шт.

28

S516920

BRACKET

- throttle lever mounting

1шт.

29

S120011

SEAL - 6 inch (152 mm) long, rubber, throttle lever mounting bracket, cut from S118467X bulk seal, see below

1шт.

30

B504266

ADHESIVE

- insulation, 5 oz. tube, used to attach Ref.m 29 seal to Ref. 28 mounting bracket, not shown

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

32

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

34

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

3шт.

35

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

S118467X

SEAL

- bulk, 120 inch (3048 mm) long

1шт.
