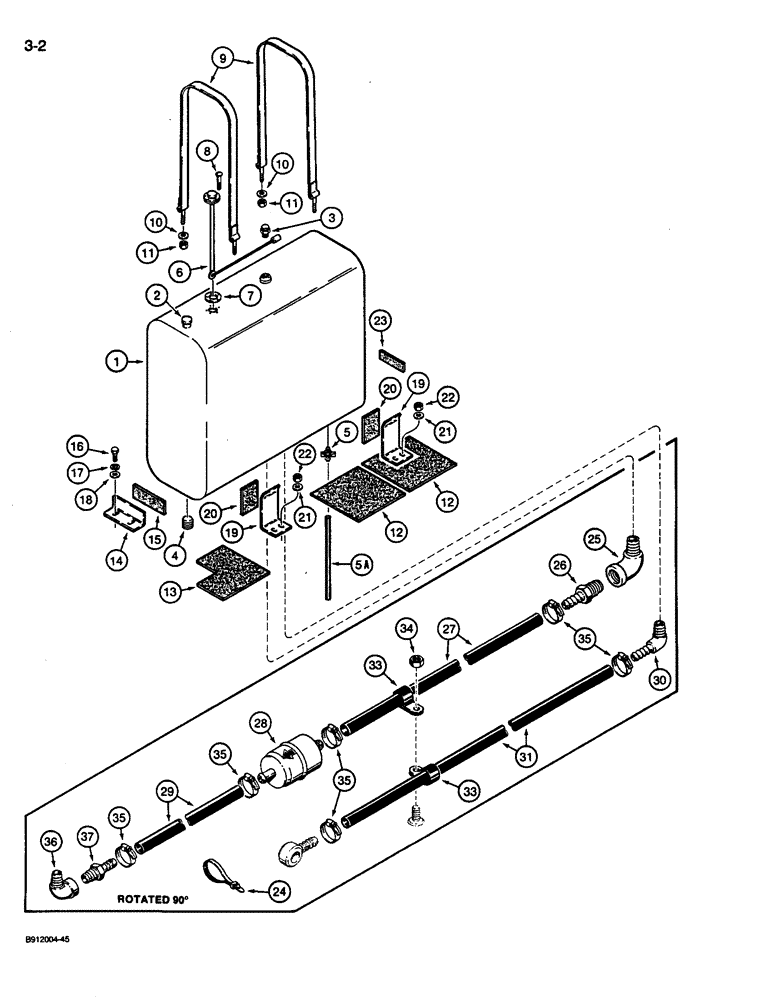

Запчасти Case 1187C (3-02) - FUEL TANK AND LINES (03) - FUEL SYSTEM

S618759

FUEL TANK

TANK ASSEMBLY - fuel, 122 gallon capacity, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - fuel

1шт.

2

S66921

FILLER CAP

CAP - fuel tank

1шт.

3

S120420

PLUG

- vented, with filter

1шт.

4

221-848

PLUG,Hex Soc, 1 1/2"-11 1/2

- hex socket, 1-1/2 inch PT

1шт.

5

A23656

COCK, DRAIN

VALVE - fuel tank drain

1шт.

5a

S119631

HOSE,0.31" ID x 18.00", SAE 30R2 Type 1

Drain Valve, Cut from Bulk Hose, See below 0.31" ID x 18.00", SAE 30R2 Type 1

1шт.

6

S241288

GAUGE

- fuel level

1шт.

7

S49745

GASKET

GASKET - fuel level gauge

1шт.

8

59-11012

SCREW,Slotted Pan Hd, #10-32 x 3/4"

- machine, pan head slotted, No. 10 NF x 3/4 inch

5шт.

9

S516877

STRAP

- mounting, fuel, Serial Range: tank-turntable

2шт.

10

S95569

WASHER

- flat, special, hardened

4шт.

11

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

4шт.

12

S242597

PAD

- tank bottom, square

2шт.

13

S242596

PAD

- tank bottom, with corner notch

1шт.

14

S242600

ANGLE

BRACKET - tank retainer, end

1шт.

15

S120178

PAD

- end retainer bracket

1шт.

16

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

18

S95569

WASHER

- flat, special, hardened

2шт.

19

S242601

BRACKET

- tank retainer, side

2шт.

20

S120175

PAD

- side retainer bracket and brackets on turntable

4шт.

21

S95569

WASHER

- flat, special, hardened

4шт.

22

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

4шт.

23

S120176

PAD

- end

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degree, 1/2 to 7/8 inch thread, at tank

1шт.

26

220-7

FITTING

ADAPTER - straight, 3/8 inch barb end x PT, at tank

1шт.

27

S119415

HOSE - 3/8 (9 mm) ID x 96 inch (2438 mm) long, fuel supply, cut from S118400X bulk hose, see below

1шт.

28

D139225

FILTER, FUEL

FILTER - fuel, in-line

1шт.

29

S119736

HOSE,0.38" ID x 18.00", SAE 30R2 Type 3

Fuel filter to engine, Cut from S118400X bulk hose, See below 0.38" ID x 18.00", SAE 30R2 Type 3

1шт.

30

217-295

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 5/16 stem end x 1/4 inch PT, at tank

1шт.

31

S119323

FUEL HOSE,0.31" ID x 94.00", SAE 30R2 Type 1

0.31" ID x 94.0", SAE 30R2 Type 1 - Fuel Return, Cut from Bulk Hose, See below

1шт.

33

NLS

NO LONGER SERVICED

- hose

6шт.

34

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

3шт.

35

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj. #4, 0.25/0.62 Type F Worm

6шт.

36

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree, 1/4 inch PT x female PT, at engine

1шт.

37

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

ADAPTER - straight, 3/8 barb end x 1/4 inch PT

1шт.

S120317X

HOSE

- bulk, 5/16 (8 mm) ID x 300 inch (7620 mm) long

1шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

HOSE - bulk, 3/8 (9 mm) ID x 25 foot (7.62 m) long

1шт.
