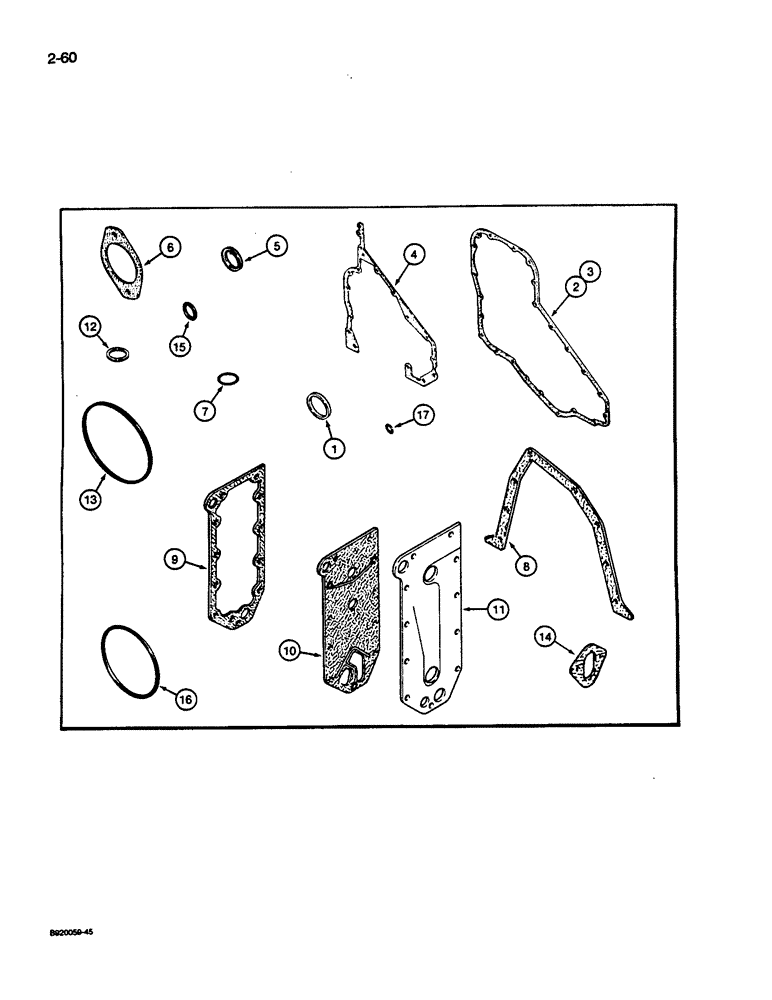

Запчасти Case 1187C (2-60) - GASKET KITS, 6T-830 ENGINE, CYLINDER BLOCK (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A77718
GASKET KIT
KIT - gasket, cylinder block, engines prior to SN 44500128, replaces A77677 and A77581, Includes: Ref. 1 - 17
1шт.
For complete engine overhaul order (1) each of valve grind kit, Figure 2-58, cylinder block kit, above, oil pan kit, Figure 2-32, front and rear crankshaft seal kit, Fig. 2-50 and required cylinder head gasket, Fig. 2-34.
1шт.
A77726
KIT
- gasket, cylinder block, engines SN 44500128 and after, Includes: Ref. 1 - 17
1шт.
For complete engine overhaul order (1) each of valve grind kit, Figure 2-58, cylinder block kit, above, oil pan kit, Figure 2-32, front and rear crankshaft seal kit, Fig. 2-50 and required cylinder head gasket, Fig. 2-34.
1шт.
1
J903475
SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk
- front access cover
1шт.
2
J917780
GASKET,0.98mm Thk
GASKET - cover, gear, low mount applications, A77726 kit only
1шт.
3
J917779
GASKET,0.98mm Thk
- cover, gear, high mount applications
1шт.
4
J914303
SEAL
GASKET - housing, gear
1шт.
5
J915772
SEAL,Square, 1.68mm Thk x 29.87mm ID, -25
SEALRING - timing pin housing, replaces J914092
1шт.
6
J919601
GASKET
- accessory drive cover plate, replaces J913288
1шт.
7
J902089
SEAL,0.139" Thk x 3.859" ID, -241
O-RING - sealing, pump
1шт.
10
J914308
GASKET
- filter head, engines prior to SN 44500128
1шт.
11
J918332
GASKET
- filter head, engine SN 44500128 and after
1шт.
12
J901798
SEALING WASHER
WASHER - sealing, regulator plug, oil filter
1шт.
13
J912473
SEAL,157mm ID x 163.18mm OD x 7.03mm Thk
O-RING - flywheel, Serial Range: housing-block
1шт.
14
J914304
GASKET
- mounting, pump
1шт.
15
238-5212
O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro
Sealing (Replaces 253070R1) -212, 70 Duro, .859" ID x .139" Thk
1шт.
Выбрано товаров: 21
