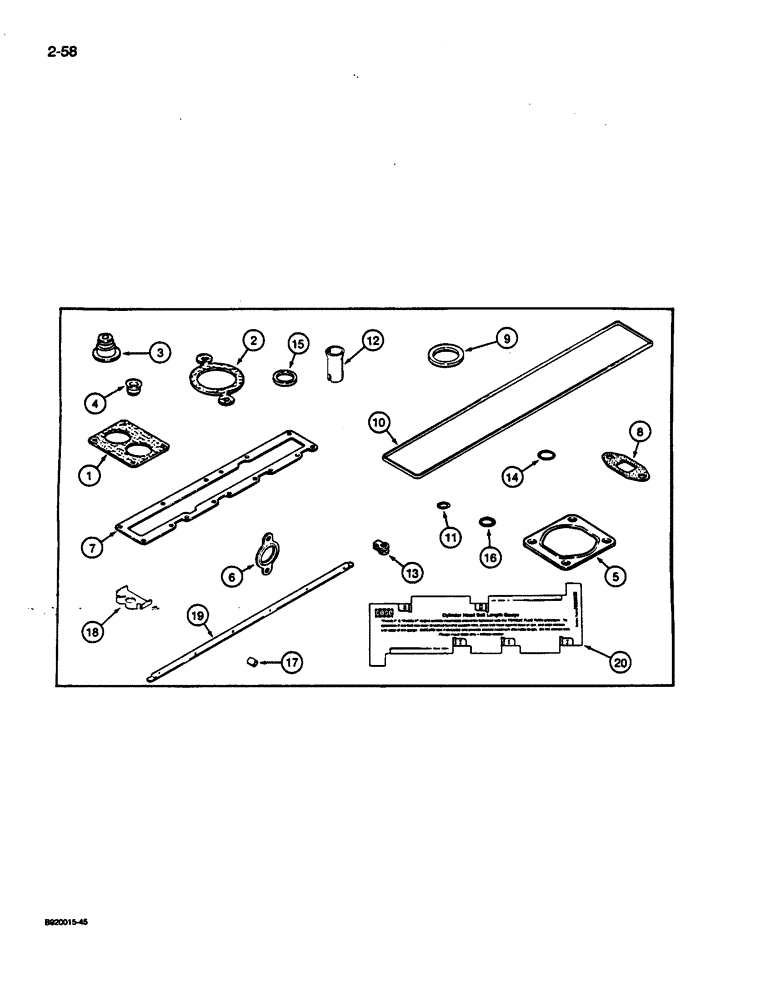

Запчасти Case 1187C (2-58) - GASKET KITS, 6T-830 ENGINE, VALVE GRIND (02) - ENGINE

A77678

GASKET KIT

KIT - gasket, valve grind, engines prior to SN 44487830, replaces A77630, Includes: Ref. 1 - 20

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Fig. 2-60.

1шт.

A77794

GASKET KIT

KIT - gasket, valve grind, engines SN 44487830 and after, Includes: Ref. 1 - 20

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Fig. 2-60.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

A77705

GASKET

- outlet tube, replaces J914309

1шт.

3

J915707

SEAL

- stem, intake and exhaust valve, A77794 kit only

12шт.

4

J912550

SEAL

- stem, intake valve, A77678 kit only

6шт.

4

J912549

SEAL

- stem, exhaust valve, A77678 kit only

6шт.

5

J911941

GASKET

- turbocharger mounting

1шт.

6

J911942

GASKET

- manifold, exhaust

6шт.

7

J914311

MANIFOLD GASKET

- cover, manifold intake

1шт.

8

J914388

GASKET

- oil drain tube

1шт.

9

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

10

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover

1шт.

11

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

12

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- injector

6шт.

13

J903380

SEAL

- connector

7шт.

14

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

15

J906659

SEAL

- injector nozzle

6шт.

16

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water filter shutoff -111, 70 Duro, .424" ID x .103" Thk

1шт.

17

J918610

HOSE,19.05 mm ID x 51.00 mm

Breather Tube to Valve Cover Elbow, A77794 Kit Only 19.05 mm ID x 51.00 mm

1шт.

18

J914708

LOCKING PLATE

PLATE - lock, exhaust manifold bolts, A77794 kit only

12шт.

19

J919677

TUBE

- oil, A77794 kit only

1шт.

20

J823921

GAUGE

- cylinder head capscrew length, A77794 kit only

1шт.
