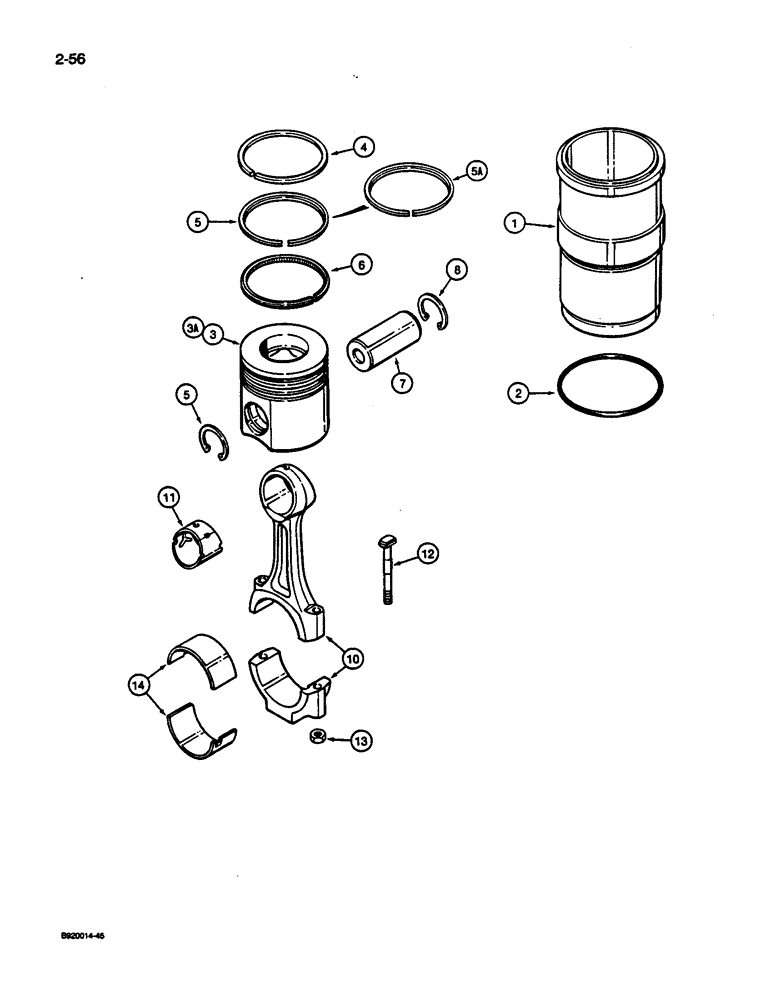

Запчасти Case 1187C (2-56) - PISTONS AND CONNECTING RODS, 6T-830 ENGINE (02) - ENGINE

A77598

CYLINDER

KIT - piston and sleeve, engine, prior to engine serial number 44536857, Includes: Ref. 1 - 8

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston prior to engine serial number 44536857

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, pistons prior to engine serial number 44536857

1шт.

A77599

KIT

- piston, standard, no longer available, order A77745 piston kit, shown below, prior to engine serial number 44536857, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 8749, prior to engine serial number 44536857

1шт.

A77562

PISTON RING SET

KIT - piston ring, used with piston stamped 8749, prior to engine serial number 44536857, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top, pistons prior to engine serial number 44536857

1шт.

5

NSS

NOT SOLD SEPARAT

RING - rectangular, compression, middle, pistons prior to engine serial number 44536857

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom, pistons prior to engine serial number 44536857

1шт.

7

J901597

PIN

- piston prior to engine serial number 44536857

1шт.

8

J901996

RING

- retaining, pistons prior to engine serial number 44536857

2шт.

A77747

PACKAGE

KIT - piston and sleeve, includes piston stamped 9928, engine serial number 44536857 and after, Includes: Ref. 1 - 6

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston engine serial number 44536857 and after

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, pistions engine serial number 44536857 and after

1шт.

A77745

PACKAGE

KIT - piston, standard, includes piston stamped 9928, engine serial number 44536857 and after

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9928, engine serial number 44536857 and after

1шт.

A77744

PACKAGE

KIT - piston ring, used with piston stamped 9928, engine serial number 44536857, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top, pistions engine serial number 44536857

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, pistions engine serial number 44536857 and after

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom, pistons engine serial number 44536857 and after

1шт.

7

J901597

PIN

- piston engine serial number 44536857 and after

1шт.

8

J901996

RING

- retaining, pistons engine serial number 44536857 and after

2шт.

JR901383

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, includes both halves, remanufactured, North America only

6шт.

JC901383

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rod for credit

1шт.

J901383

CONNECTING ROD

ROD ASSEMBLY - connecting

6шт.

84487529R

REMAN-CONNECTING ROD

1187C, Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

ROD - connecting, two-piece, Includes: Ref. 11 and 12

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

- rod to piston pin, connecting

1шт.

12

J928870

ROD

- rod bearing retaining (replaces J901380), connecting rods

2шт.

13

J901381

SPECIAL NUT

- hex, bolt retaining, connecting rods

2шт.

14

A77563

BEARING SET

KIT - bearing, upper and lower, standard, set of two, connecting rods

6шт.

14

A77564

BEARING SET

KIT - bearing, upper and lower, 0.25 mm undersize, set of two, connecting rods

6шт.

14

A77565

BEARING SET

KIT - bearing, upper and lower, 0.50 mm undersize, set of two, connecting rods

6шт.

14

A77566

BEARING SET

KIT - bearing, upper and lower, 0.75 mm undersize, set of two, connecting rods

6шт.

14

A77567

BEARING SET

KIT - bearing, upper and lower, 1.00 mm undersize, set of two, connecting rods

6шт.
