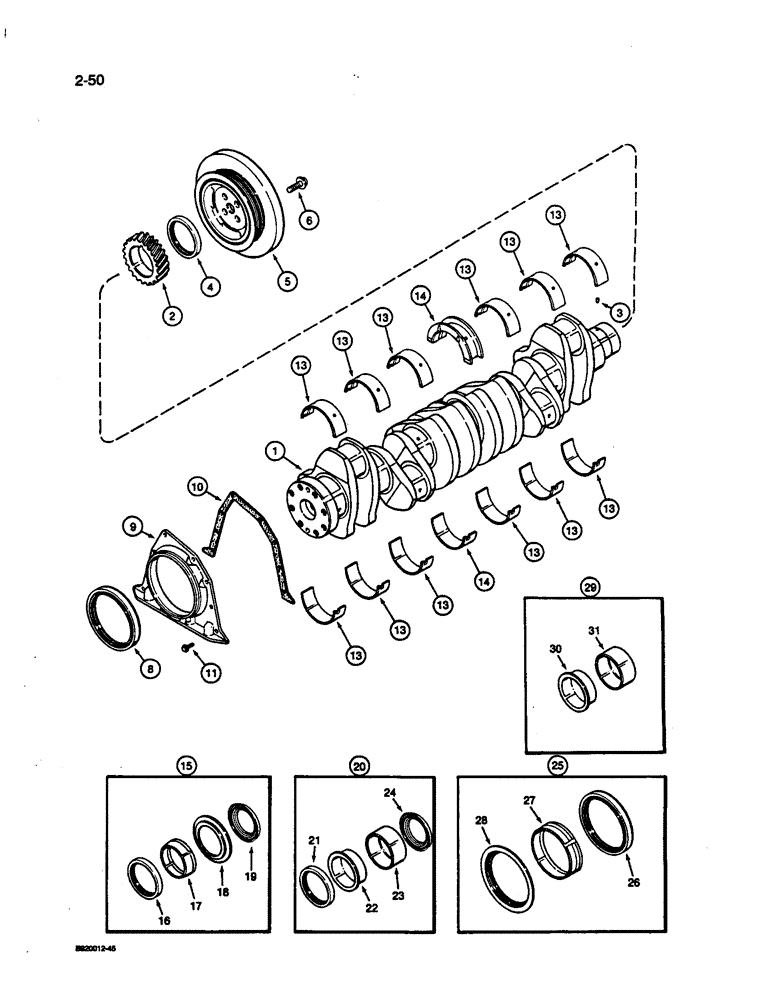

Запчасти Case 1187C (2-50) - CRANKSHAFT, 6T-830 ENGINE (02) - ENGINE

JR917443

REMAN-CRANKSHAFT

CRANKSHAFT - engine, remanufactured, North America only, replaces JR904363

1шт.

JC917443

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit, replaces JC904363

1шт.

1

J917443

CRANKSHAFT

- engine, new, replaces J904363, Includes: Ref. 2 and 3

1шт.

2

J918380

GEAR

- crankshaft, replaces J907645

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, order Ref. 15 or 20 kit, see below

1шт.

5

J914456

DAMPER

PULLEY - crankshaft dampener

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

- hex flange, special, M14 x 35

4шт.

8

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear, order Ref. 24 kit, see below

1шт.

9

J921042

REAR COVER

RETAINER - rear seal, replaces J907535

1шт.

10

J914301

GASKET

- rear retainer

1шт.

11

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Replaces J913638 Hex Flg, M6 x 15, 8.8, Full Thd

6шт.

13

A77711

BEARING LINER

BEARING - main, standard, upper and lower set, replaces A77569

6шт.

13

A77712

BEARING LINER

BEARING - main, 0.25 mm oversize, upper and lower set, replaces A77570

6шт.

13

A77713

BEARING LINER

BEARING - main, 0.50 mm oversize, upper and lower set, replaces A77571

6шт.

13

A77714

BEARING LINER

BEARING - main, 0.75 mm oversize, upper and lower set, replaces A77572

6шт.

13

A77715

BEARING LINER

BEARING - main, 1.00 mm oversize, upper and lower set, replaces A77573

6шт.

14

A77706

BEARING LINER

BEARING - main thrust, standard, upper and lower set, replaces A77574

1шт.

14

A77707

SET

BEARING - main thrust, 0.25 mm oversize, upper and lower set, replaces A77575

1шт.

14

A77708

BEARING LINER

BEARING - main thrust, 0.50 mm oversize, upper and lower set, replaces A77576

1шт.

14

A77709

BEARING LINER

BEARING - main thrust, 0.75 mm oversize, upper and lower set, replaces A77577

1шт.

14

A77710

BEARING LINER

BEARING - main thrust, 1.00 mm oversize, upper and lower set, replaces A77578

1шт.

15

A77790

SEAL KIT

KIT - oil seal, crankshaft front, replaces J908139, if used, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

18

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

19

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust

1шт.

20

A77791

GASKET KIT

KIT - wear sleeve and oil seal, crankshaft front, replaces J908277 and J920408, if used, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

24

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust

1шт.

25

J909410

GASKET KIT

KIT - oil seal, rear, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - oil rear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

28

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

29

J906081

SLEEVE

KIT - wear sleeve, crankshaft rear, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

31

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
