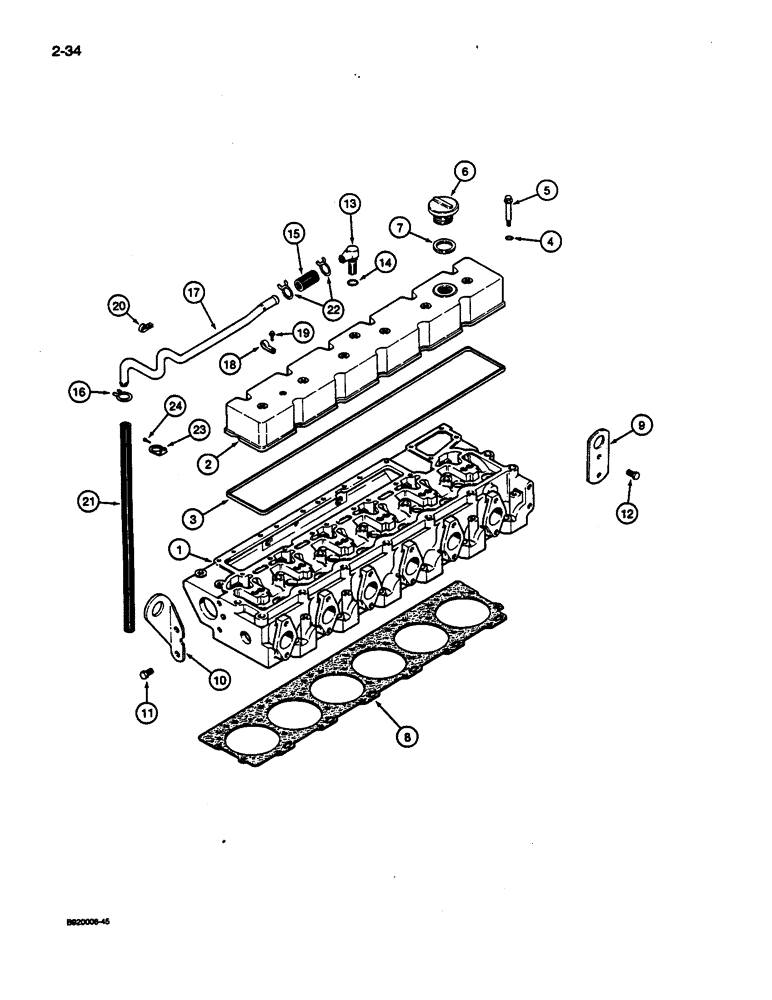

Запчасти Case 1187C (2-34) - CYLINDER HEAD COVER, 6T-830 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see Figure 2-38, for correct cylinder head assembly and component parts

1шт.

2

J907734

COVER ASSY

COVER - valve

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

5

J916585

BOLT,Hex Flg, M8 x 1.25

BOLT - hex, special, replaces J901838

6шт.

6

J902468

FILLER CAP,Male

CAP - oil filler

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

8

J921850

GASKET

- cylinder head, standard, replaces J921216, J911342 and J907682

1шт.

8

J921852

GASKET

- cylinder head, 0.13 mm thicker, replaces J914305 and J908119

1шт.

8

J921853

GASKET

- cylinder head, 0.50 mm thicker, replaces J914306 and J908120

1шт.

9

J907861

LIFTING EYE

BRACKET - lifting, front

1шт.

10

J906440

LIFTING EYE

BRACKET - lifting, rear

1шт.

11

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex, flange, 12 - 1.75 x 25 mm, class 10.9, rear lifting bracket

2шт.

12

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Front lifting bracket Hex, M12 x 25, 8.8, Full Thd

2шт.

13

J906794

CONNECTION

CONNECTOR - vent

1шт.

14

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

15

J915040

HOSE

- connector

1шт.

16

214-113

HOSE CLAMP,#18, 1 1/8", Spring

CLAMP - spring type, 1-1/8 inch, hose retaining

1шт.

17

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

- breather

1шт.

18

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

Retaining M15.88, M9.52 Bolt Hole

1шт.

19

J912072

SELF-TAP SCREW

SCREW, SELF TAPPING, hex, retaining, 8x15 mm, replaces J902735

1шт.

20

A77538

CLIP

- retaining

1шт.

21

A77717

HOSE

- breather, replaces J907739

1шт.

22

J918163

CLIP

CLAMP - hose retaining, replaces 214-109

2шт.

23

J909670

CLIP

- retaining

1шт.

24

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9, clip retaining

1шт.
