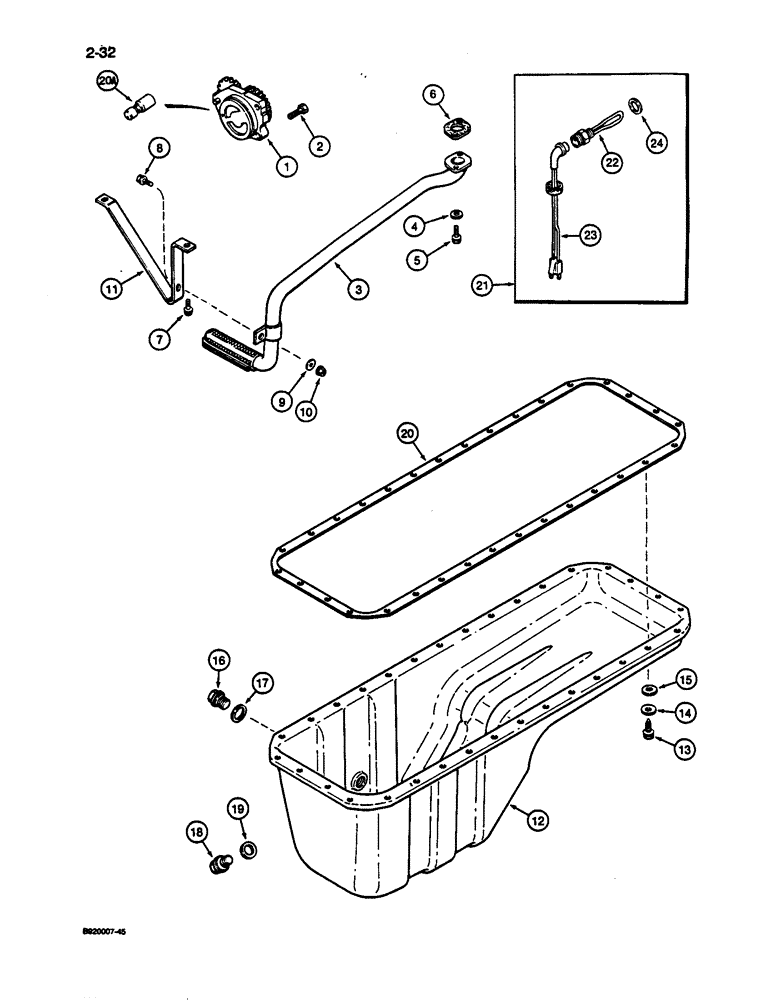

Запчасти Case 1187C (2-32) - OIL PUMP AND OIL PAN, 6T-830 ENGINE (02) - ENGINE

JR921067

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - oil, remanufactured, North America only

1шт.

JC921067

CORE-ENGINE OIL PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

1

J914007

PUMP, ENGINE OIL

PUMP - oil, engine, no longer available, for service order J918213 pump and J918532 plunger

1шт.

1

J918213

PUMP, ENGINE OIL

PUMP - oil, engine

1шт.

1

JR930338

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 30, 8.8, Full Thd

4шт.

3

J910788

TUBE ASSY.

SCREEN - oil suction

1шт.

4

J908738

SPACER

SPACER - mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.00 x 30 mm, replaces J900628

2шт.

6

J914302

GASKET

GASKET - mounting, oil tube

1шт.

Part of gasket, oil pan kit P/N A77679

1шт.

7

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, , Replaces J913638 Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

8

J901865

FLANGE BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

BOLT - hex, flange, 6 - 1.00 x 20 mm

1шт.

9

J910960

WASHER

WASHER - flat, special

1шт.

10

J906216

FLANGE NUT

NUT - hex, flange, 6 mm - 1.00

1шт.

11

J913427

BRACE

BRACE - suction tube

1шт.

12

J914013

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

13

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex, flange, 8 - 1.25 x 25 mm

32шт.

14

J910266

LOCK WASHER

WASHER - Belleville spring

32шт.

15

J908316

WASHER

WASHER - flat, M9 x 16 x 1

32шт.

16

J904386

PLUG

PLUG - pipe, heater hole

1шт.

17

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

Part of gasket, oil pan kit P/N A77679

1шт.

18

J911638

PLUG,M18 x 1.5

PLUG - drain, oil magnetic

1шт.

19

J900216

PACKING RING

WASHER - seal, drain plug

1шт.

Part of gasket, oil pan kit P/N A77679

1шт.

20

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

Part of gasket, oil pan kit P/N A77679

1шт.

20a

J918532

PLUNGER

PLUNGER - regulator, must be purchased if replacing J914007 pump with J918213 pump

1шт.

A77679

GASKET KIT

KIT - gasket, oil pan, Includes: Refs. 6, 17, 19 and 20

1шт.

21

A77580

SERVICE KIT

KIT - heater, oil pan, Includes: Ref. 22 and 23

1шт.

When P/N A77580 kit is ordered, Ref. 24 P/N J902425 washer must also be ordered.

1шт.

22

NSS

NOT SOLD SEPARAT

ELEMENT - heater, oil enigine

1шт.

23

J905113

CABLE

CABLE - engine block heater, oil

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug, engine oil heater

1шт.
