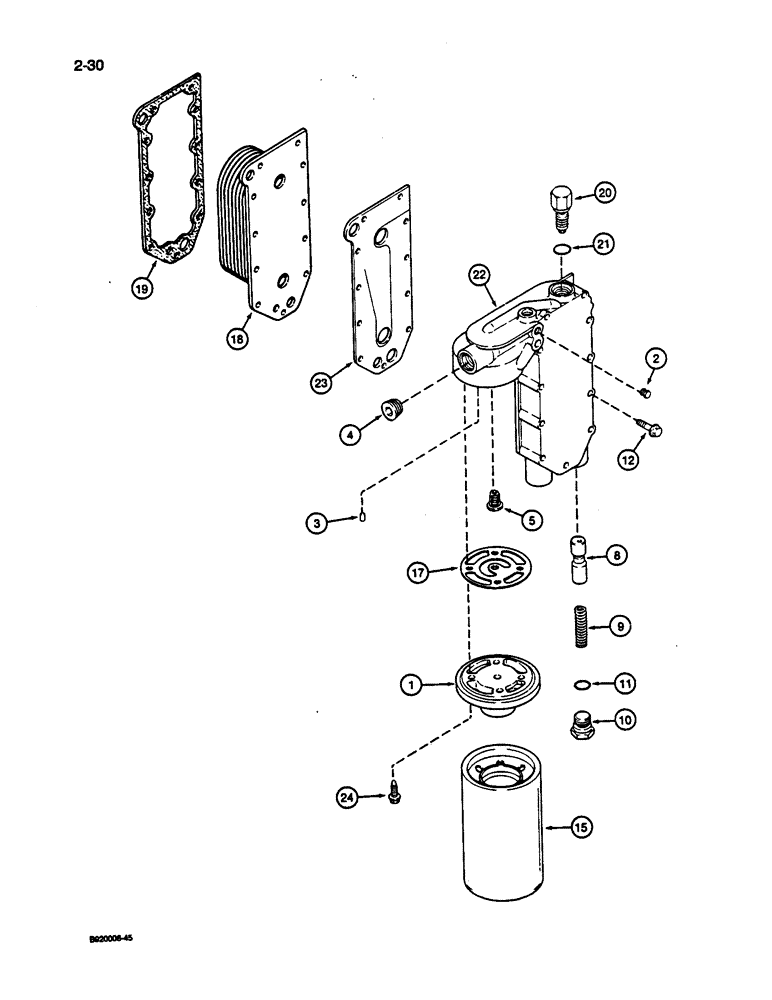

Запчасти Case 1187C (2-30) - OIL FILTER AND COOLER, 6T-830 ENGINE, ENGINE SERIAL NUMBER (02) - ENGINE

1

J918334

FILTER HEAD

HEAD, FILTER

1шт.

2

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

3

A77722

PIN,7.95mm OD x 12.83mm L

- dowel, locating

1шт.

4

A77505

PLUG

- hex socket pipe, 3/4 inch PT

1шт.

5

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

8

J918532

PLUNGER

- regulator

1шт.

9

A77541

SPRING

- compression

1шт.

10

J919016

PLUG

- hex, regulator, 24 mm - 1.50, Includes: Ref. 11

1шт.

11

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

12

845-8065

BOLT,Hvy Hex, M8 x 65mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 65 mm

11шт.

15

J919562

ENGINE OIL FILTER

FILTER - oil (cartridge)

1шт.

17

A77721

GASKET

- head, filter

1шт.

18

J918175

CORE, RADIATOR

CORE - cooler, oil

1шт.

19

J918174

GASKET,0.71mm Thk

- oil cooler core

1шт.

20

J919015

THERMOSTAT

- temperature

1шт.

21

A77724

O-RING,3.05mm Thk x 23.62mm ID

SEAL - thermostat

1шт.

22

J918403

COVER

- oil cooler

1шт.

23

J918332

GASKET

- cover, oil cooler

1шт.

24

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex, flange, 8 - 1.25 x 25 mm

4шт.
