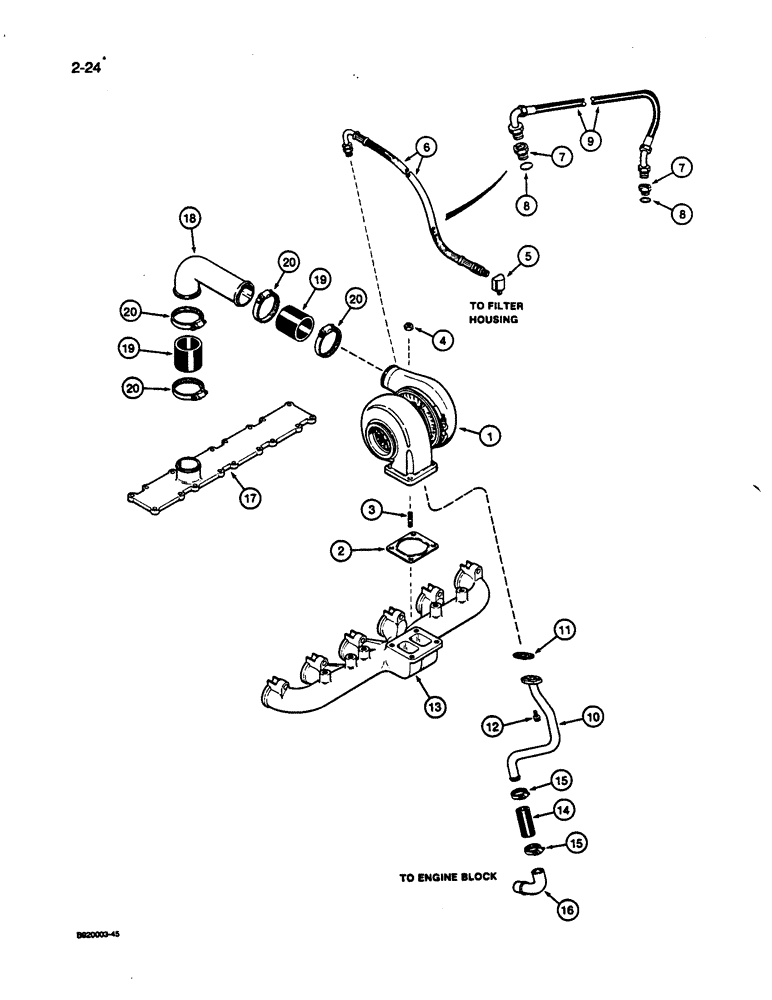

Запчасти Case 1187C (2-24) - TURBOCHARGER SYSTEM, 6T-830 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, see Figure 2-26 for correct assembly and parts lists

1шт.

2

J911941

GASKET

-, Serial Range: turbocharger-manifold

1шт.

3

J905417

STUD

- turbocharger mounting

4шт.

4

J901961

NUT

- hex, turbocharger mounting

4шт.

5

A77588

ELBOW

- 90 degree, prior to Engine Serial Number 44487830

1шт.

6

J909545

HOSE

Oil Supply, Turbocharger, Prior to Engine Serial Number 44487830

1шт.

7

J919687

HYD CONNECTOR

ADAPTER - female hex, oil supply hose, replaces J916857, Engine Serial Number 44487830 and after, Includes: Ref. 8

2шт.

8

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

9

J913759

HOSE

Oil Supply, Turbocharger, Engine Serial Number 44487830 and After

1шт.

10

J917417

TUBE,22.23 mm OD x 281, 141.1 mm L

- oil drain, replaces J913396

1шт.

11

J914388

GASKET

- drain tube

1шт.

12

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm, Replaces J900629

2шт.

13

J906720

MANIFOLD

- exhaust

1шт.

14

J903745

LARGE HOSE

HOSE - turbocharger oil drain

1шт.

15

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adj. #16, 0.81/1.50 Type F Worm

2шт.

16

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

17

A77611

MANIFOLD

COVER - intake manifold

1шт.

18

J914944

TUBE,63.5 mm OD x 207.8, 91.9 mm L

- air, cross over

1шт.

19

J916529

TRANSMISSION SLEEVE

HOSE - intake tube, replaces J904422

2шт.

20

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch dia

4шт.
