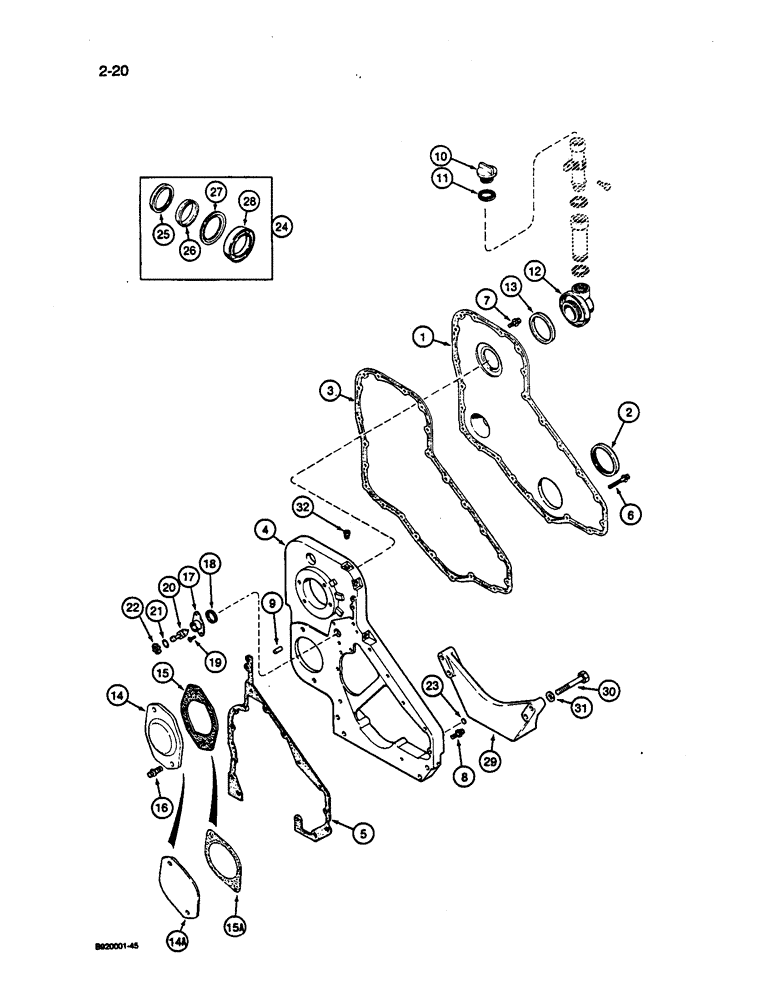

Запчасти Case 1187C (2-20) - FRONT GEAR COVER, 6T-830 ENGINE (02) - ENGINE

1

J916192

COVER ASSY

COVER - gear, front, replaces J905469

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, order Ref. 24, A77790 seal kit below

1шт.

3

J917779

GASKET,0.98mm Thk

- front cover, replaces J913429

1шт.

4

J917316

MOTOR HOUSING

HOUSING - timing gear, replaces J915073

1шт.

5

J914303

SEAL

GASKET - timing gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm, replaces J900633

6шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm, Replaces J900629

17шт.

P/N 845-8016 the proper bolt to use is P/N J924962 or P/N J900629 bolt with Loctite

1шт.

8

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm, Replaces J900630

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

10

J901895

CAP

- oil filler

1шт.

11

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

12

J911679

HOUSING

CONNECTOR - engine oil fill

1шт.

13

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- connector

1шт.

14

J909918

PLATE

- accessory drive cover, no longer available, for service order J914868 plate, Ref. 14A

1шт.

14a

J914868

COVER

PLATE - accessory drive cover

1шт.

15

J913288

SEAL

GASKET - cover plate, no longer available, for service order J919601 gasket, Ref. 15A

1шт.

15a

J919601

GASKET

- cover plate

1шт.

16

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, replaces J901249

2шт.

17

J905933

HOUSING

- timing pin

1шт.

18

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - timing pin housing, replaces J914092

1шт.

19

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

20

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

21

J913994

O-RING

- sealing

1шт.

22

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

23

A77552

PLUG

- expansion, lower dowel hole, 29/64 inch diameter

1шт.

24

A77790

SEAL KIT

KIT - seal, oil, crankshaft front, replaces J908139, Includes: Ref. 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

26

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

28

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust

1шт.

29

A184919

SUPPORT

- front, engine

1шт.

30

J902451

FLANGE BOLT,Hvy Hex, M12 x 90mm, Cl 10.9

BOLT - engine support to gear housing

4шт.

31

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, mounting bolt

4шт.

32

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

3шт.
