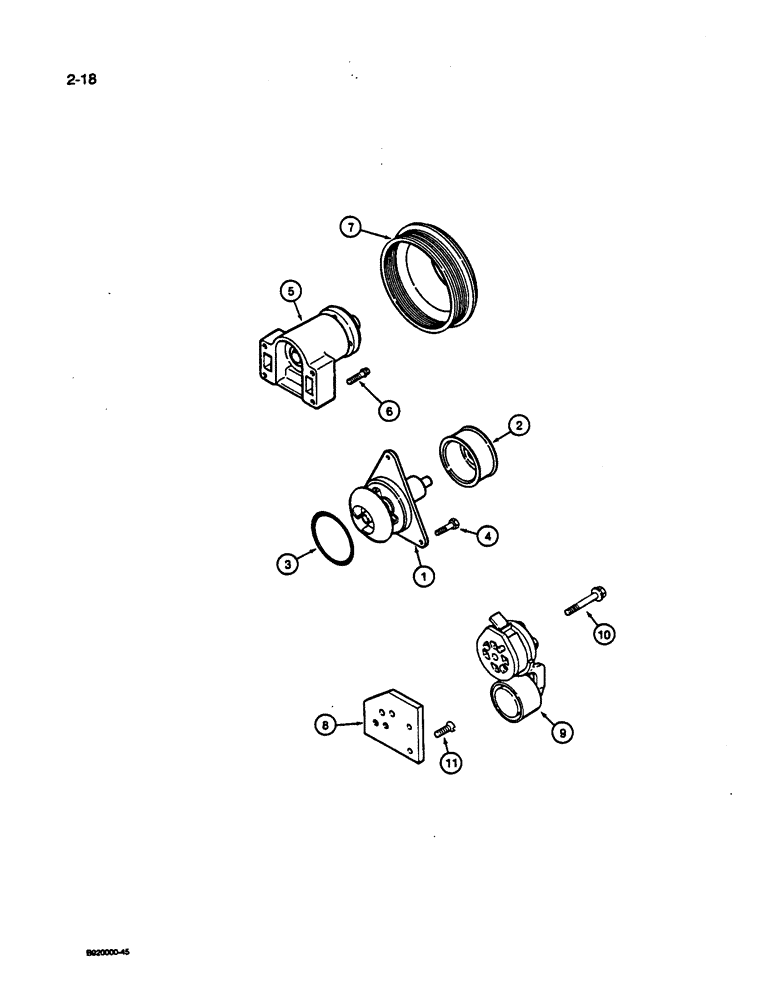

Запчасти Case 1187C (2-18) - WATER PUMP SYSTEM, 6T-830 ENGINE (02) - ENGINE

A77704

PUMP, WATER

KIT - water pump, replaces A77579, Includes: Ref. 1 - 3

1шт.

J800976R

REMAN-WATER PUMP

1187C 6T-830 ENGINE, Reman for New P/N A77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, pump

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

5

J910738

SUPPORT ASSY.

SUPPORT - fan

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm, replaces J900633, fan support to cylinder head

4шт.

7

J914462

PULLEY,163mm OD

- fan

1шт.

8

J919932

SUPPORT

BRACKET - mounting, belt tensioner

1шт.

9

J918944

BELT TENSIONER

TENSIONER - belt, replaces J914086

1шт.

10

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9, Belt tensioner to mounting bracket

1шт.

11

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, 8 - 1.25 x 25 mm, Special, mounting bracket to cylinder head

2шт.
