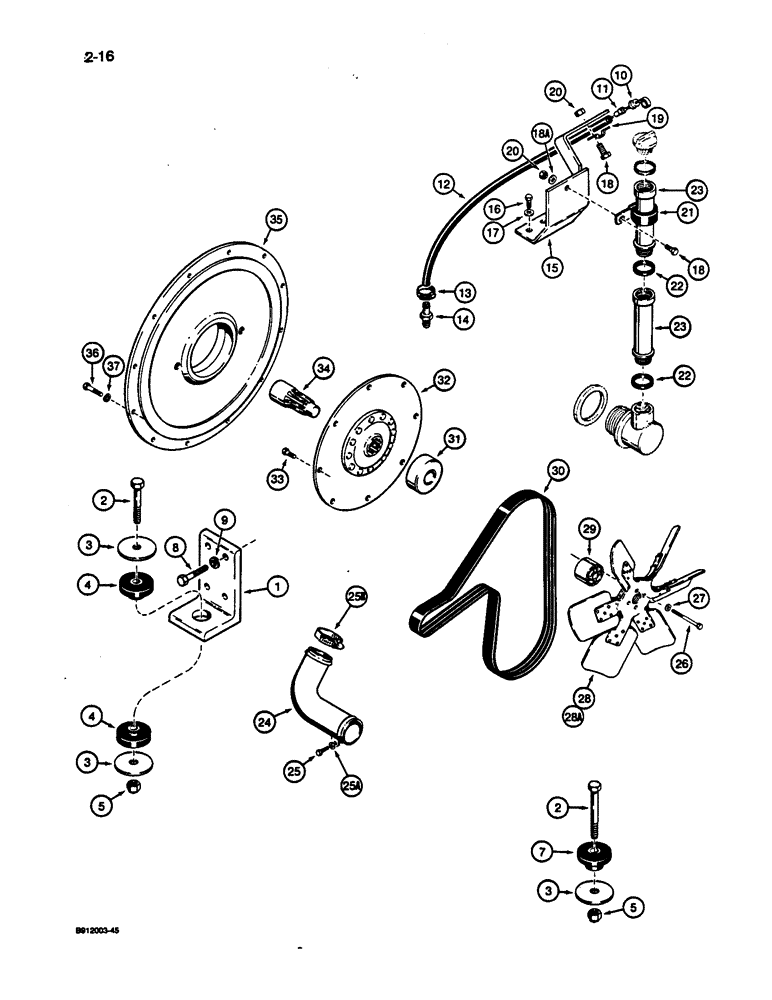

Запчасти Case 1187C (2-16) - ENGINE MOUNTING AND ADAPTING PARTS (02) - ENGINE

1

S240986

ANGLE

BRACKET - engine mounting

2шт.

2

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

3шт.

3

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

- flat, special

5шт.

4

R49921

RUBBER MOUNTING

INSULATOR - rubber

4шт.

5

131-460

LOCK NUT,5/8"-11

NUT - heavy hex, self-locking, 5/8 inch NC

3шт.

7

S112578

MOUNTING PARTS

INSULATOR - rubber

1шт.

8

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 40 mm

8шт.

9

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

10

A189150

DIPSTICK

- oil, 1,220 mm long

1шт.

11

J905802

FITTING,9.53 mm OD x 39 mm L

ADAPTER - dipstick to tube

1шт.

12

J905801

TUBE

HOSE - oil dipstick

1шт.

13

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1-2шт.

14

A77645

TUBE

ADAPTER -, Serial Range: hose-engine

1шт.

15

A189208

BRACKET

- dipstick

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

18a

495-21038

WASHER,5/16"

1шт.

19

A55980

CLAMP

- at dipstick bracket

1шт.

20

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

21

S86530

CLAMP

- oil filler tube

1шт.

22

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil filler tube

2шт.

23

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

- oil filler

2шт.

24

S243112

TUBE,50.2 mm OD

- water inlet

1шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 16 mm

1шт.

25a

495-21038

WASHER,5/16"

1шт.

25b

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

adj. #36, 1.81/2.75 Type F Worm

1шт.

26

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

27

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

28

A189170

FAN

- pusher, engine cooling, no longer used, order Ref. 28A

1шт.

28a

101704A1

FAN,6 Blades, 653.2mm OD

- pusher, engine cooling, replaces A189423 fan

1шт.

29

A184546

SPACER

- pusher fan

1шт.

30

J911571

V-BELT,27.92mm W x 1524mm L, 8 Ribs

Fan 3.56 mm W x 1524.00 mm L, 8 Ribs

1шт.

31

S118923

ADAPTER

- flywheel

1шт.

32

S618518

DAMPER

PLATE - drive, main hydraulic pump

1шт.

33

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

- hex, self-locking, 3/8 NC x 5/8 inch, grade 8

8шт.

34

S242024

COUPLING

- drive shaft, main hydraulic pump

1шт.

35

S52615

MOUNTING PARTS

PLATE - mounting, main hydraulic pump

1шт.

36

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 - 1.5 x 35 mm

12шт.

37

892-11010

LOCK WASHER,M10

12шт.

J914086

BELT TENSIONER

TENSION ASSY., Serial Range: subs-J918944

1шт.

J904446

FLANGE BOLT,Hex, M10 x 70mm, Cl 10.9

BOLT, subs to 854-10070

1шт.

J905936

SUPPORT

MOUNT. BRACKET, Serial Range: subs-J925211

1шт.

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Subs to Screw J925186

1шт.
