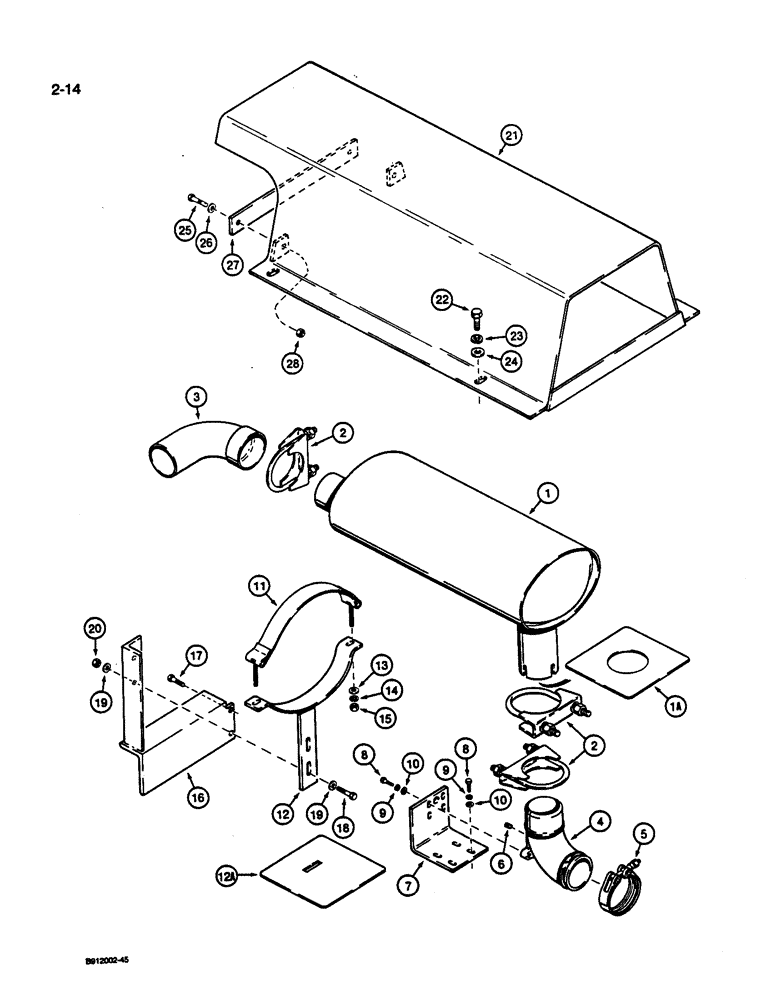

Запчасти Case 1187C (2-14) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

A189041

MUFFLER

- engine exhaust

1шт.

1a

S243496

GASKET

- muffler

1шт.

2

A162896

CLAMP

- muffler

3шт.

3

S517373

PIPE, EXHAUST SYSTEM

PIPE - exhaust

1шт.

4

A173668

ELBOW

-, Serial Range: turbocharger-muffler

1шт.

5

A170807

CLAMP,102mm ID

elbow

1шт.

6

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

7

A172568

SUPPORT

BRACKET - elbow, at turbocharger

1шт.

8

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

9

892-11010

LOCK WASHER,M10

4шт.

10

495-21038

WASHER,5/16"

4шт.

11

S233601

STRAP

BRACKET - muffler support, upper

1шт.

12

S517371

SUPPORT

BRACKET - muffler support, lower

1шт.

12a

S243497

GASKET

- seal

1шт.

13

495-21038

WASHER,5/16"

13шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

S517372

BRACKET

- muffler support, at engine

1шт.

17

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 40 mm

2шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

19

495-21038

WASHER,5/16"

4шт.

20

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.

21

S517023

GUARD

- muffler

1шт.

22

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

24

S95569

WASHER

- flat, special, hardened

2шт.

25

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

26

495-21038

WASHER,5/16"

2шт.

27

S120855

BAR

- muffler guard

1шт.

28

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.
