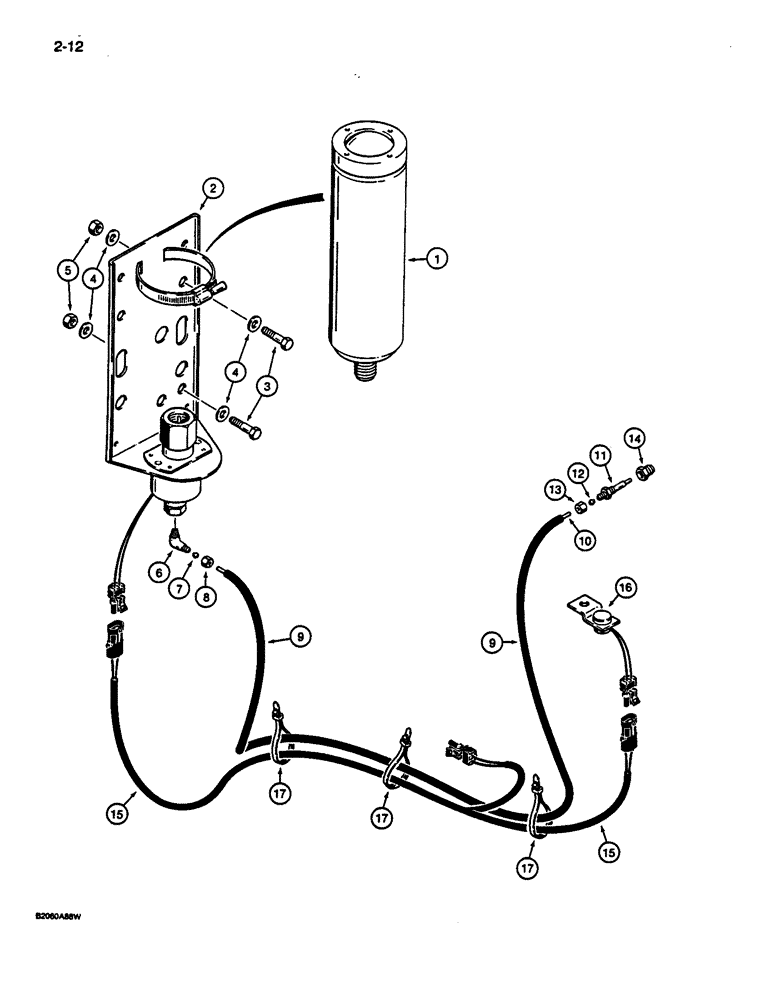

Запчасти Case 1187C (2-12) - COLD START SYSTEM (02) - ENGINE

1

A171940

CYLINDER

CONTAINER - ether

1шт.

2

L126198

VALVE

ASSEMBLY - starting fluid injection, 6 cc injection volume, with bracket, component parts not serviced separately

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

5

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Incl. Ref 6 - 8 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

9

S119695

LOOM

- 5/16 (8 mm) ID x 30 inch (762 mm) long, tube, cut from S118377X bulk, see below

1шт.

For cold start switch on instrument panel, see Fig. 4-22, Ref. 4.

1шт.

10

L40537

TUBE,0.078" ID x 0.125" OD x 34" L

- 1/8 (3 mm) OD x 34 inch (864 mm) long, nylon, valve assembly to engine air intake, cut from S118583X bulk, see below

1шт.

For cold start switch on instrument panel, see Fig. 4-22, Ref. 4.

1шт.

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - cold start injector, component parts not serviced separately, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

14

221-628

REDUCER,Hex, 1/4" x 1/8" NPT

- pipe, 1/4 male x 1/8 inch female

1шт.

15

S243397

HARNESS

- cold start

1шт.

16

L126191

THERMOSTATIC SWITCH

SWITCH - temperature

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

S118377X

LOOM

- 5/16 inch (8 mm) ID x 20 ft (6.1 m) long, bulk

1шт.

For cold start switch on instrument panel, see Fig. 4-22, Ref. 4.

1шт.

S118583X

PLASTIC-RUBBER TUBE

TUBE - 1/8 inch (3 mm) OD x 300 inch (7620 mm) long, bulk, nylon

1шт.

For cold start switch on instrument panel, see Fig. 4-22, Ref. 4.

1шт.
