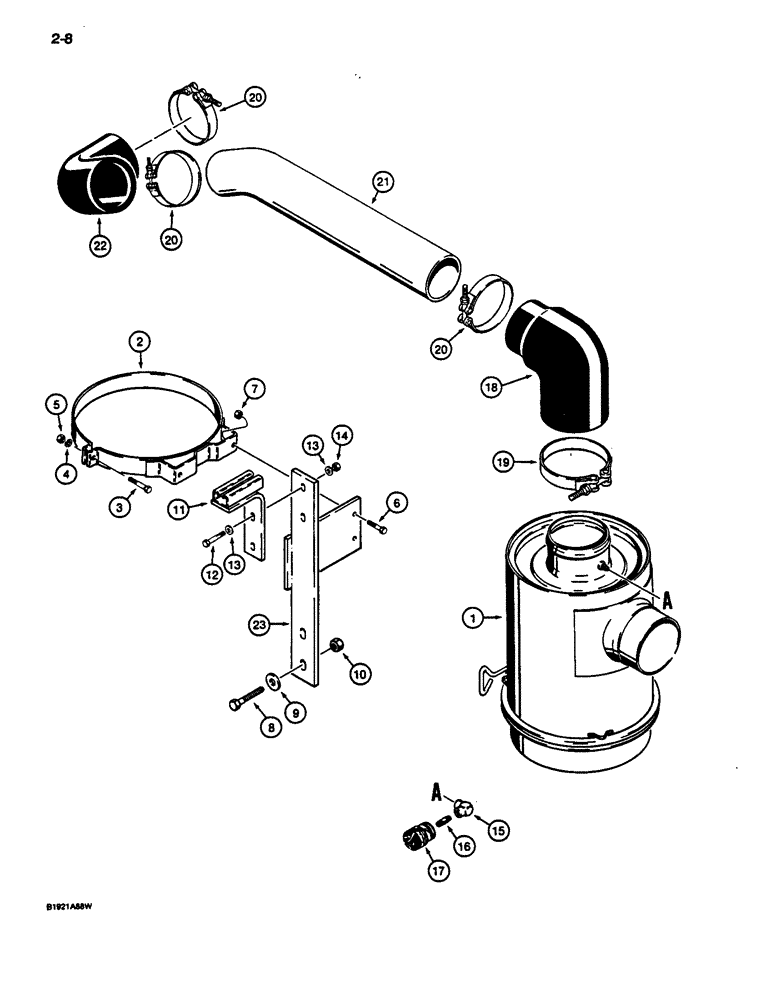

Запчасти Case 1187C (2-08) - AIR CLEANER MOUNTING (02) - ENGINE

1

A184169

AIR CLEANER

CLEANER ASSEMBLY - air, parts list Figure 2-10

1шт.

2

A56089

SUPPORT

BAND - air cleaner

2шт.

3

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

7

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

8

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

9

S95569

WASHER

- flat, special, hardened

2шт.

10

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

11

S241397

BRACKET

- 90 degree, upper, tube clamp support

1шт.

12

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

14

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

15

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- pipe, 90 degree, 1/8 inch female

1шт.

16

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - straight, 1/8 PT x 1-1/2 inch long

1шт.

17

A59569

INDICATOR

- air restriction

1шт.

18

S513100

ELBOW

- 90 degree, air cleaner outlet

1шт.

19

214-363

CLAMP,#140, 5.25"-5.56", T-Bolt

- adj, 5-1/4 - 5-9/16 inch dia, at air cleaner

1шт.

20

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

- adj, 4-1/4 - 4-9/16 inch dia, tube and elbow

3шт.

21

S517374

TUBE,101.6 mm OD x 628, 50.8 mm L

- formed

1шт.

22

D50920

ELBOW

- 90 degree, special

1шт.

23

S241396

BRACKET

- air cleaner mounting

1шт.
