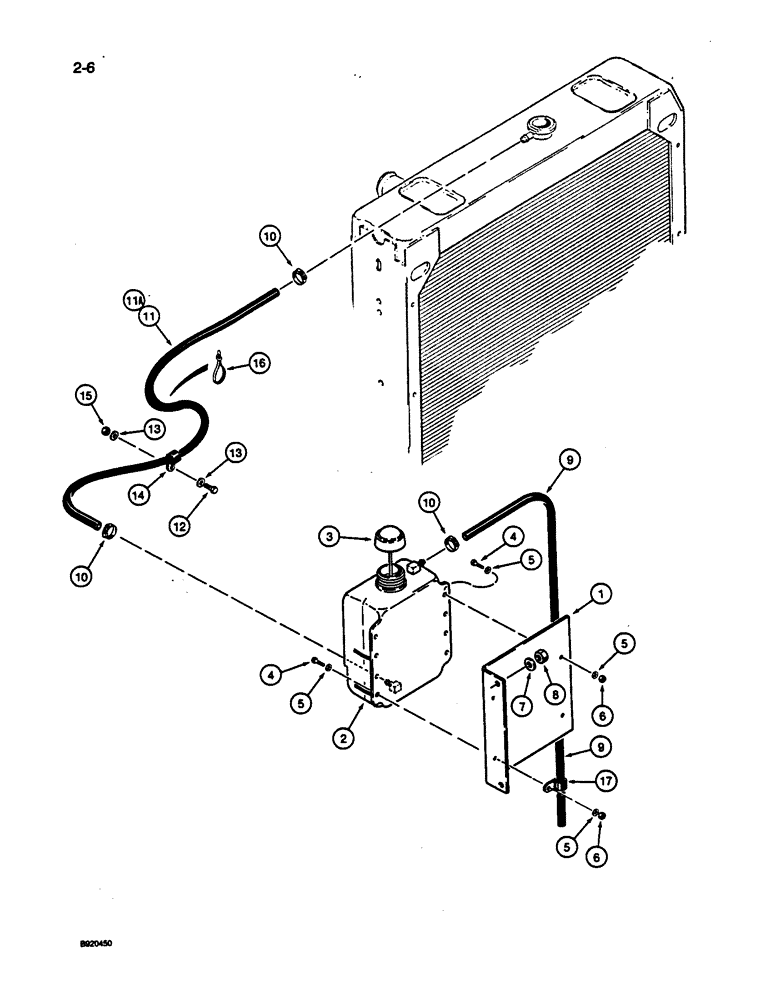

Запчасти Case 1187C (2-06) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

S243383

BRACKET

- coolant recovery bottle

1шт.

2

A184374

RESERVOIR

BOTTLE - coolant recovery

1шт.

3

A184079

CAP

- coolant recovery bottle

1шт.

4

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

5

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

8шт.

6

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

4шт.

7

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

8

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.

9

S119631

HOSE,0.31" ID x 18.00", SAE 30R2 Type 1

Coolant Overflow, Cut from Bulk Hose, See below 0.31" ID x 18.00", SAE 30R2 Type 1

1шт.

10

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

3шт.

11

D71666

FUEL HOSE,0.31" ID x 20.00", SAE 30R1

Coolant Recovery, Cut From S120317X Bulk Hose, See Below, If Used 0.31" ID x 20.00", SAE 30R1

1шт.

11a

S121010

FUEL HOSE

HOSE - 5/16 (8 mm) ID x 48 inch (1219 mm) long, coolant recovery, cut from S120317X bulk hose, see below, if used

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, if used

1шт.

13

495-21038

WASHER,5/16"

If used 5/16"

2шт.

14

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- P-type, coolant recovery hose, if used

1шт.

15

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC, if used

4шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1-4шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- P-type, coolant overflow hose, if used

1шт.

S120317X

HOSE

- bulk, 5/16 inch (8 mm) ID x 25 ft (762 cm) long

1шт.
