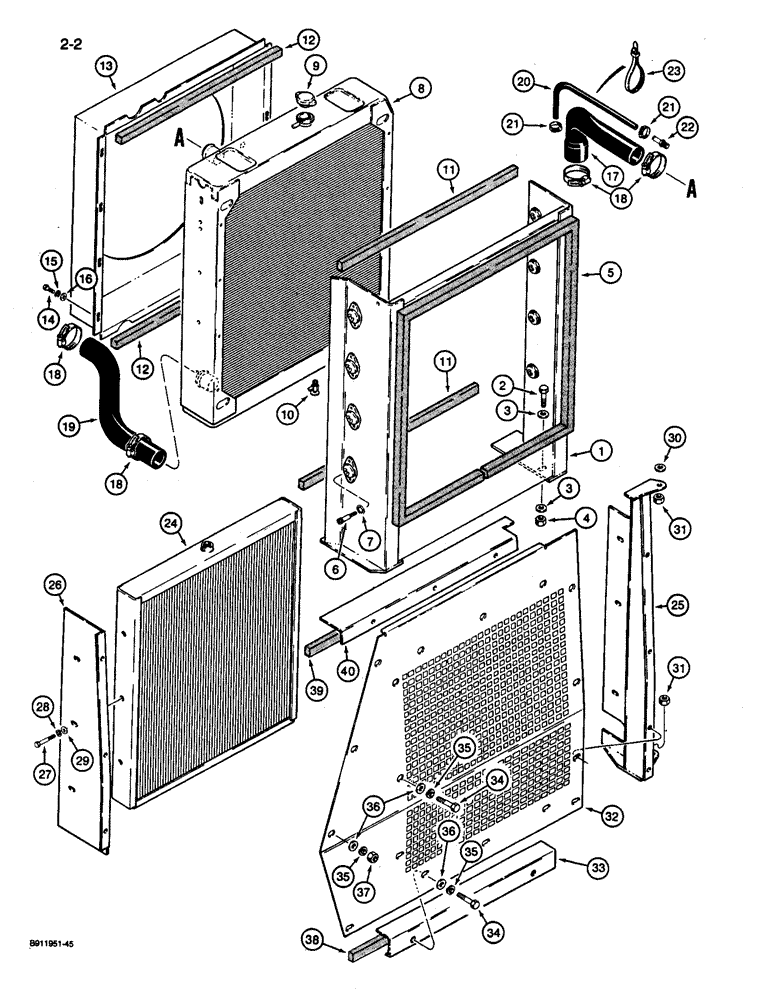

Запчасти Case 1187C (2-02) - RADIATOR, OIL COOLER AND HOSES (02) - ENGINE

1

S619209

BRACKET

- radiator mounting

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

3

S95569

WASHER

- flat, special, hardened

8шт.

4

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

4шт.

5

S120777

SEAL

- air, oil, Serial Range: cooler-radiator

1шт.

6

S76819

STEP BOLT

BOLT - shoulder, special

8шт.

7

493-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8 inch

8шт.

8

A189018

RADIATOR

- engine cooling

1шт.

9

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

10

A27862

COCK, DRAIN

VALVE - drain

1шт.

11

S120778

SEAL

- 32 inch (813 mm) long, radiator to bracket, cut from S120012 bulk seal, see below

2шт.

12

A149296

SEAL

-, Serial Range: radiator-shroud

2шт.

13

A189051

SHROUD

- engine fan

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

16

495-21038

WASHER,5/16"

8шт.

17

S517360

HOSE,50.80 mm ID, 57.20 mm ID x 381.00 mm, SAE 20R4 CLASS C

RADIATOR HOSE, , Upper 50.80 mm ID, 57.20 mm ID x 381.00 mm, SAE 20R4 CLASS C

1шт.

18

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

adj. #36, 1.81/2.75 Type F Worm

4шт.

19

S517361

HOSE,50.80 mm ID x 343.00 mm, SAE 20R4 CLASS C

RADIATOR HOSE, , Lower 50.80 mm ID x 343.00 mm, SAE 20R4 CLASS C

1шт.

20

S119281

HOSE,0.38" ID x 24.00", SAE J30R2 Type 3

- Radiator surge line, Cut from S118400X bulk hose, See below 0.38" ID x 24.00", SAE J30R2 Type 3

1шт.

21

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

radiator surge line hose #4, 0.25/0.62 Type F Worm

2шт.

22

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Adapter - straight, stem end 3/8" Hose X 1/4" NPTF Beaded

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

24

A189026

COOLER, OIL

COOLER - hydraulic oil

1шт.

25

S517342

BRACKET

- mounting, oil cooler, left-hand

1шт.

26

S517343

BRACKET

- mounting, oil cooler, right-hand

1шт.

27

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

29

495-21038

WASHER,5/16"

6шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

1шт.

31

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

32

S619359

SHROUD

PANEL - air intake, see Figure 9-24 - 9-30 for additional turntable shrouds

1шт.

33

S243272

PANEL, SIDE

BRACKET - lower shroud, air deflector

1шт.

34

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

13шт.

35

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

17шт.

36

S95569

WASHER

- flat, special, hardened

17шт.

37

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

38

S119361

SEAL

- 30 inch (762 mm) long, radiator to bracket, cut from S119475 bulk seal, see below

1шт.

39

S120778

SEAL

- 32 inch (813 mm) long, radiator to bracket, cut from S118475 bulk seal, see below

2шт.

40

S243270

PANEL, SIDE

BRACKET - upper shroud, air deflector

1шт.

S120012

SEAL

- 158 inch (4013 mm) long, bulk length

1шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

HOSE - 3/8 (10 mm) ID x 5/8 inch (15 mm) O.D. x 25 ft (762 cm) long

1шт.
