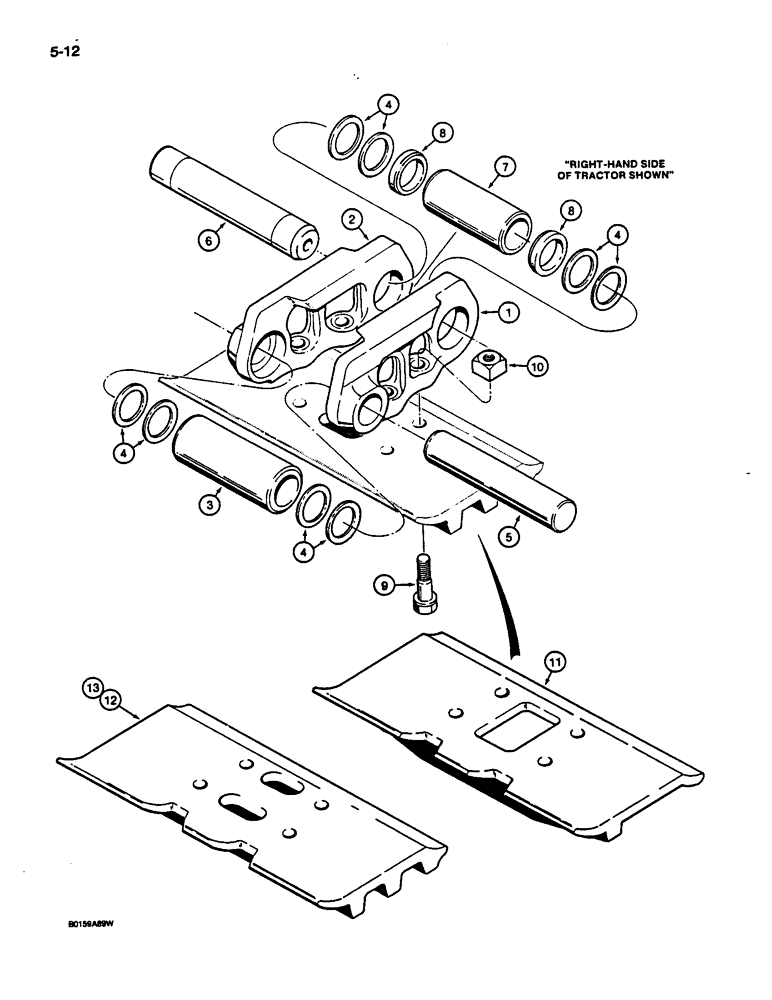

Запчасти Case 1187C (5-12) - TRACK CHAIN AND SHOES (11) - TRACKS/STEERING

S619268

CHAIN (CE)

CHAIN ASSEMBLY - track, Includes: Ref. 1 - 8

2шт.

1

R50431

DRAG LINK

LINK - track, right-hand

45шт.

2

R50432

DRAG LINK

LINK - track, left-hand

45шт.

3

R29193

BUSHING

- standard pin, 2-5/8 inch (67 mm) OD

44шт.

4

R29184

SEAL

SPRING - Belleville, bushing

180шт.

5

R29190

PIN

- standard

44шт.

6

R53725

PIN

- master

1шт.

7

R29192

BUSHING

- master pin

1шт.

8

R29185

BUSHING

SPACER - master bushing

2шт.

9

R29245

BOLT

- special, track shoe

360шт.

10

R29246

NUT

- square, special, track shoe

360шт.

11

S517346

TRACK SHOE

SHOE - track, single bar grouser, 24 inch (600 mm)

90шт.

12

S517347

TRACK SHOE

SHOE - track, three bar grouser, 24 inch (600 mm)

90шт.

13

S517348

TRACK SHOE

SHOE - track, three bar grouser, 30 inch (750 mm)

90шт.
