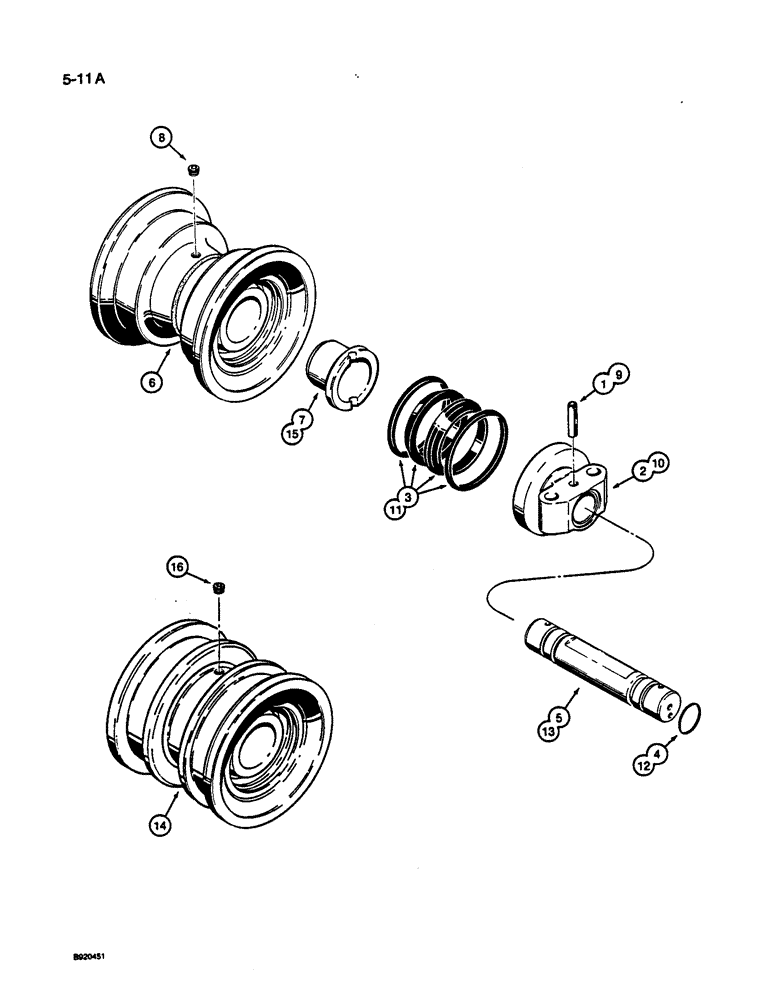

Запчасти Case 1187C (5-11A) - TRACK ROLLERS, P.I.N JAK0033244 AND AFTER (11) - TRACKS/STEERING

R58435

ROLLER ASSY.,236mm OD x 239mm W

ROLLER ASSEMBLY - track, single flange for identification see Ref. 7 in illustration, Includes: Ref. 1 - 8

6шт.

1

R33581

PIN

- cap retaining, track roller - single flange for identification see Ref. 7 in illustration

2шт.

2

R33590

CAP

- end collar, track roller - single flange for identification see Ref. 7 in illustration

2шт.

3

R36780

SEAL,100mm ID x 123.7mm OD x 31.8mm Thk

- rubber, track roller - single flange for identification see Ref. 7 in illustration

2шт.

4

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Shaft, track roller - single flange for identification see Ref. 7 in illustration -230, 70 Duro, 2.484" ID x .139" Thk

2шт.

5

R33591

SHAFT

- track roller - single flange for identification see Ref. 7 in illustration

1шт.

R58437

BEARING, ROLLER

HUB ASSEMBLY - track roller - single flange for identification see Ref. 7 in illustration, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

HUB - track roller - single flange for identification see Ref. 7 in illustration

1шт.

7

R33589

BUSHING

- hub, track roller - single flange for identification see Ref. 7 in illustration

2шт.

8

R33557

PLUG

- track roller - single flange for identification see Ref. 7 in illustration

1шт.

R58436

ROLLER

ASSEMBLY - track, double flange for identification see Ref. 16 in illustration, Includes: Ref. 9 - 16

10шт.

9

R33581

PIN

- cap retaining, track roller - double flange for identification see Ref. 16 in illustration

2шт.

10

R33590

CAP

- end collar, track roller -double flange for identification see Ref. 16 in illustration

2шт.

11

R366780

SEAL - rubber, track roller - double flange for identification see Ref. 16 in illustration

2шт.

12

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Seal, track roller - double flange for identification see Ref. 16 in illustration -230, 70 Duro, 2.484" ID x .139" Thk

2шт.

13

R33591

SHAFT

- track roller - double flange for identification see Ref. 16 in illustration

1шт.

R58438

ROLLER

HUB ASSEMBLY - track roller - double flange for identification see Ref. 16 in illustration, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

HUB - track roller - double flange for identification see Ref. 16 in illustration

1шт.

15

R33589

BUSHING

- hub, track roller - double flange for identification see Ref. 16 in illustration

2шт.

16

R33557

PLUG

- track roller - double flange for identification see Ref. 16 in illustration

1шт.
