(1187C) - CASE FELLER/BUNCHER CRAWLER EXCAVATOR (1/89-12/92)
/
(11) - TRACKS/STEERING
/

(5-10) - TRACK ROLLERS, PRIOR TO P.I.N JAK0033244

Запчасти Case 1187C (5-10) - TRACK ROLLERS, PRIOR TO P.I.N JAK0033244 (11) - TRACKS/STEERING

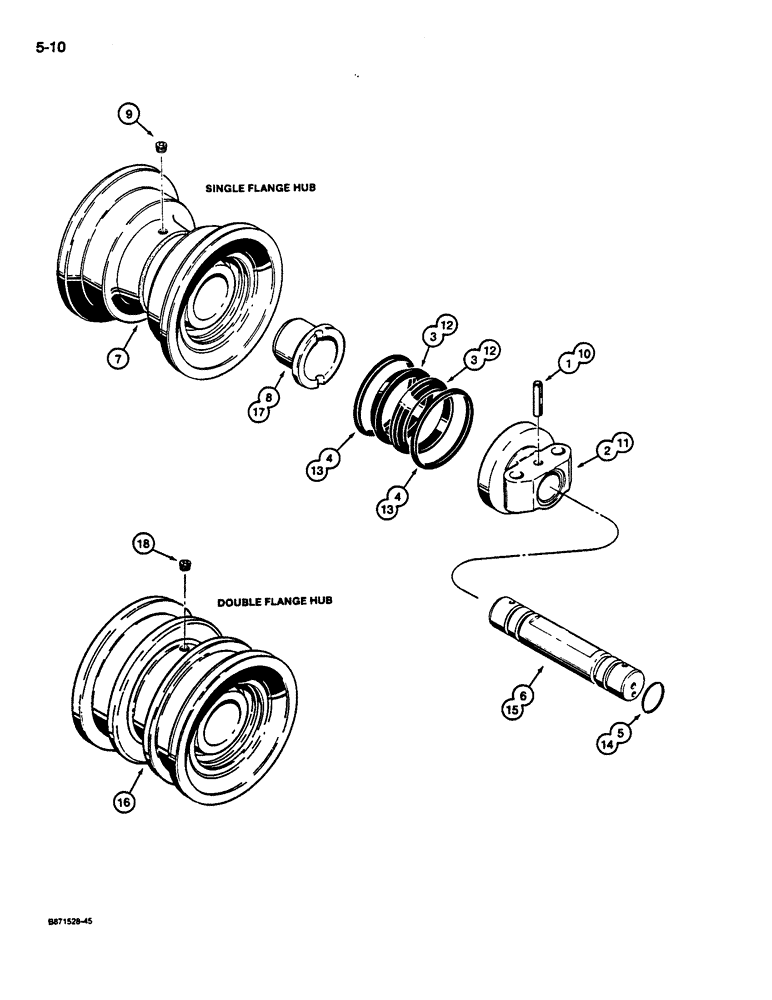

Схема запчастей Case 1187C - (5-10) - TRACK ROLLERS, PRIOR TO P.I.N JAK0033244 (11) - TRACKS/STEERING

№

Артикул

Название

Примечание

Количество

R33583

ROLLER

ASSEMBLY - track, single flange, single flange for identification see Ref. 7 in illustration, Includes: Ref. 1 - 9

6шт.

1

R33593

PIN

- cap retaining, track roller - single flange for identification see Ref. 7 in illustration

2шт.

2

R33590

CAP

- end collar, track roller - single flange for identification see Ref. 7 in illustration

2шт.

S209139

SEAL

- face, track roller - single flange for identification see Ref. 7 in illustration, Includes: Ref. 3 and 4

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL - rubber, track roller - single flange for identification see Ref. 7 in illustration

2шт.

4

NSS

NOT SOLD SEPARAT

O-RING - seal, track roller - single flange for identification see Ref. 7 in illustration

2шт.

5

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- shaft, track roller - single flange for identification see Ref. 7 in illustration

2шт.

6

R33591

SHAFT

- track roller - single flange for identification see Ref. 7 in illustration

1шт.

R33587

ROLLER

HUB ASSEMBLY - track roller - single flange for identification see Ref. 7 in illustration, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

HUB - track roller - single flange for identification see Ref. 7 in illustration

1шт.

8

R33589

BUSHING

- hub, track roller - single flange for identification see Ref. 7 in illustration

2шт.

9

R33557

PLUG

- track roller - single flange for identification see Ref. 7 in illustration

1шт.

R33584

ROLLER

ASSEMBLY - track, double flange for identification see Ref. 16 in illustration, Includes: Ref. 10 - 18

10шт.

10

R33593

PIN

- cap retaining, track roller - double flange for identification see Ref. 16 in illustration

2шт.

11

R33590

CAP

- end collar, track roller - double flange for identification see Ref. 16 in illustration

2шт.

S209139

SEAL

- face, track roller - double flange for identification see Ref. 16 in illustration, Includes: Ref. 12 and 13

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rubber, track roller - double flange for identification see Ref. 16 in illustration

2шт.

13

NSS

NOT SOLD SEPARAT

O-RING - seal, track roller - double flange for identification see Ref. 16 in illustration

2шт.

14

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- shaft, track roller - double flange for identification see Ref.16 in illustration

2шт.

15

R33591

SHAFT

- track roller - double flange for identification see Ref. 16 in illustration

1шт.

R33588

ROLLER

HUB ASSEMBLY - track roller - double flange for identification see Ref. 16 in illustration, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

HUB - track roller - double flange for identification see Ref. 6 in illustration

1шт.

17

R33589

BUSHING

- hub, track roller - double flange for identification see Ref. 6 in illustration

2шт.

18

R33557

PLUG

- track roller - double flange for identification see Ref. 6 in illustration

1шт.

Выбрано товаров: 24
