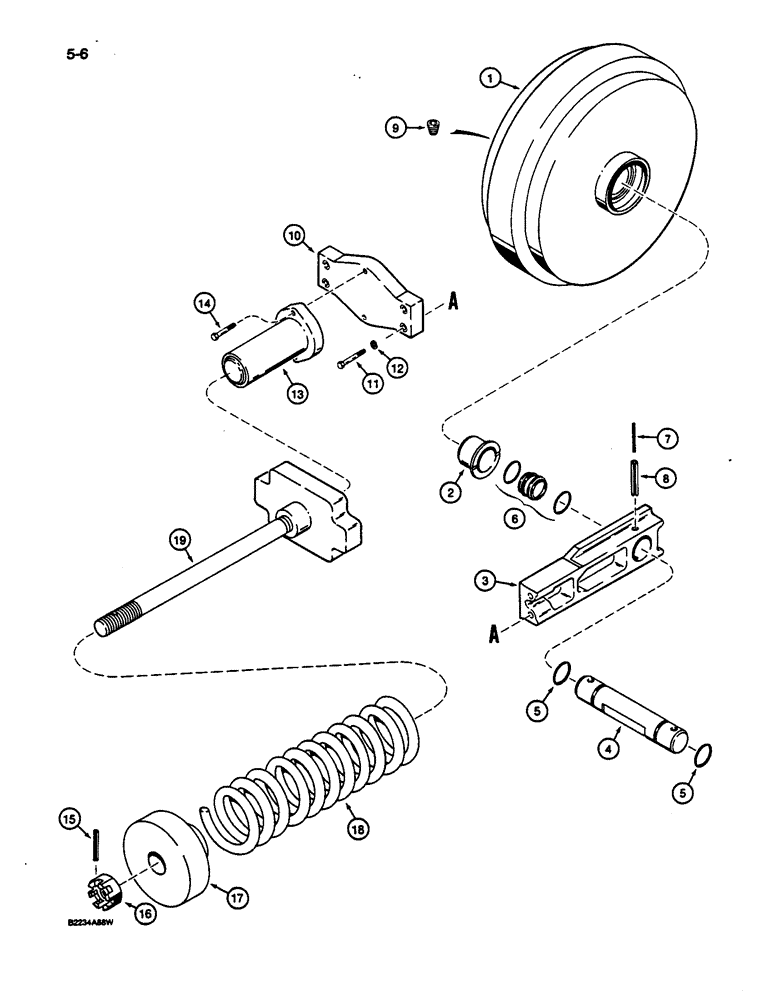

Запчасти Case 1187C (5-06) - TRACK ADJUSTER AND IDLER (11) - TRACKS/STEERING

S300381

FRONT IDLER

IDLER ASSEMBLY - track, Includes: Ref. 1 - 9

2шт.

S300383

WHEEL

ASSEMBLY - idler, Includes: Ref. 1 and 2

1шт.

1

S300389

WHEEL

- idler

1шт.

2

S300390

BUSHING

- wheel

2шт.

3

S300384

SUPPORT

BRACKET - idler support

2шт.

4

S300385

SHAFT

- idler

1шт.

5

S300386

O-RING

- shaft

2шт.

6

R36780

SEAL,100mm ID x 123.7mm OD x 31.8mm Thk

ASSEMBLY - face, idler, includes two metal rings and two rubber seals

2шт.

7

S300387

LOCK

PIN - roller, inner, shaft retaining

1шт.

8

S300388

LOCK

PIN - roller, outer, shaft retaining

1шт.

9

R33557

PLUG

- idler assembly

1шт.

10

S300382

YOKE

- track adjuster

1шт.

11

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 40 mm (replaces 614-12040)

8шт.

12

892-11020

LOCK WASHER,M20

WASHER, LOCK, M20

8шт.

13

S515251

CYLINDER

ASSEMBLY - track adjustment, parts list Figure 5-4

2шт.

14

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, 12 - 1.75 x 45 mm

4шт.

S517352

SPRING

ADJUSTER ASSEMBLY - track, Includes: Ref. 15 - 19

2шт.

15

138-182

LOCK PIN,3/8" x 3", Slotted

PIN, 3/8" x 3", Slotted

1шт.

16

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - heavy hex, slotted, 2 inch NC

1шт.

17

S243118

FLANGE ASSY

FLANGE - spring retaining

1шт.

18

S239958

SPRING

- track tension

1шт.

19

S243117

GUIDE

- tension spring

1шт.
