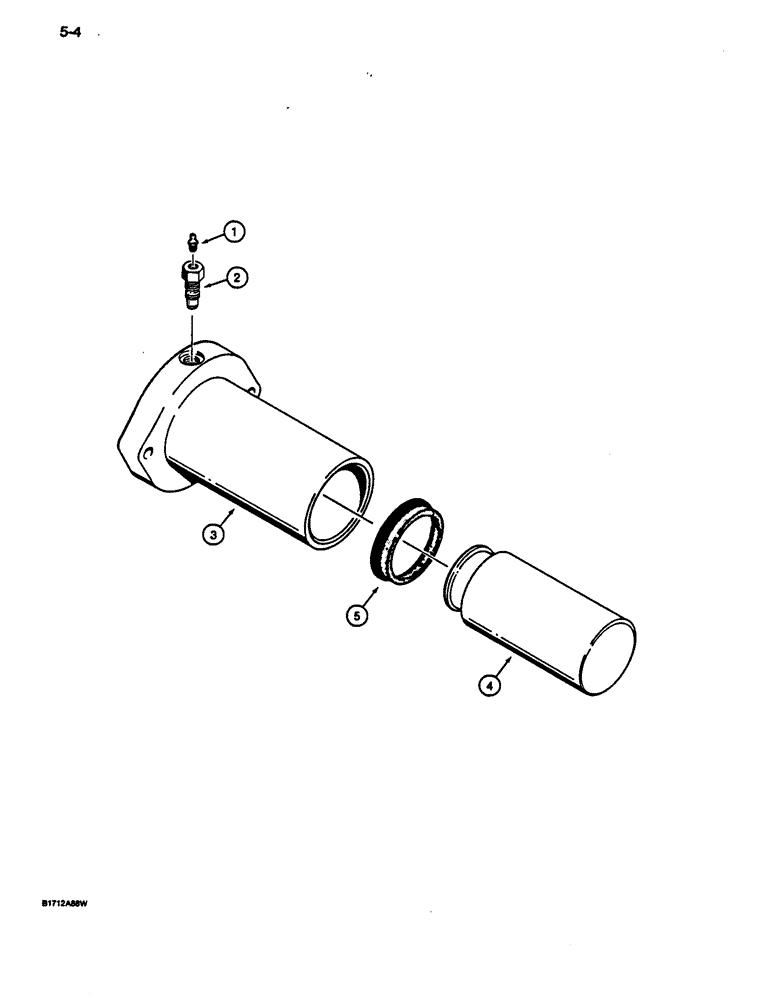

Запчасти Case 1187C (5-04) - TRACK ADJUSTMENT CYLINDER (11) - TRACKS/STEERING

S515251

CYLINDER

ASSEMBLY - track adjustment, for mounting hardware see Figure 5-6, Includes: Ref. 1 - 5

2шт.

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

2

D35287

CHECK VALVE,5/8" - 18

- check, track adjuster

1шт.

3

S515252

CYLINDER,230 mm L

TUBE - cylinder, track adjuster

1шт.

4

S239959

PISTON

- track adjuster cylinder

1шт.

5

S78837

SEAL

- piston

1шт.
