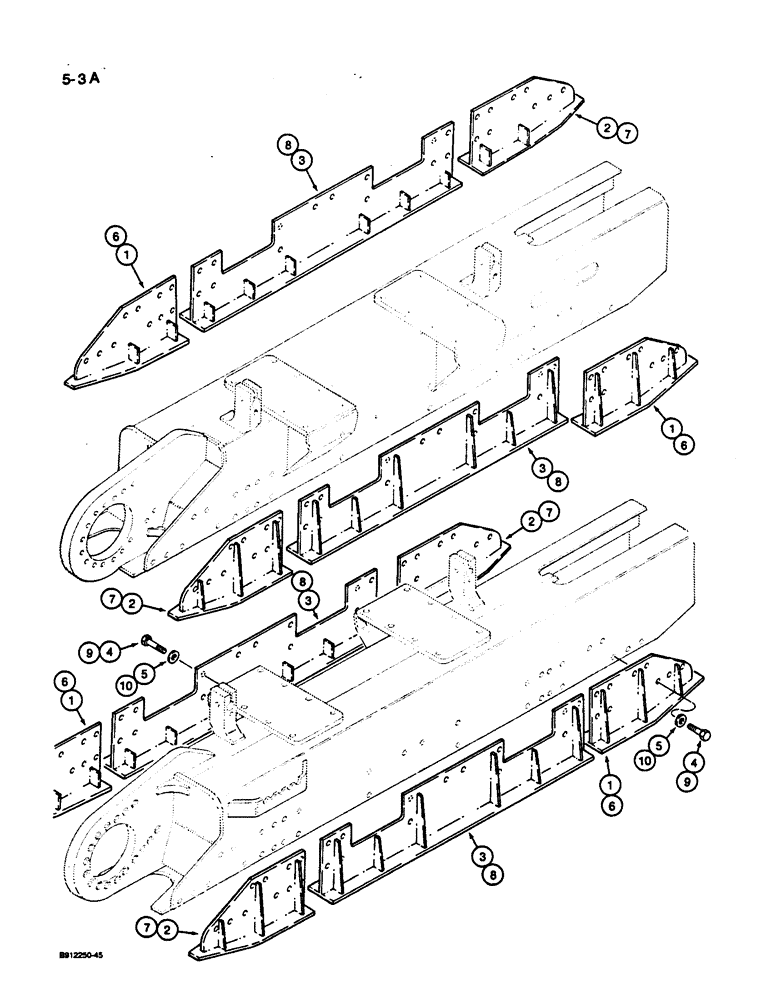

Запчасти Case 1187C (5-03A) - TRACK GUIDES (11) - TRACKS/STEERING

1

S619282

GUARD ASSY.

GUIDE - track frame, right-hand rear inner and front outer, left-hand rear outer and front inner, 600 mm

4шт.

2

S619283

GUARD ASSY.

GUIDE - track frame, right-hand rear outer and front inner, left-hand rear outer and front inner, 600 mm

4шт.

3

S619284

GUARD ASSY.

GUIDE - track frame, center, right-hand and left-hand inner and outer, 600 mm

4шт.

4

413-1632

BOLT,Hex, 1" - 8 x 2", Gr 5

- hex, 1 NC x 2 inch, 600 mm track

136шт.

5

95-11106

WASHER,1" x 2" x .134"

- flat, 1-1/16 x 2 x 1/8 inch, 600 mm track

136шт.

6

S619280

GUARD ASSY.

GUIDE - track frame, right-hand rear inner and front outer, left-hand rear outer and front inner, 750 mm

4шт.

7

S619279

GUARD ASSY.

GUIDE - track guide, right-hand rear outer and front inner, left-hand rear inner and front outer, 750 mm

4шт.

8

S619281

GUARD ASSY.

GUIDE - track frame, center, right-hand and left-hand inner and outer, 750 mm

4шт.

9

413-1632

BOLT,Hex, 1" - 8 x 2", Gr 5

- hex, 1 NC x 2 inch, 750 mm track

136шт.

10

95-11106

WASHER,1" x 2" x .134"

- flat, 1-1/16 x 2 x 1/8 inch, 750 mm track

136шт.
