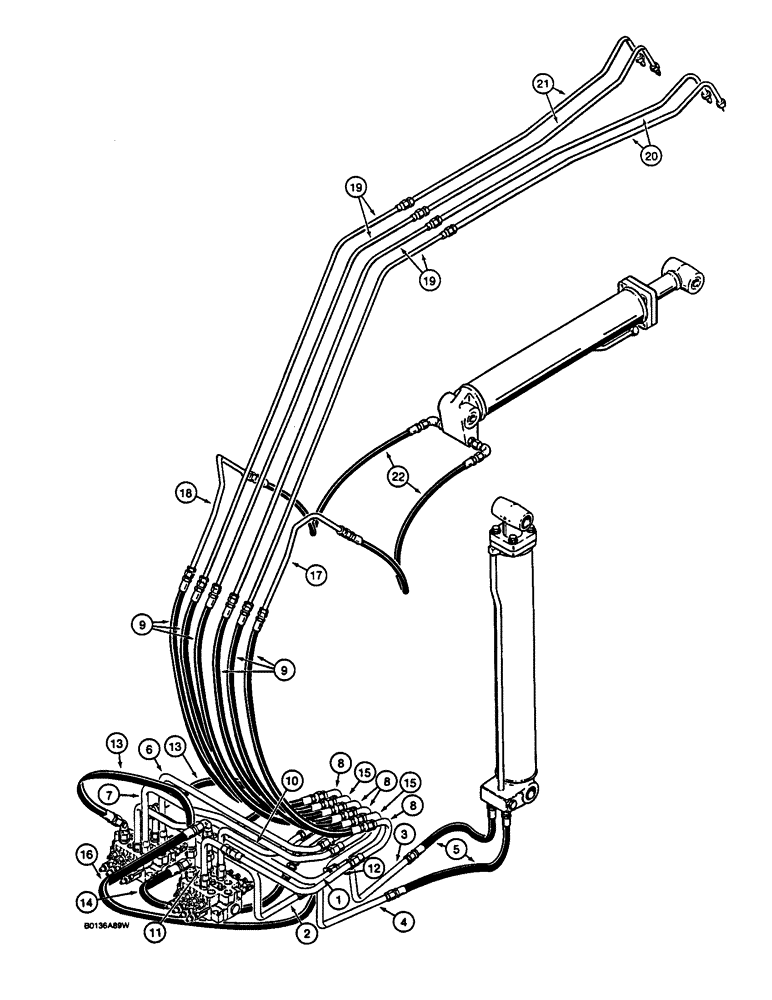

Запчасти Case 1187C (1-16) - PICTORIAL INDEX, ARM, TOOL, AND ATTACHMENT CYLINDER (00) - PICTORIAL INDEX

1

Tube at port "A2" of outside control valve, Figure 8-20

1шт.

2

Tube at port "B2" of outside control valve, Figure 8-20

1шт.

3

Intermediate tube from outside control valve to rod end of boom cylinder, Figure 8-20

1шт.

4

Intermediate tube from outside control valve to closed end of boom cylinder, Figure 8-20

1шт.

5

Hose to boom cylinder, Figure 8-20

1шт.

6

Tube at port "B1" of outside control valve, Figure 8-22

1шт.

7

Tube at port "A1" of outside control valve, Figure 8-22

1шт.

8

Intermediate tube from outside control valve to boom tubelines, Figure 8-22

1шт.

9

Hose to arm, tool, and cylinder attachment tubelines, Figure 8-22

1шт.

10

Tube at port "B2" of inside control valve, Figure 8-22

1шт.

11

Tube at port "A2" of inside control valve, Figure 8-22

1шт.

12

Intermediate tube from inside control valve, Figure 8-22

1шт.

13

Hose at port "A4" and "B4" of outside control valve, Figure 8-24

1шт.

14

Hose at port "A4" of inside control valve, Figure 8-24

1шт.

15

Tube to boom tubelines for attachment cylinder, Figure 8-24

1шт.

16

Hose at port "B4" of inside control valve, Figure 8-24

1шт.

17

Tube to right-hand side of arm cylinder, Figure 8-26

1шт.

18

Tube to left-hand side of arm cylinder, Figure 8-26

1шт.

19

Tube to tool and attachment cylinders, at rear of boom, Figure 8-26

1шт.

20

Tube to tool and attachment cylinders, at top of boom, right-hand side, Figure 8-26

1шт.

21

Tube to tool and attachment cylinders, at top of boom, left-hand side, Figure 8-26

1шт.

22

Hose to right-hand side of arm cylinder, Figure 8-26

1шт.
