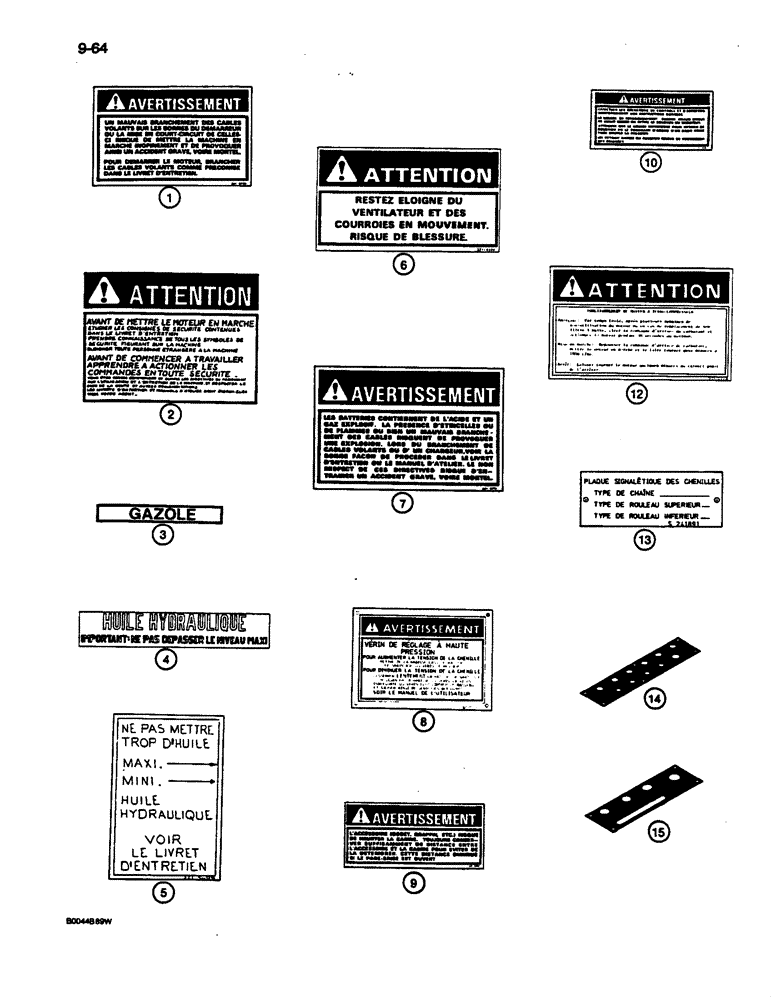

Запчасти Case 1187C (9-64) - DECALS, SPECIAL FRENCH LANGUAGE DECALS (09) - CHASSIS

S619161

KIT

- decal, French, see Figures 9-60 and 9-66 for additional kit components, Includes: Ref. 1 - 11

1шт.

1

321-6720

DECAL

- Warning, jump starting precautions

1шт.

2

321-4020

DECAL

- Warning, safe operation

1шт.

3

321-6146

DECAL

- diesel fuel

1шт.

4

321-5152

DECAL

- hydraulic oil fill

1шт.

5

321-5608

DECAL

- hydraulic oil level

1шт.

6

321-4324

DECAL

- Warning, engine fan

3шт.

7

321-6719

DECAL

- Warning, battery

1шт.

8

321-6509

DECAL

- Warning, track adjustment cylinder

2шт.

9

321-6702

DECAL

- Warning, attachment to cab clearance

1шт.

10

321-6701

DECAL

- Warning, cooling system service

1шт.

11

S23395

SCREW

- drive, No. 7 NC x 5/16 inch, decal plate attaching, not shown

12шт.

12

321-5712

PRODUCT GRAPHIC

DECAL - turbocharger operating precautions, no longer used

1шт.

13

S241891

PLATE

DECAL - identification, track type

1шт.

14

321-6098

PANEL

DECAL - instrument panel, left-hand console

1шт.

15

321-6097

PANEL

DECAL - instrument panel, right-hand console

1шт.

16

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval head Phillips, No. 10 NC x 3/4 inch, not shown

6шт.

17

S117167

CLIP

NUT - U-type, No. 10 NC, used on left-hand console, not shown

6шт.

18

86632551

NUT,#10-24, GB

NUT, LOCK, , Used on RH console, Not shown #10-24, GB

4шт.
