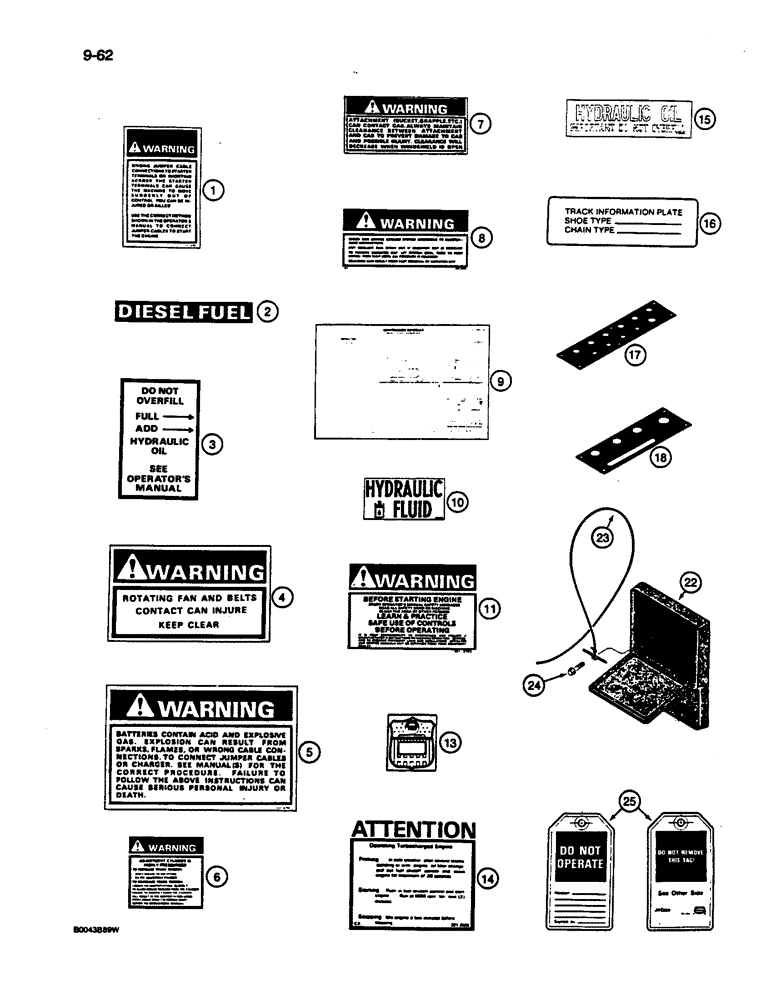

Запчасти Case 1187C (9-62) - DECALS AND OPERATORS MANUAL BOX (09) - CHASSIS

S619160

KIT

- decal, English, see Figures 9-60 and 9-66 for additonal kit components, Includes: Ref. 1 - 12

1шт.

1

321-6872

DECAL

- Warning, wrong jumper cable connections to starter, replaces 321-6718

1шт.

2

321-2601

DECAL

- diesel fuel

1шт.

3

S233480

DECAL

- do not overfill

1шт.

4

321-3596

DECAL

- Warning, rotating fan and belts

3шт.

5

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

6

321-6272

DECAL

- Warning, adjustment cylinder is highly pressurized

2шт.

7

321-6694

DECAL

- Warning, attachment (bucket, grapple, etc.) can contact cab

1шт.

8

321-6672

DECAL

- Warning, check and service cooling system according to maintenance instructions

1шт.

9

S619461

DECAL

- maintenance schedule

1шт.

10

321-6376

DECAL

- hydraulic oil

1шт.

11

321-3705

DECAL

- Warning, before starting engine

1шт.

12

S23395

SCREW

- drive, No. 7 x 5/16 inch, decal plate attaching, not shown

12шт.

13

S242429

DECAL

- PCSA, no longer used

1шт.

14

321-2605

DECAL

- Attention, operating turbocharged engine, no longer used, information in operators manual

1шт.

15

S80209

DECAL

- hydraulic oil, no longer used, order 321-6376, Ref. 11

1шт.

16

S241890

DECAL

- identification, track type, no longer used

1шт.

17

321-6098

PANEL

DECAL - instrument panel, left-hand console

1шт.

18

321-6097

PANEL

DECAL - instrument panel, right-hand console

1шт.

19

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval head Phillips, No. 10 NC x 3/4 inch, not shown

6шт.

20

S117167

CLIP

NUT - U-type, No. 10 - 24 NC, used on left-hand console, not shown

6шт.

21

86632551

NUT,#10-24, GB

NUT, LOCK, , Used on RH console, Not shown #10-24, GB

4шт.

22

S511692

BOX

- operators manual

1шт.

23

A141917

ROPE

CORD -, Serial Range: manual-box

1шт.

24

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch, manual box to cab

2шт.

25

321-4614

TAG

- do not operate

1шт.
