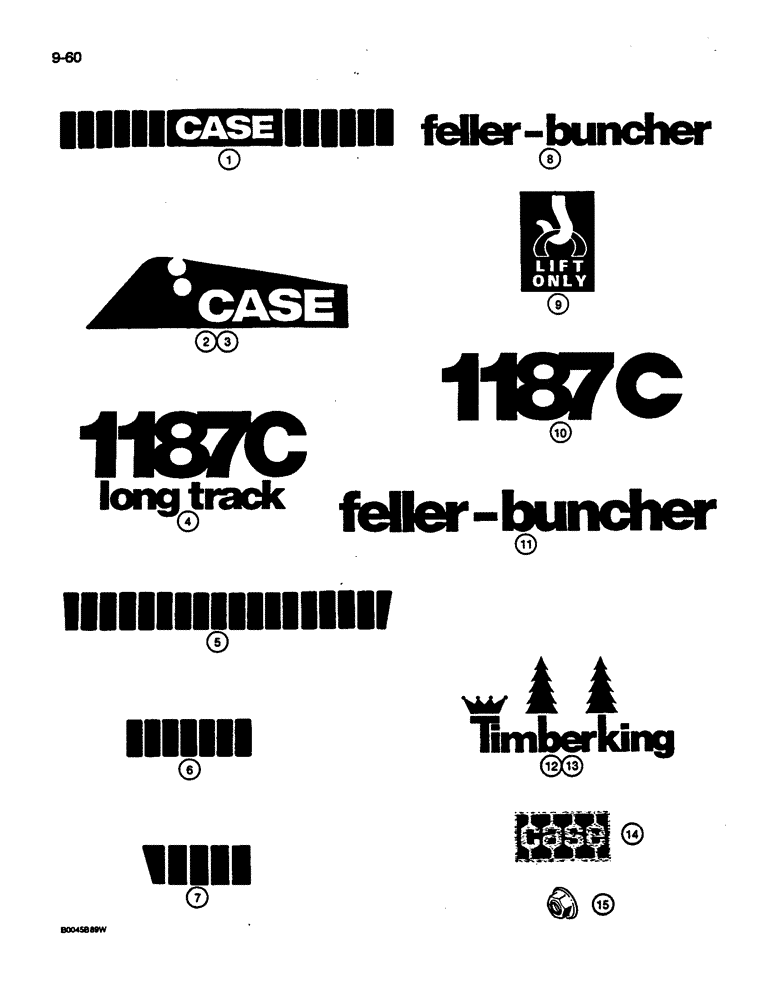

Запчасти Case 1187C (9-60) - DECALS (09) - CHASSIS

S619160

KIT

- decal, English, see Figures 9-62 and 9-66 for additional kit components, Includes: Ref. 1 - 9

1шт.

S619161

KIT

- decal, French, see Figure 9-64 and 9-66 for additional kit components, Includes: Ref. 1 - 9

1шт.

1

S515844

DECAL

- Case, with treads, rear

1шт.

2

S617594

DECAL

- Case, right-hand side of boom

1шт.

3

S617595

DECAL

- Case, left-hand side of boom

1шт.

4

S517962

DECAL

- 1187C long track

2шт.

5

S516085

DECAL

- treads, side panels, cut and trim as required

2шт.

6

S241197

DECAL

- treads, front cover panel, right-hand side

1шт.

7

S241805

DECAL

- treads, side panel, right-hand rear

1шт.

8

S516088

DECAL

- Feller-Buncher, on attachment sides

2шт.

9

321-3587

DECAL

- lift only

4шт.

10

S517214

DECAL

- 1187C, right-hand and left-hand side, no longer used, order S517962 decal, Ref. 4

2шт.

11

S515936

DECAL

- feller-buncher, on side panels, no longer used

2шт.

12

S619722

DECAL

- Timberking, 265 x 568 mm

1шт.

13

S619961

DECAL

- Timberking, 215 x 460 mm

1шт.

14

321-4739

EMBLEM

- Case, on cab left-hand side behind door

1шт.

15

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push on type, 1/4 inch, emblem attaching

2шт.
