Запчасти Case 1187C (9-58) - LOGGER CAB GLASS (09) - CHASSIS

1

REF

INSTRUCTION

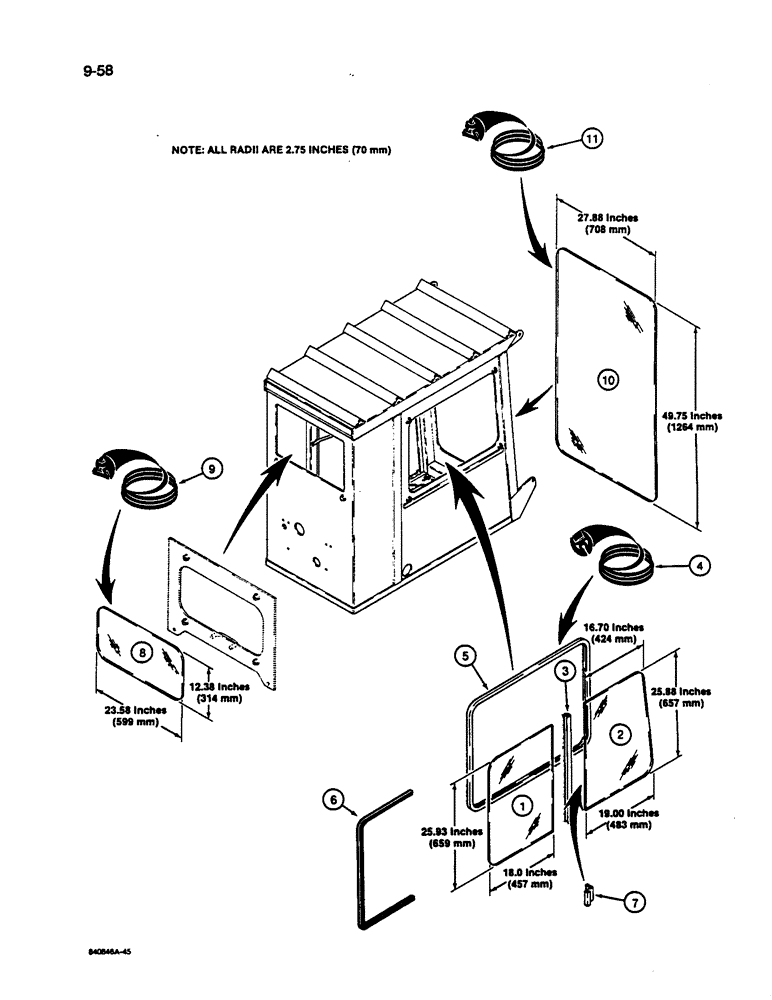

GLASS - cab, door and right-hand side, rear, stationary, see Figure 9-58 for dimensions

2шт.

All glass to be obtained from local source and must be 7/32 inch (6 mm) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673A).

1шт.

2

REF

INSTRUCTION

GLASS - cab, door and right-hand side, front, moveable, see Figure 9-58 for dimensions

2шт.

All glass to be obtained from local source and must be 7/32 inch (6 mm) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673A).

1шт.

3

S119376

SEAL - wiper, attaches to stationary glass, each side 26 inch (660 mm) long, cut from S118385X bulk, see below

2шт.

4

S119373

MOULDING - cab frame to glass channel, door and cab side, each side 10 ft (3048 mm) long, cut from S118634X bulk, see below

2шт.

5

S119374

SEAL, GLASS

CHANNEL - glass, rubber with felt lining, each side 10 ft (3048 mm) long, use two pieces of S118387X and cut to required length, see below

2шт.

6

S119375

SEAL - rubber, rear stationary glass, each side 5 ft (1524 mm) long, cut from S118386X bulk, see below

2шт.

7

S118207

HANDLE

- pull, side window

2шт.

8

REF

INSTRUCTION

GLASS - cab, rear window, see Figure 9-58 for dimensions

1шт.

All glass to be obtained from local source and must be 7/32 inch (6 mm) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673A).

1шт.

9

S119379

MOULDING - rear window glass, 68-1/2 inch (1740 mm) long, cut from S118384X bulk, see below

1шт.

10

REF

INSTRUCTION

GLASS - windshield, see Figure 9-58 for dimensions

1шт.

All glass to be obtained from local source and must be 7/32 inch (6 mm) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673A).

1шт.

11

S119377

MOULDING - windshield glass, 154 inch (3912 mm) long, cut from S118384X bulk, see below

1шт.

S118384X

SEAL

MOULDING - glass, bulk roll, 50 ft (15.24 m) long

1шт.

S118385X

SEAL

- glass wiper, bulk roll, 6 ft (1.83 m) long

1шт.

S118386X

SEAL

- glass, 50 ft (15.24 m) long

1шт.

S118387X

SEAL

CHANNEL - glass, bulk roll, 9 ft (2.74 m) long

1шт.

S118634X

SEAL

MOULDING - glass, bulk roll, 50 ft (15.24 m) long

1шт.
