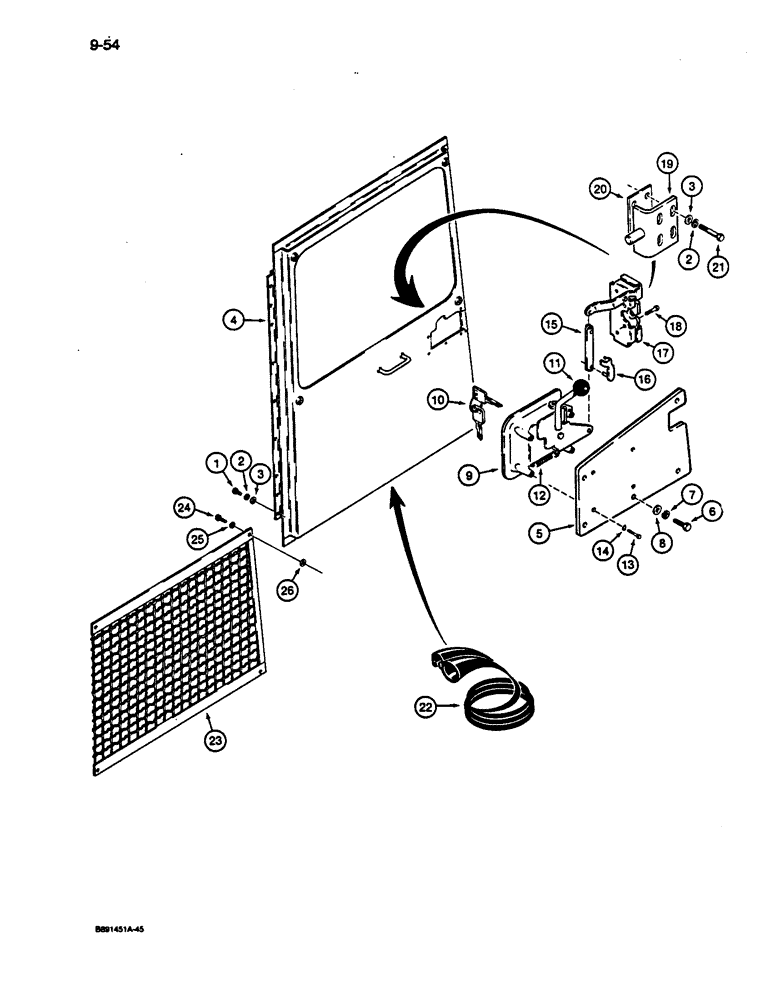

Запчасти Case 1187C (9-54) - LOGGER CAB (09) - CHASSIS

S956959

CAB

ASSEMBLY - logger, also includes parts from Figure 9-52, door, door seal and window guard, Includes: Ref. 1 - 21

1шт.

1

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Door, door seal and window guard Hex, 3/8"-16 x 5/8", G5, Full Thd

9шт.

2

492-11038

LOCK WASHER,3/8"

door, door seal and window guard 3/8"

13шт.

3

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, door, door seal and window guard

13шт.

4

S619079

DOOR

- cab, door, door seal and window guard

1шт.

5

S517147

PLATE

- mounting, latch to door, door seal and window guard

1шт.

6

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, door, door seal and window guard

5шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Door, door seal and window guard 1/4"

5шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), Door, Door seal and Window guard 1/4", SAE

5шт.

9

S619075

LATCH

HANDLE AND LOCK ASSEMBLY - door closure, door seal and window guard, Includes: Ref. 10 - 12

1шт.

10

D88772

KEY

- door lock, set of two, door seal and window guard

1шт.

11

70213

KNOB

- handle, door, door seal and window guard

1шт.

12

N14815

SPRING

- handle return, door, door seal and window guard

1шт.

13

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex, No. 10 NC x 3/4 inch, door, door seal and window guard

4шт.

14

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16"), Door, Door seal and Window guard Int Tooth, #10

4шт.

15

S517137

LINK

- connecting, handle to latch, door, door seal and window guard

1шт.

16

S242927

PIN

- retainer, connecting link, door, door seal and window guard

2шт.

17

S517136

LATCH ASSY.

LATCH - door closure, door seal and window guard

1шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch, door, door seal and window guard

4шт.

19

S242940

ANGLE

STRIKER - door latch, door seal and window guard

1шт.

20

S242947

SHIM,.059" Thk

Latch striker, door, door seal and window guard .059" Thk

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, door, door seal and window guard

4шт.

22

S120341

SEAL

- cab door to cab, 153 inch (3886 mm) long

1шт.

23

S515176

GUARD

- side window, in door, seal used with cab

1шт.

24

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, guard and seal used with cab

4шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Guard and seal used with cab 1/2"

4шт.

26

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Used as a spacer, guard and seal used with cab 1/2", SAE

12шт.
