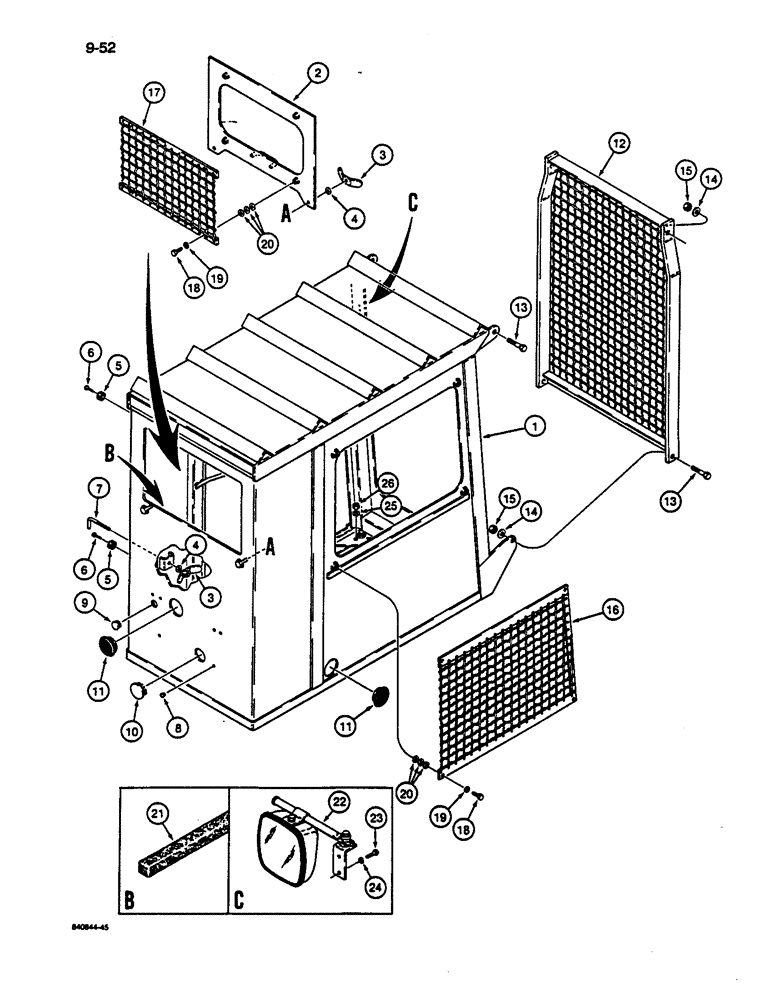

Запчасти Case 1187C (9-52) - LOGGER CAB, CAB AND WINDOW GUARDS (09) - CHASSIS

S956959

CAB

ASSEMBLY - logger, also includes parts on Figure 9-54, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

CAB - logger

1шт.

2

S508190

FRAME

- cab rear window

1шт.

3

S221281

HANDLE

- retaining, rear window and door

3шт.

4

95-11053

WASHER,1/2"

- flat, 17/32 x 1-1/16 x 3/32 inch

3шт.

5

S63621

BUMPER

- rubber, Serial Range: door-cab

2шт.

6

173-116

SCREW,Sl Rnd Hd, #12 - 24 x 1/2"

- machine, round head slotted, No. 12 NC x 1/2 inch

2шт.

7

S94142

LATCH

- door retaining, open

1шт.

8

205-15

HOLE PLUG BUTTON,3/8"

PLUG - button, 3/8 inch, cab rear

6шт.

9

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2 inch, cab rear

1шт.

10

205-72

HOLE PLUG BUTTON,3"

PLUG - button, 3 inch, cab rear

1шт.

11

S117638

PLUG

- special, 3-3/4 inch, cab rear and right side

2шт.

12

S618301

GUARD ASSY.

GUARD - windshield

1шт.

13

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

4шт.

14

95-11106

WASHER,1" x 2" x .134"

- flat, 1-1/16 x 2 x 1/8 inch

4шт.

15

131-20

LOCK NUT,1"-8, GB

NUT - light hex, self-locking, 1 inch NC

4шт.

16

S515179

GUARD

- right-hand side window

1шт.

17

S221288

GUARD ASSY.

GUARD - rear window

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

20

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Use as shims 1/2", SAE

20-24шт.

21

S119378

SEAL - 98 inch (2489 mm) long, rear window frame to cab, cut from S120316X bulk, see below

1шт.

22

S515469

MIRROR

- cab, rear view

1шт.

23

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

24

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Included with S956959 cab assembly 1/4"

2шт.

25

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

10шт.

26

131-208

SPECIAL NUT,1/2"-13

NUT - heavy hex, self-locking, 1/2 inch NC

10шт.

S120316X

SEAL

- foam, adhesive-backed, bulk roll, 25 ft (7.62 m) long

1шт.
