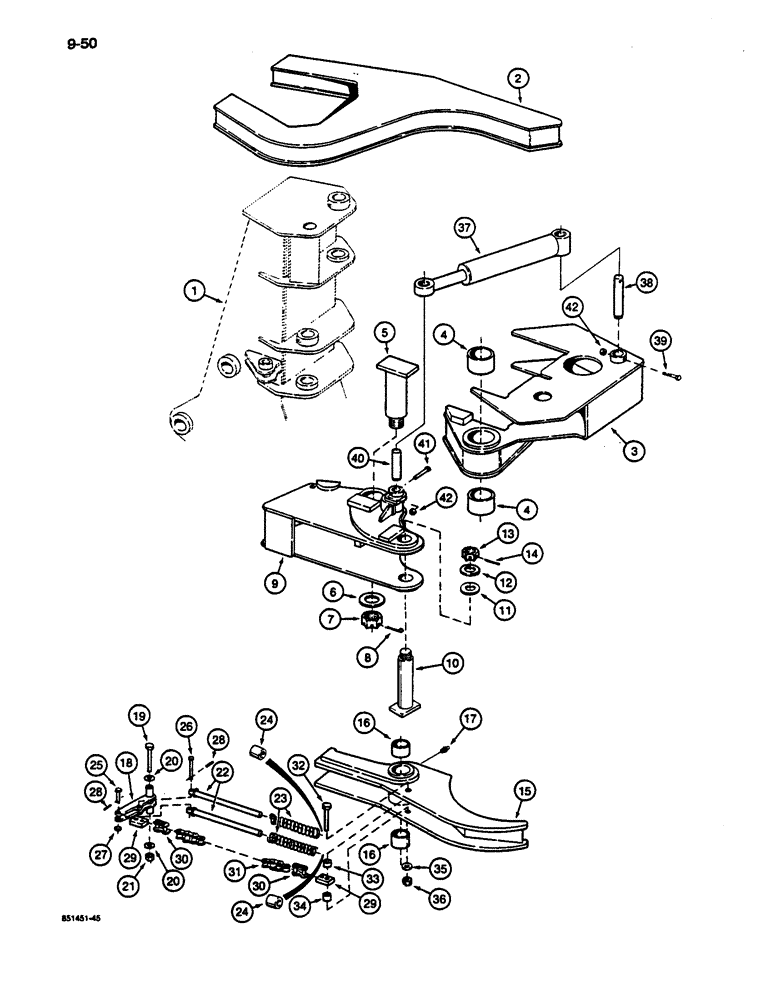

Запчасти Case 1187C (9-50) - COLLECTOR FRAME AND ARMS (09) - CHASSIS

S956825

FRAME

ASSEMBLY - main, Feller-Buncher with collector, Includes: Ref. 1 - 4

1шт.

1

S952911

GRIPPER

FRAME - main, Feller-Buncher without collector

1шт.

2

S606648

ARM

- stationary, collector, welded to main frame

1шт.

3

S606646

FRAME

- collector arm, welded to main frame, Includes: Ref. 4

1шт.

4

S202190

BUSHING

- primary arm at collector arm frame

2шт.

5

S226271

PIN ASSY.

PIN - primary arm to collector arm frame

1шт.

6

95-81199

WASHER,2 1/8" x 4 1/2" x .179"

- flat, 2-1/8 x 4-1/2 x 3/16 inch

1шт.

7

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - heavy hex, slotted, 2 inch NC

1шт.

8

32-1656

COTTER PIN,1/4" x 3 1/2"

Pin, Split (Cotter), 1/4" x 3 1/2"

1шт.

9

S606448

ARM

- collector, primary

1шт.

10

S226268

PIN ASSY.

PIN - secondary arm to primary arm

1шт.

11

95-81199

WASHER,2 1/8" x 4 1/2" x .179"

- flat, 2-1/8 x 4-1/2 x 3/16 inch

1шт.

12

95-21162

WASHER,1 1/2" x 3 1/2" x .18"

- flat, 1-5/8 x 3-1/2 x 3/16 inch

1шт.

13

25-3024

SLOTTED NUT,1 1/2"-6, G5, Hvy

NUT - heavy hex, slotted, 1-1/2 inch NC

1шт.

14

132-82

COTTER PIN,5/32" x 3"

Pin, Split (Cotter), 5/32" x 3"

1шт.

S508580

ARM ASSY.

ARM ASSEMBLY - collector, secondary, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

ARM - collector

1шт.

16

S202130

THREADED BUSHING

BUSHING - secondary arm to primary arm

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

18

S226267

LEVER ASSY.

LEVER - secondary arm

1шт.

19

413-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

- hex, 1/2 NC x 6-1/2 inch

1шт.

20

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

21

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

22

S226266

GUIDE

- spring

2шт.

23

S242073

SPRING

- lever to secondary arm

2шт.

24

S120448

SPACER

- spring

2шт.

25

S10809

PIN

- clevis, chain, Serial Range: retainer-lever

1шт.

26

S61972

PIN

- clevis, spring, Serial Range: guides-lever

1шт.

27

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

28

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

2шт.

29

S97577

LUG

RETAINER - roller chain

2шт.

30

S103147

LINK

- chain, master

2шт.

31

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, 33 pitches

1шт.

32

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

33

S70674

SPACER

- chain retainer, upper

1шт.

34

S72151

SPACER

- chain retainer, lower

1шт.

35

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

36

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

37

S618845

CYLINDER ASSY.

CYLINDER ASSEMBLY - collector arm, parts list Figure 8-84

1шт.

38

S226291

PIN

- collector arm, Serial Range: cylinder-frame

1шт.

39

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

40

S226290

PIN

- collector, Serial Range: cylinder-arm

1шт.

41

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

1шт.

42

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.
