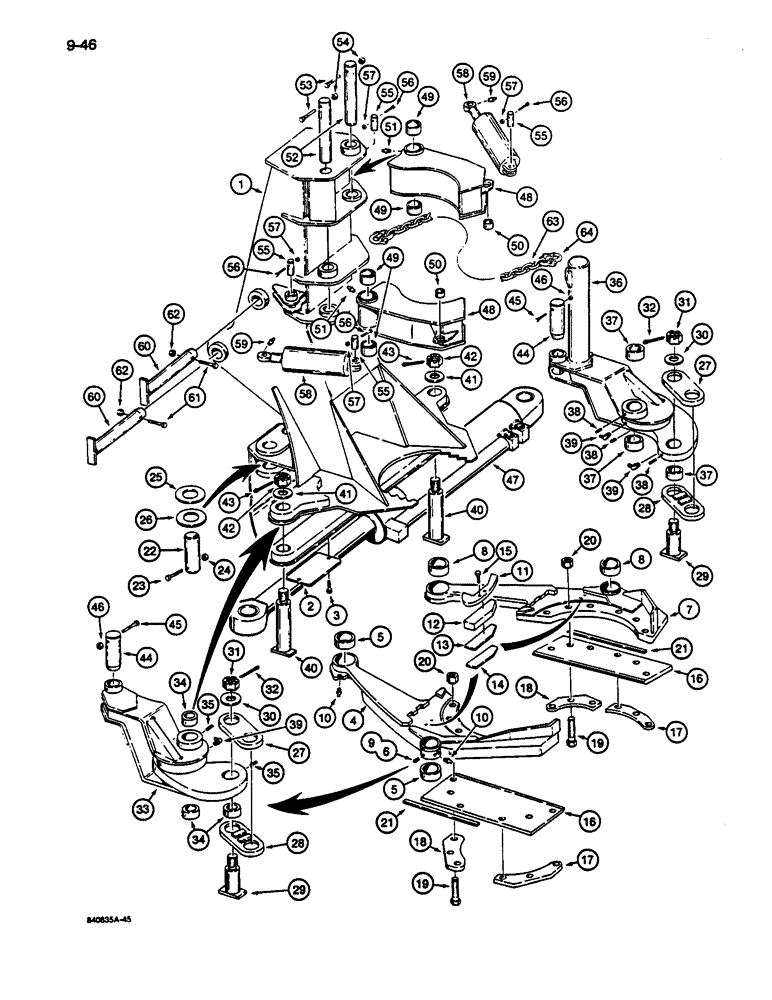

Запчасти Case 1187C (9-46) - FELLER BUNCHER FRAME, GRAB ARMS AND SHEAR ARMS (09) - CHASSIS

1

S956825

FRAME

- main, Feller-Buncher with collector, not shown, see Figure 9-50

1шт.

1

S952911

GRIPPER

FRAME - main, feller-Buncher without collector

1шт.

2

S92310

COVER

- access, lower

1шт.

3

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

S952913

ARM ASSY.

ARM ASSEMBLY - shear, right-hand, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

ARM - shear

1шт.

5

S91696

BUSHING

- shear arm

2шт.

6

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cone

4шт.

S952914

ARM ASSY.

ARM ASSEMBLY - shear, left-hand, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

ARM - shear

1шт.

8

S91696

BUSHING

- shear arm

2шт.

9

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cone

4шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

4шт.

11

S242075

HOLDER

RETAINER - wear bar

2шт.

12

S92370

BAR

- wear

2шт.

13

S92316

SHIM

- wear bar, .060 inch (1.5 mm) thick

1шт.

14

S92317

SHIM

- wear bar, .125 inch (3 mm) thick

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

16

S219696

KNIFE

- shear arm

2шт.

17

S219697

SUPPORT

- shear arm knife, front

2шт.

18

S219698

SUPPORT

- shear arm knife, rear

2шт.

19

326-1680

BOLT,Hex, 1" - 8 x 5", Gr 8

12шт.

20

25-1616

NUT,1"-8, G5, Hvy

- hex, 1 inch NC

12шт.

21

S92320

SHIM

- knife backup, .120 inch (3 mm) thick

1шт.

22

S219699

PIN

- shear, Serial Range: arm-frame

2шт.

23

13-1292

BOLT,Hex, 3/4" - 10 x 5-3/4", Gr 5

2шт.

24

131-450

NUT,3/4"-10

NUT - heavy hex, self-locking, 3/4 inch NC

2шт.

25

S88568

SHIM

WASHER - shear arm to frame, .060 inch (1.5 mm) thick

1шт.

26

S88569

SHIM

WASHER - shear arm to frame, .090 inch (2.3 mm) thick

1шт.

27

S92321

LINK

- shear arm to lever, upper

2шт.

28

S219700

LINK ASSY.

LINK - shear arm to lever, lower

2шт.

29

S219701

PIN ASSY.

PIN - shear arm to link and, Serial Range: link-lever

4шт.

30

95-81199

WASHER,2 1/8" x 4 1/2" x .179"

- flat, 2-1/8 x 4-1/2 x 3/16 inch

4шт.

31

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - heavy hex, slotted, 2 inch NC

4шт.

32

32-1656

COTTER PIN,1/4" x 3 1/2"

Pin, Split (Cotter), 1/4" x 3 1/2"

4шт.

S602451

LEVER ASSY.

LEVER ASSEMBLY - shear cylinder, right-hand, Includes: Ref. 33 - 35

1шт.

33

NSS

NOT SOLD SEPARAT

LEVER - shear cylinder

1шт.

34

S91696

BUSHING

- lever

3шт.

35

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cone

6шт.

S602452

LEVER ASSY.

LEVER ASSEMBLY - shear cylinder, left-hand, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

LEVER - shear cylinder

1шт.

37

S91696

BUSHING

- lever

3шт.

38

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cone

6шт.

39

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

4шт.

40

S219710

PIN ASSY.

PIN - shear cylinder, Serial Range: lever-frame

2шт.

41

95-81199

WASHER,2 1/8" x 4 1/2" x .179"

- flat, 2-1/8 x 4-1/2 x 3/16 inch

2шт.

42

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - heavy hex, slotted, 2 inch NC

2шт.

43

32-1656

COTTER PIN,1/4" x 3 1/2"

Pin, Split (Cotter), 1/4" x 3 1/2"

2шт.

44

S92326

PIN

- shear, Serial Range: cylinder-lever

2шт.

45

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

46

131-460

LOCK NUT,5/8"-11

NUT - heavy hex, self-locking, 5/8 inch NC

2шт.

47

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, shear arm, parts list Figure 8-80

1шт.

48

S504968

ARM ASSY.

ARM ASSEMBLY - grab, Includes: Ref. 49 and 50

2шт.

49

S214652

BUSHING

-, Serial Range: arm-frame

2шт.

50

S23796

BUSHING

-, Serial Range: arm-cylinder

1шт.

51

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

52

S89283

PIN

- grab arm to main frame

2шт.

53

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

2шт.

54

131-64

LOCK NUT,5/8"-11, GC

NUT - light hex, self-locking, 5/8 inch NC

2шт.

55

S46134

PIN,37.95mm OD x 98.55mm L

- grab arm cylinder to grab arm and main frame

4шт.

56

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

57

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

4шт.

58

S618357

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, grab arm, parts list Figure 8-82

2шт.

59

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

60

S220251

PIN ASSY.

PIN - feller buncher to tool boom

2шт.

61

26-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex, 5/8 NC x 6 inch, grade 8

2шт.

62

131-460

LOCK NUT,5/8"-11

NUT - heavy hex, self-locking, 5/8 inch NC

2шт.

63

REF

INSTRUCTION

CHAIN - guard post to frame, 22 inch (559 mm) long, cut from S120358 bulk chain, see below

1шт.

64

S120383

LINK

- connecting, chain to post and frame

2шт.

S120358

CHAIN (AG)

CHAIN - bulk roll, 3/8 inch diameter links, grade 80

1шт.
