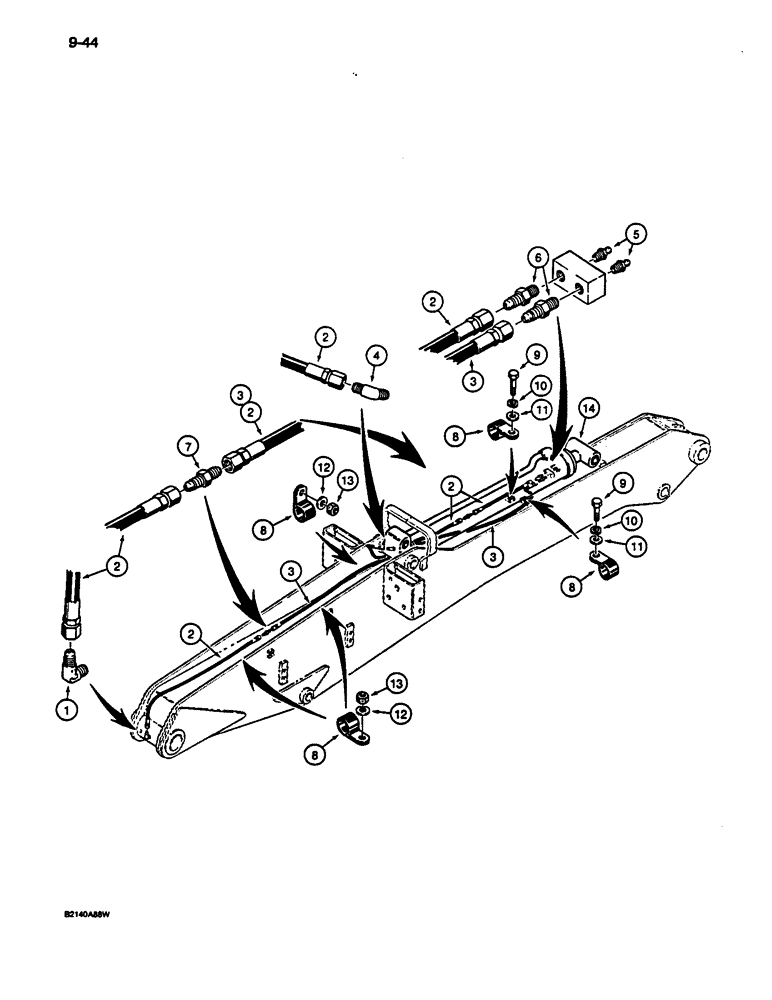

Запчасти Case 1187C (9-44) - ARM LUBRICATION SYSTEM (09) - CHASSIS

1

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT

1шт.

2

S77467

HOSE

- 38 inch (965 mm) long, lubrication

3шт.

3

S120387

HOSE ASSY.

HOSE - 100 inch (2540 mm) long, lubrication

1шт.

4

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree, 7/16-20 flare x 1/8 inch PT

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

6

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

2шт.

7

218-431

UNION,7/16" - 20 Male JIC x 7/16" - 20 Male JIC

CONNECTOR - straight, 7/16-20 inch flare

2шт.

8

T42284

CLAMP

- hose

6шт.

9

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch, used with Allied Saw only

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with Allied Saw only 1/2"

2шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Used with Allied Saw only 1/2", SAE

2шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

13

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - tool, see Figures 8-74 or 8-76 for correct cylinder and components

1шт.
