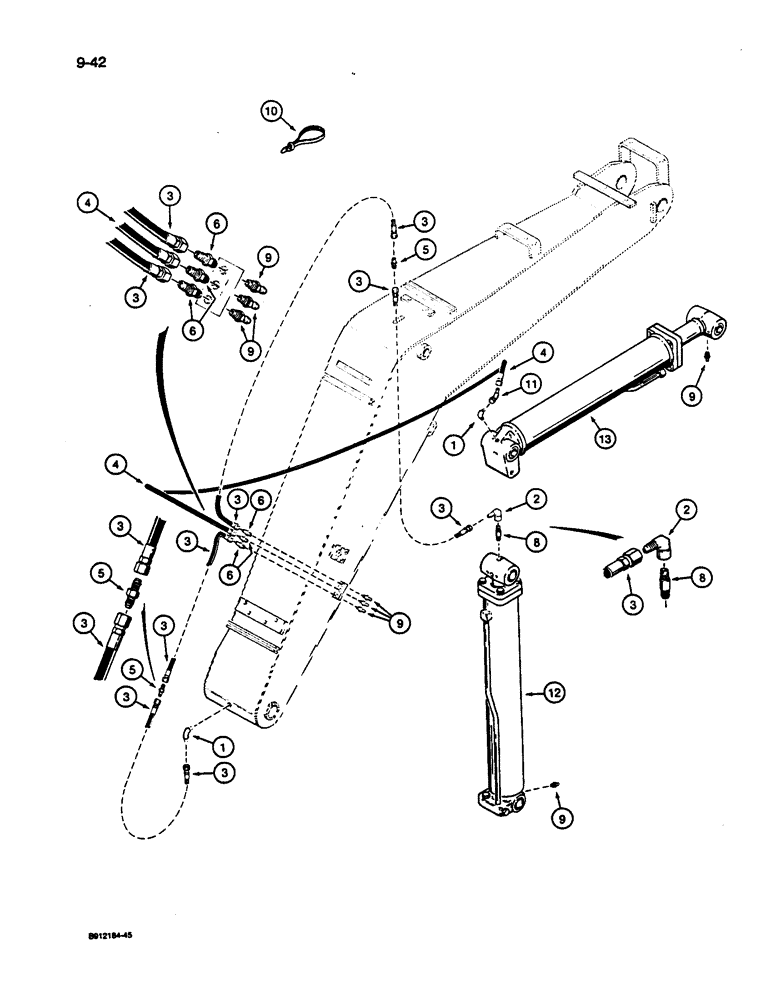

Запчасти Case 1187C (9-42) - BOOM LUBRICATION SYSTEM (09) - CHASSIS

1

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT

2шт.

2

218-511

ELBOW,90º, 7/16"-20, 37º x 1/8"-27, Fem NPTF

- 90 degree, 7/16-20 flare x 1/8 inch female PT

1шт.

3

S77467

HOSE

- 38 inch (965 mm) long, lubrication

4шт.

4

S120387

HOSE ASSY.

HOSE - 100 inch (2540 mm) long, lubrication

1шт.

5

218-431

UNION,7/16" - 20 Male JIC x 7/16" - 20 Male JIC

CONNECTOR - straight, 7/16-20 inch flare

2шт.

6

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

3шт.

8

221-1908

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - straight, 1/8 PT x 2 inch, extra strong

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

5шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

11

218-5170

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Female JIC

1шт.

12

S957052

CYLINDER

ASSEMBLY - boom, parts list Figure 8-72

1шт.

13

S956911

CYLINDER

ASSEMBLY - arm, parts list Figure 8-74

1шт.
