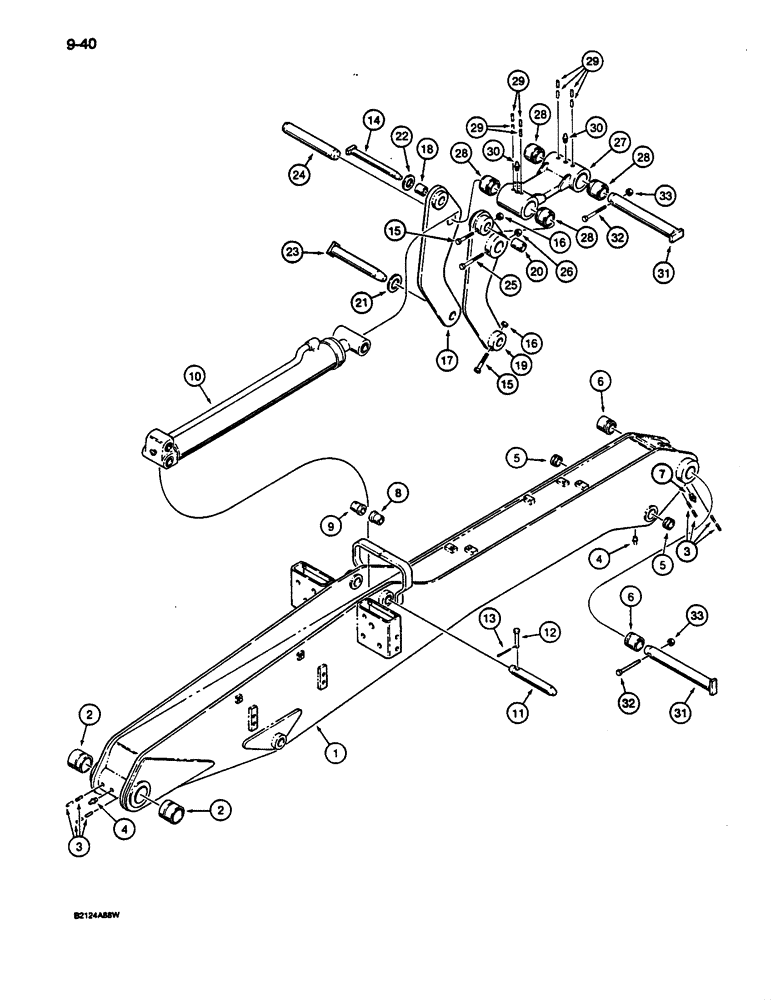

Запчасти Case 1187C (9-40) - ARM AND RELATED PARTS (09) - CHASSIS

S957076

BOOM

ARM ASSEMBLY - logger, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

ARM - logger

1шт.

2

S88549

BUSHING

- at boom

2шт.

3

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cone

8шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

5

S202134

BUSHING

- at attachment bracket

2шт.

6

S87929

BUSHING

-, Serial Range: arm-attachment

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

8

S89355

BUSHING

- arm to tool cylinder, right-hand side, used with S242503 pin only

1шт.

9

S120090

BUSHING

- arm to tool cylinder, left-hand side, used with S242503 pin only

1шт.

10

G107679

CYLINDER

ASSEMBLY - tool, used on models with Feller-Buncher, parts list Figure 8-76

1шт.

10

S956911

CYLINDER

ASSEMBLY - tool, used on models with Allied Saw, parts list Figure 8-74

1шт.

11

S242503

PIN

- tool cylinder to arm, used on models with Feller-Buncher only

1шт.

11

S242502

PIN

- tool cylinder to arm, used on models with Allied Saw only

1шт.

12

S61972

PIN

- clevis, tool cylinder, Serial Range: pin-arm

1шт.

13

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

14

S243625

PIN

- 1-1/2 inch diameter, tool cylinder to attachment bracket, used on models with Feller-Buncher only, Refs. 18 and 20 required with this pin

1шт.

14

S204746

PIN

- 2 inch diameter, tool cylinder to attachment bracket, used on models with Allied Saw only, bushings are not required

1шт.

15

413-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

- hex, 1/2 NC x 4-3/4 inch

2шт.

16

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

S517124

BRACKET

ASSEMBLY - attachment, tool cylinder and link to arm, left-hand, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

BRACKET - attachment

1шт.

18

S89356

BUSHING

- bracket, used with S243625 pin only

1шт.

S517125

BRACKET

ASSEMBLY - attachment, tool cylinder and link to arm, right-hand, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

BRACKET - attachment

1шт.

20

S89357

SPACER

BUSHING - bracket, used with S243625 pin only

1шт.

21

95-81199

WASHER,2 1/8" x 4 1/2" x .179"

- flat, 2-1/8 x 4-1/2 x 3/16 inch

1-2шт.

22

95-21162

WASHER,1 1/2" x 3 1/2" x .18"

- flat, 1-5/8 x 3-1/2 x 3/16 inch

1шт.

23

S204746

PIN

- attachment, Serial Range: bracket-arm

1шт.

24

S89283

PIN

- attachment, Serial Range: bracket-link

1шт.

25

26-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex, 5/8 NC x 6 inch, grade 8

1шт.

26

131-460

LOCK NUT,5/8"-11

NUT - heavy hex, self-locking, 5/8 inch NC

1шт.

S517121

LINK ASSY.

LINK ASSEMBLY - bracket to attachment, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

LINK -, Serial Range: bracket-attachment

1шт.

28

S87929

BUSHING

- link, at attachment

4шт.

29

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cone

8шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

31

S220251

PIN ASSY.

PIN - boom and, Serial Range: link-attachment

2шт.

32

26-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex, 5/8 NC x 6 inch, grade 8

2шт.

33

131-460

LOCK NUT,5/8"-11

NUT - heavy hex, self-locking, 5/8 inch NC

2шт.
